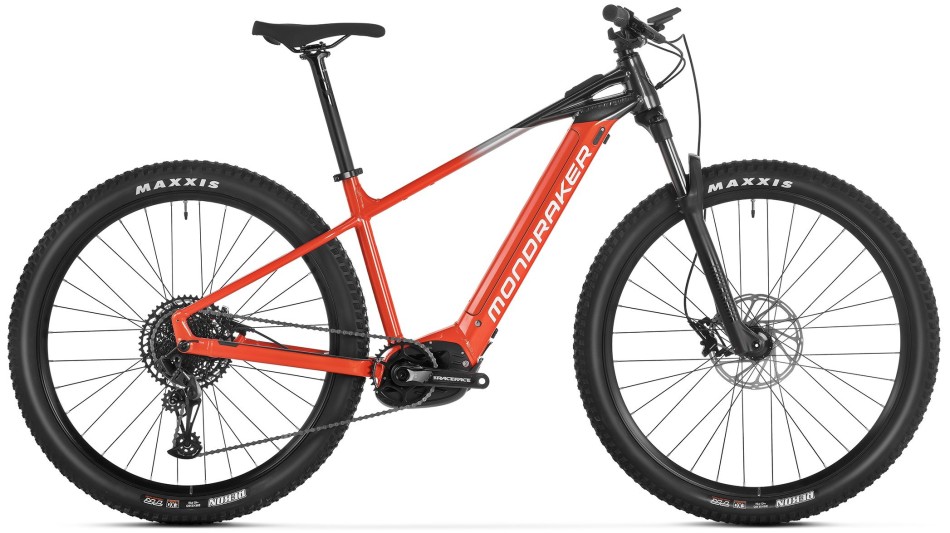

Mondraker Prime G4 2025 Red/Silver eBike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
If you want to enter the world of light ebikes with a powerful motor, this is the bike for you.
With its optimized Bosch Performance Line CX Cruise GEN4 motor offering ideal pedaling assistance, you can use the wireless Mini Remote, the System Controller and the Intuvia 100 display to manage the option modes and the range of the battery.
Limitless and offering a world of possibilities, we’ve adapted our FORWARD GEOMETRY so that you can spend as many hours as you wish on the PRIME 29. Standout characteristics are comfort and light weight, which combine to let you have loads of fun on any type of terrain.
Its RockShox Recon Silver RL fork with 120mm of travel opens up your options for adventure and will let you challenge yourself wherever you choose to ride.
Specification
Frame | Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12×148mm rear axle, integrated dropout speed sensor |
Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15×110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
Grips | Onoff Twin, 1lock-on, 135mm |
Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
Saddle | MDK ebike black |
Front Brake | Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Spokes | Mavic J-bend double butted, contactless lacing |
Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
Front Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Rear Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Crankset | Race Face Aeffect ebike, 165mm |
Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
Chain | SRAM SX Eagle, 12s, Powerlock |
Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
Cassette | SRAM PG-1210, 11-50T, 12s |
Derailleur Hanger | Mondraker M068 |
Display | Bosch System Controller / Bosch Intuvia 100 |
Remote | Bosch Mini Remote |
Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 Smart System |
Battery | Bosch Powertube 625Wh Smart System |
Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
S | 165cm (5’5”) | 170cm (5’7”) |
M | 170cm (5’7”) | 180cm (5’11”) |
L | 175cm (5’9”) | 187cm (6’1”) |
XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | XS | S | M | L | XL |
A – Seat Tube Length | 380mm | 390mm | 430mm | 470mm | 510mm |
B – Top Tube Length | 600mm | 615mm | 645mm | 670mm | 700mm |
C – Bottom Bracket Drop | -70mm | -70mm | -70 mm | -70mm | -70mm |
D – Bottom Bracket Height | 308mm | 308mm | 308mm | 308mm | 308mm |
E – Chain Stay Length | 455mm | 455mm | 455mm | 455mm | 455mm |
F – Seat Tube Angle | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º |
G – Effective Seat Tube Angle | 74.5º | 74.5° | 74.5° | 74.5º | 74.5° |
H – Head Tube Angle | 70° | 70° | 70° | 70° | 70° |
I – Fork Offset | 51mm | 51mm | 51mm | 51mm | 51mm |
J – Wheelbase | 1132mm | 1148mm | 1178mm | 1205mm | 1230mm |
K – Head Tube Length | 110mm | 110mm | 110mm | 130mm | 130mm |
L – Reach | 415mm | 430mm | 460mm | 485mm | 510mm |
M – Stack | 630mm | 630mm | 630mm | 648mm | 648mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Mondraker |
---|---|
RRP | No |
