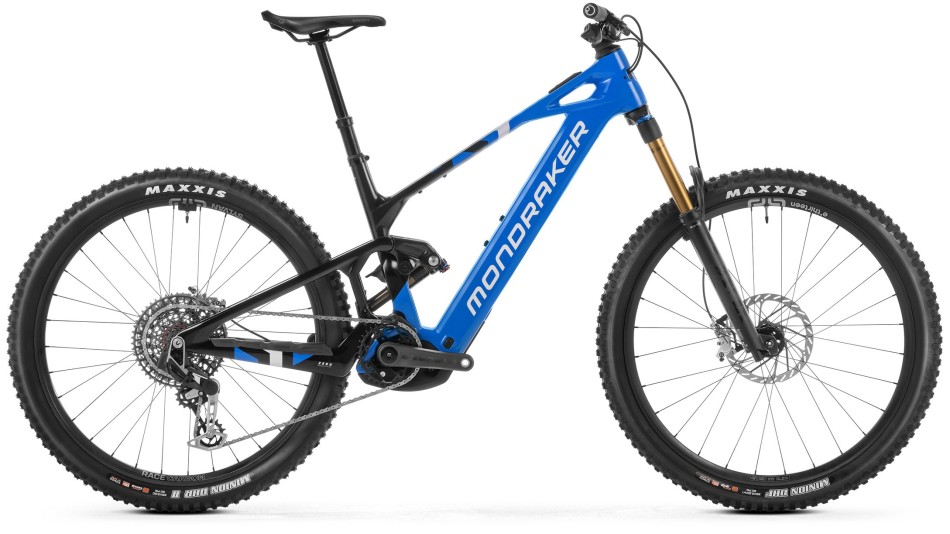

Mondraker Crafty Carbon RR SL 2025 eMTB
Descending, climbing and endless hours of singletrack, the Crafty RR SL makes it all possible.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The top-of-the-range Crafty Carbon RR SL just had to come in the colour that best defines us as a brand: Carrera Blue (with a touch of Black and Crystal White). This standout paint scheme shines on the best dressed Crafty Carbon of all.
The lightest build of the five, the RR SL comes with a Kashima coated Fox 36 29 Float GRIPX2 Factory fork, SRAM Reverb AXS dropper post and 2.5” tyres on e*thirteen Sylvan Race Carbon IW30 carbon fibre wheels (30mm internal width). Fitted with Bosch’s 600Wh internal removable battery, it’s 100% compatible with the optional Powermore 250Wh range extender if needed.
Specification
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Rear Shock | Fox Float Factory Kashima EVOL 185×55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | CM compression, SCLRM5.2 rebound, CML, 0.2 volume spacer |
| Fork | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15×110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Headset | Acros custom ZS56/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| Handlebar | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340×125mm, M size: 390×150mm, ML size: 440×170mm, L size: 440×170mm, XL size: 440×170mm |
| Saddle | FIZIK Vento Argo 00 Carbon 150mm |
| Front Brake | Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rims | e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12×148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Front Tyre | Maxxis Minion DHF 29×2.5, tubeless ready, 3C MAXX GRIP, EXO+ Protection, 600TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29×2.5 tubeless ready, 3C MAXX TERRA, EXO+ Protection, 60TPI, folding bead |
| Crankset | E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm |
| Chainring | Sram T-Type 34T, steel, narrow-wide, 104 BCD |
| Chain | Sram XX Eagle T-Type, 12s, Powerlock |
| Rear Derrailleur | Sram XX Eagle AXS, T-Type, 12s |
| Shifter | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1297, 10-52T, T-Type, 12s |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 600Wh |
| Display/Remote | Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Quoted Weight | 21.1kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 160cm (5’3”) | 165cm (5’5”) |
| M | 165cm (5’5”) | 177cm (5’9”) |
| M/L | 177cm (5’9”) | 185cm (6’1”) |
| L | 183cm (5’9”) | 193cm (6’4”) |
| XL | 190cm (6’3”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Standard Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 581 mm | 596 mm | 618 mm | 640 mm | 662 mm |
| C – Botom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm | -25 mm |
| D – Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| E – Chainstay Length | 455 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| F – Seat Tube Angle Actual | 73° | 73° | 73° | 73° | 73° |
| G – Seat Tube Angle Effective | 77.95° | 77.95° | 77.95° | 77.95° | 77.95° |
| H – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1240 mm | 1255 mm | 1280 mm | 1314 mm | 1338 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 445 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M – Stack | 638 mm | 638 mm | 647 mm | 656 mm | 665 mm |
Low Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 582 mm | 597 mm | 619 mm | 641 mm | 663 mm |
| C – Botom Bracket Drop | -30 mm | -30 mm | -30 mm | -30 mm | -30 mm |
| D – Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| E – Chainstay Length | 456 mm | 456 mm | 456 mm | 466 mm | 466 mm |
| F – Seat Tube Angle Actual | 72.65° | 72.65° | 72.65° | 72.65° | 72.65° |
| G – Seat Tube Angle Effective | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
| H – Head Tube Angle | 64.15° | 64.15° | 64.15° | 64.15° | 64.15° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1241 mm | 1256 mm | 1281 mm | 1315 mm | 1339 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 441 mm | 456 mm | 476 mm | 496 mm | 516 mm |
| M – Stack | 641 mm | 641 mm | 650 mm | 659 mm | 668 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
