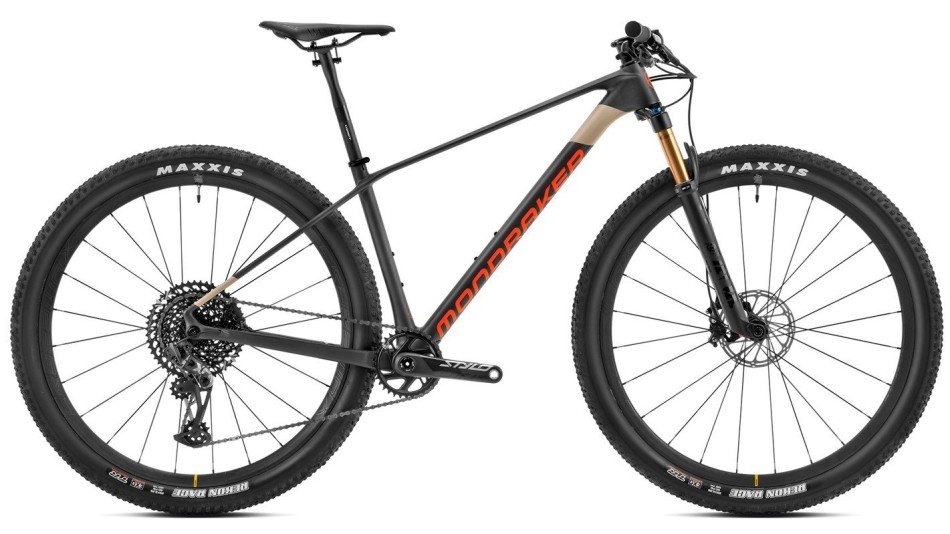

Mondraker Podium Carbon R 2023 Cross Country Bike
We’re proud to present to you the production bike with the lightest frame available on the market today.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Touring Hybrid One 500 2023 Grey/White eBike
Starting at: £1,818.99
-
Mondraker Thundra 2024 eBike
Starting at: £3,199.00
-
Marin San Quentin 2 27.5 2024 Trail Bike
Starting at: £1,098.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
STEALTH AIR CARBON and XC FORWARD GEOMETRY adapted to the lightest production frame in the world are credentials enough to show that the Podium R is the heir to the very best we’re capable of here at Mondraker.
With an overall weight of under 9 kilos, it’s the ideal bike for anyone competitive by nature who wants to give it all they’ve got every time they go for a ride, whether that’s at a local weekend race, a UCI points event, or even in a World Cup race against the best riders on the planet!
Specification
| Frame | Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12×148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, |
| Fork | Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15×110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload |
| Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5×8×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Fork Remote | Fox single pull |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| Handlebar | Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Seatpost | Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm |
| Saddle | Fizik Antares R7 |
| Front Brake | SRAM Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic Crossmax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic straightpull duble butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Front Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Rear Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Crankset | Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Cassette | SRAM XG-1275, 10-50T, 12s |
| Derailleur Hanger | SRAM UDH |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| B – Toptube Length | 590 mm | 611mm | 632 mm | 650 mm |
| C – Bottom Bracket Drop | -65 mm | -65 mm | -65 mm | -65 mm |
| D- Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| E – Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| F – Seat Tube Angle | 73° | 73° | 73° | 73° |
| G – Effective Seattube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| H – Headtube Angle | 68,5° | 68,5° | 68,5° | 68,5° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1107 mm | 1128 mm | 1150 mm | 1170 mm |
| K – Headtube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| L – Reach | 425 mm | 444 mm | 463 mm | 477 mm |
| M – Stack | 598 mm | 602 mm | 611 mm | 625 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
