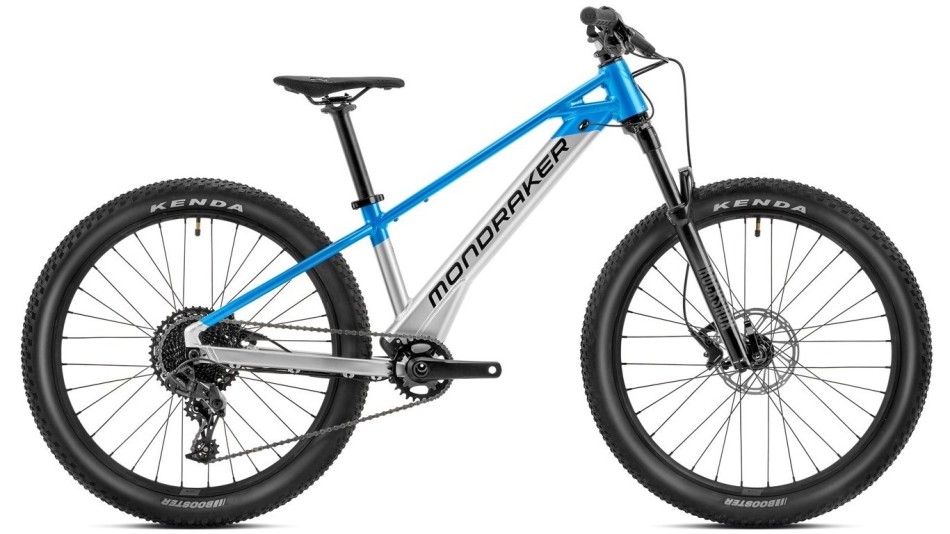

Mondraker Play 24 2024 Kids eBike

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

20 years manufacturing high-end bikes is what gives us the experience to say that with the play 24 your children will have the perfect bike to have mountains of fun on.

Playful like no other, its 100mm travel front suspension will allow them to enjoy both the descents and the climbs, thanks in large part to the Mahle Ebikemotion X-35 motor and a 250Wh internal battery, combining together to give you range to spare and opening the door to some fabulous adventures.

And when you finish your ride and see the smiles on their faces, you’ll be impatient for the next day to come around so you can do it all again, together. Those are the best days, the priceless days, the ones that make you both wonder just how good they’ll get.

Specification

Frame	Play 24 6061 Alloy Stealth Evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Fork	RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9×100mm axle, 30mm steel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset	ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º
Stem	ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar	MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	ONOFF Twin, 1lock-on, 135mm
Seatpost	MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm
Saddle	SDG Fly JR
Front Brake	SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear Brake	SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Lever	SRAM Level, tooled reach adjust, lever pivot bushings
Rims	MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes	CN round stainless steel
Front Hub	Formula DC20LW, 9×100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub	Mahle-Ebikemotion X-35
Front Tyre	Kenda Booster 24×2.4 single compound 30TPI, wire bead
Rear Tyre	Kenda Booster 24×2.4 single compound 30TPI, wire bead
Crankset	Prowheel, Direct mount chain ring, 127mm
Chainring	28T, steel
Bottom Bracket	Prowheel BSA, 73mm
Chain	SRAM PC1110 11s, Powerlock
Rear Derailleur	SRAM NX, 11s, long cage, X-actuation 1:1
Shifter	SRAM trigger NX 11s, X-actuation 1:1
Cassette	SRAM PG 1030 11-42T, 11s
Derailleur Hanger	Mondraker M073
Weight	15.1 kg
Display	Mahle-Ebikemotion
Motor	Mahle-Ebikemotion X-35
Battery	Mahle-Ebikemotion Internal 250Wh

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
One Size	135cm (4’5”)	155cm (5’1”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	One Size
A – Seat Tube Length	320mm
B – Top Tube Length	517mm
C – Bottom Bracket Drop	-30mm
D – Bottom Bracket Height	280mm
E – Chain Stay Length	405mm
F – Seat Tube Angle	72º
G – Effective Seat Tube Angle	72º
H – Head Tube Angle	68º
I – Fork Offset	39mm
J – Wheelbase	994 mm
K – Head Tube Length	100mm
L – Reach	350mm
M – Stack	537mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
