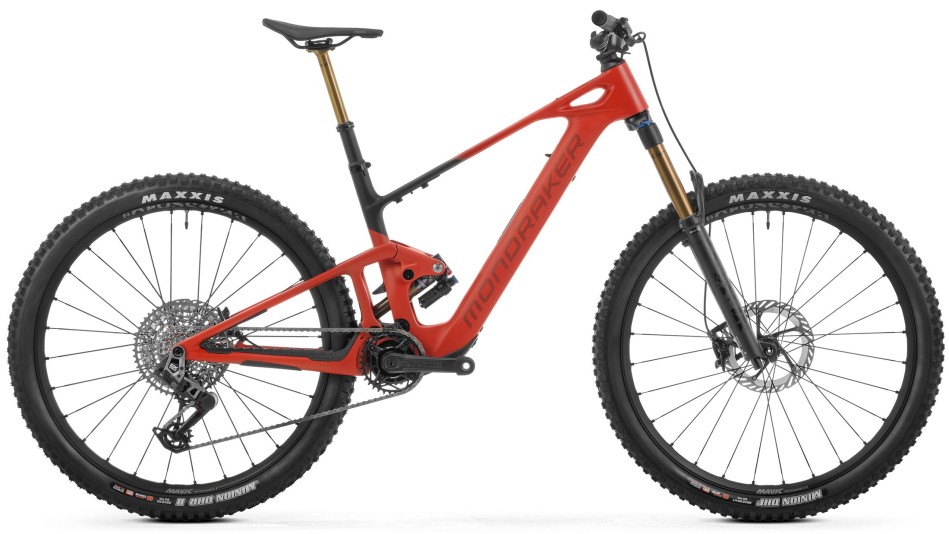

Mondraker Neat RR 2025 Light eMTB
Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Shimano 105 12 Speed Cassette
Starting at: £69.99
-
Mondraker Prime G4 2025 Bronze/Grey eBike
Starting at: £2,598.99
-
Mondraker F-Play 24 2025 Kids eBike
Starting at: £2,698.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The intermediate model in the range is the NEAT RR, with a Fox 36 29 Float GRIP2 Factory Kashima fork, SRAM GX Eagle AXS transmission, SRAM Level Bronze Stealth brakes, Fox Transfer Factory Kashima seatpost and Mavic E-DeeMax SL 29 wheels.Specification
| Frame | Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Rear Shock | Fox Float X Factory Kashima EVOL, 185×55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer |
| Fork | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15×110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Headset | Acros custom IS52/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Grips | Onoff Forest, CNC lock-on, 135mm |
| Seatpost | Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm |
| Saddle | Fizik Terra Aidon Slim X5 |
| Front Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Rear Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Rims | Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes |
| Spokes | Mavic 28 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12×148mm, IS 6 bolts XD freehub |
| Front Tyre | Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead |
| Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
| Chainring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle AXS T-Type,12s |
| Shifter | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Motor | TQ HPR-50 |
| Battery | TQ HPR-50 360Wh integrated and removable |
| Display/Remote | TQ HPR display V01 |
| Quoted Weight | 18,7 kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 380mm | 420mm | 450mm | 490mm |
| B – Toptube Length | 595mm | 615mm | 640mm | 660mm |
| C – Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D – Bottom Bracket Height | 348mm | 348mm | 348mm | 348mm |
| E – Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| F – Seat Tube Angle | 72,6º | 72,6º | 72,6º | 72,6º |
| G – Effective Seattube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| H – Headtube Angle | 64.5º | 64.5º | 64.5º | 64.5º |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1235mm | 1255mm | 1275mm | 1295mm |
| K – Headtube Length | 110mm | 110mm | 130mm | 140mm |
| L – Reach | 450mm | 470mm | 495mm | 515mm |
| M – Stack | 626mm | 626mm | 642mm | 650mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
