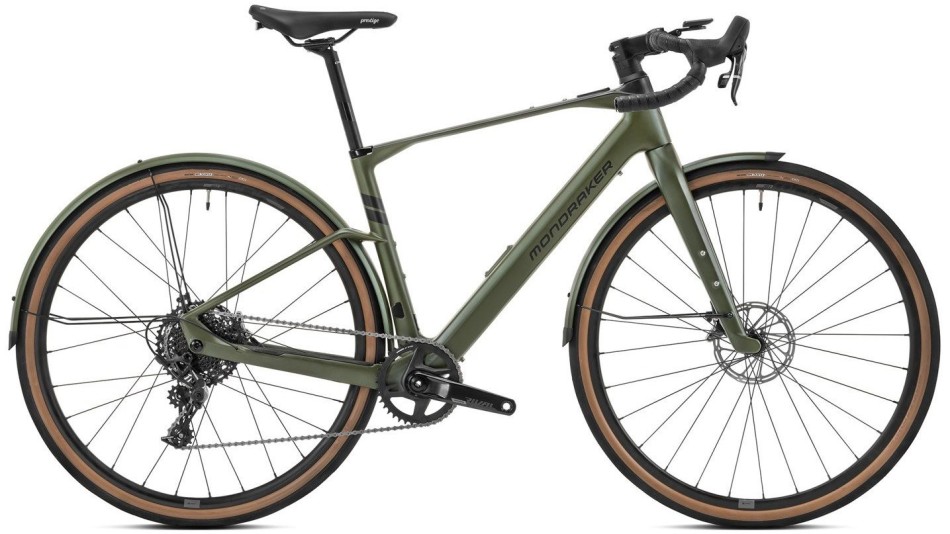

Mondraker Dusty SX R 2024 eGravel Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Medium and Large in stock now! Delivery in 2-3 working days. Other sizes shown available with Mondaraker Spain. Expect delivery within 8-9 working days of placing an order.
It’s time to start fast forwarding your commute, skip the boring bits, leave your house later, get to the office earlier, get home earlier and make you weekend getaways longer.
The Dusty SX is here. Our lightest URBAN CROSS model is going to get you around faster than ever before. What you do with all the time you save is up to you. Work less and enjoy your weekend rides more? Why not! At least from now on you won’t need two bikes when one DUSTY can do it all.
While maintaining the identity and mountain bike DNA of the new DUSTY e-Gravel bike range, the SX version comes with components and extras to make it the fastest URBAN bike around. It’s both a city bike, and the perfect tool for your weekend getaways out of town. Asphalt, trails or weekend long expeditions. You choose.
Building on the DUSTY platform guarantees flexibility and dependability. We’re talking about a STEALTH AIR CARBON frame, a MAHLE X20 motor built into the rear hub, and a 350Wh battery integrated into the downtube. Added to that are purpose made colour coordinated aluminium mudguards, and 700×40C Maxxis Re-Fuse semi-slick tyres to give you all the speed you need on-road, plus all the grip you need while out on the trails.
The DUSTY SX reaps all of the benefits that come with being a part of the DUSTY e-Gravel family, including an optional 172Wh Range Extender, clean through-headset cable routing and internal cable guides, factory fitted rubber chain protector and the possibility of fitting a x2 chainset if desired. With the 350Wh internal battery your available range can be anywhere up to 180Km (depending on the level of assistance selected and the altitude gain involved). Imagine how far you can go with the optional 172Wh Range Extender plus leg-power!
Specification
Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12×142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor |
Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45° |
Stem | Mondraker e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 70mm, size L: 80mm XL: 90mm |
Handlebar | OnOff Barium gravel 18° bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
Bartape | Barium gravel dark grey |
Seatpost | OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm |
Saddle | Selle Royal Prestige 139mm |
Front Brake | SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Brake | SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rims | MDK-XG1, 23mm internal width, tubeless ready, 32 spokes |
Spokes | CN round stainless steel |
Front Hub | Novatec D041, Boost 12×100mm, sealed bearings, IS 6 bolts |
Rear Hub | Mahle X20 12×142mm, sealed bearings, IS 6 bolts |
Front Tyre | Maxxis Re-fuse 700×40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
Rear Tyre | Maxxis Re-fuse 700×40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
Crankset | SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm |
Chainring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
Bottom Bracket | Mahle DUB pressfit, sealed bearings |
Chain | Sram Apex, 12s, Powerlock |
Rear Derraileur | Sram Apex XPLR 12s |
Shifter | Sram Apex D1 12s, X-Actuation 1:1, single click |
Cassette | Sram PG-1231 11-44, 12s |
Motor | Mahle X20 Drive Unit |
Battery | Mahle X20 IX350Wh |
Display | Pulsar One Wireless |
Mudguards | Mondraker Dusty |
Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
M | 170cm (5’7”) | 180cm (5’11”) |
L | 175cm (5’9”) | 187cm (6’1”) |
XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | S | M | L | XL |
A – Seat Tube Length | 440 mm | 460 mm | 500 mm | 530 mm |
B – Top Tube Length | 550 mm | 570 mm | 595 mm | 620 mm |
C – Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
D – Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
E – Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
F – Seat Tube Angle | 74º | 74º | 74º | 74º |
G – Effective Seat Tube Angle | 74º | 74º | 74º | 74º |
H – Head Tube Angle | 70º | 70º | 70º | 70º |
I – Fork Offset | 45 mm | 45 mm | 45 mm | 45 mm |
J – Wheelbase | 1034 mm | 1056 mm | 1082 mm | 1110 mm |
K – Head Tube Length | 125 mm | 150 mm | 175 mm | 210 mm |
L – Reach | 393 mm | 405 mm | 424mm | 440 mm |
M – Stack | 548 mm | 576 mm | 595 mm | 628 mm |
N – Stem Length | 60 mm | 60 mm | 80 mm | 90 mm |
O – Fork Height | 420 mm | 420 mm | 420 mm | 420 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Mondraker |
---|---|
RRP | No |
