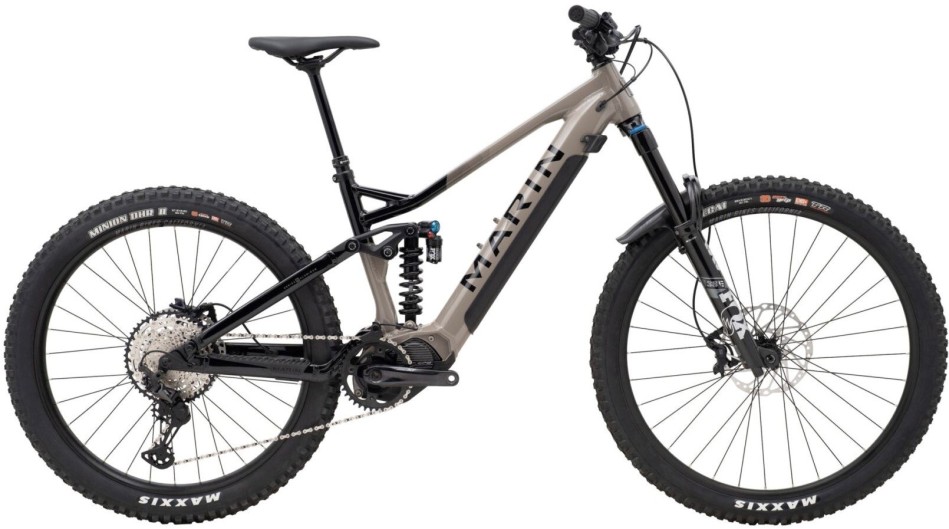

Marin Alpine Trail E2 2024 eMTB

The Marin Alpine Trail E2 is our top-end Alpine Trail, ready to tame the roughest and toughest of trails.

For the best of the bunch, we’ve packed in the big-dog Shimano STEPs EP801 system and a long-lasting 630Wh battery, Fox 38/Float DHX2 Performance Elite suspension and a blend of Shimano XT and SLX 12-speed, including powerful 4-piston brakes

Series 4 Aluminium Frame
Alpine Trail E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

MultiTrac Suspension
The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills.

Mullet Wheel Setup
29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.

Dropper Post Optimised
The modern day trail rider needs their saddle out of the way at times, while low-slung frames require longer length posts. On the Alpine Trail E, seat tube lengths have been minimized, along with minimum insertion depths, so that riders of all sizes can get the proper extension needed.

Specification

Frame	All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Fork	Fox 38 Performance Elite, 160mm travel, 29” , 110×15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
Shock	Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205×65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring = 350lb, L/XL Spring = 450lb
Rims	Front: Marin Aluminum Double Wall, 29” Diameter, 32mm Inner Rim Width; Rear: Marin Aluminum Double Wall, 27.5” Diameter, 38mm Inner Rim Width; Pinned Joint, Disc Specific, Tubeless Compatible
Rear Hub	Forged Aluminum, 148×12mm, Centerlock Disc, 32H
Front Hub	Shimano MT-410B, 110×15mm, Centerlock Disc, 32H
Spokes	14g Black Stainless Steel
Front Tyre	Maxxis Assegai Exo+ 2.5×29 Maxx Gripp
Rear Tyre	Maxxis Minion DHR Exo+ 2.8×27.5 Maxx Terra
Tyre Inserts	CushCore, 29” Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
Rear Derailleur	Shimano XT 8100 12-Speed, SGS
Shift Lever	Shimano SLX 7100 12-Speed, I-Spec EV
Crankset	Shimano XT M8150, 160mm Length
Chain Guide	Shimano CS-EN800 Chainguide
Motor	Shimano Steps EP801 Drive Unit, 250W, 85Nm
Chain	KMC E12S, E-Bike Specific Chain
Cassette	SunRace 12-speed, 11-51
Front Brake	Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor
Rear Brake	Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor
Brake Levers	Shimano SLX Levers, I-Spec EV
Handlebar	Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back
Stem	Marin CNC Stem, 35mm Length, 35mm Bar Bore
Grips	Marin Grizzly Lock On
Headset	FSA No 57, Semi-Sealed Cartridge Bearings, 1 1/8” × 1 1/2”
Seatpost	X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Saddle	Marin E-MTB Saddle
Pedals	Marin MTB Plastic
Battery	BT-8036, Internal 630Wh
Display	SC-E600 Display
Switch	SW-E7000 Left Hand Switch for Assist Mode Change
Charger	Shimano Battery Charger EC-E6002
Hanger	Hanger #40
Quoted Weight	24.50kg
Max System Weight	138kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	158cm (5’3”)	168cm (5’6”)
Medium	168cm (5’6”)	178cm (5’10”)
Large	178cm (5’10”)	188cm (6’2”)
X Large	188cm (6’2”)	193cm (6’4”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	Dimension	S	M	L	XL
A	Stack	613	622	631	640
B	Reach	445	465	485	505
C	Headtube Angle	63°	63°	63°	63°
D	Headtube Length	100	110	120	130
E	Seattube Angle	78°	78°	78°	78°
F	Seattube Length	390	400	425	430
G	Toptube Effective	575	597	619	641
H	BB Height	340.5	340.5	340.5	340.5
I	BB Drop	28	28	28	28
J	Chainstay	435	435	435	435
K	Wheelbase	1215	1239	1264	1288
L	Standover Height	681.6	681.4	686.8	689.8
M	Fork Offset	44	44	44	44
-	Seatpost Diameter	30.9	30.9	30.9	30.9
-	Handlebar Width	780	780	780	780
-	Stem Length	50	50	50	50
-	Crank Length	165	165	165	165

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
