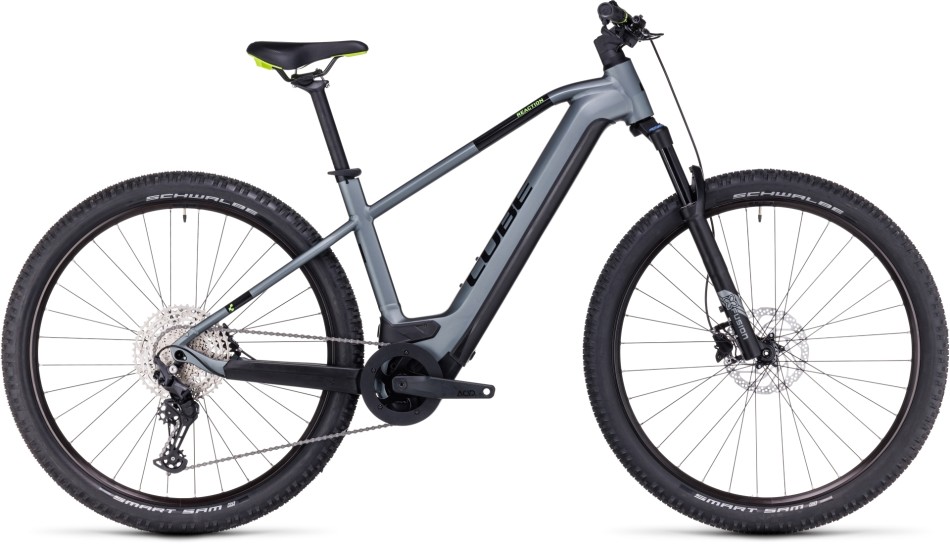

Cube Reaction Hybrid Pro 750 2024 Grey/Green eBike

It’s all in the detail. So neat is the Reaction Hybrid’s frame design, you’ll barely notice the high-capacity Bosch battery – now up to 750Wh, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you’ll definitely notice the power.

Agile Ride Geometry delivers confidence-inspiring handling, as you’d expect. There’s an Easy Entry frame option, and a new S frame with 27.5in wheels, so everyone can find their ideal Reaction Hybrid.

And, with internally routed cables including a stealth dropper post upgrade option, we’ve reduced the need for maintenance so that you can just enjoy the ride.

Ain’t no mountain high enough to get in the way of our reaction hybrid race. The choice of frame styles and sizes means there’s one to suit every rider and, with a high-capacity battery and smooth Bosch power, it’s got what you need to take the path less travelled and find out, once and for all, where it leads.

Video

Specification

Frame	Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Wheels Size	27.5” – Small / 29” – Medium, Large, X Large, XX Large
Fork	X-Fusion MIG32 Air, Tapered, 15×110mm, 120mm, Lockout
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote	Bosch LED Remote
Display	N/A
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano Deore RD-M5100-SGS, 11-Speed
Shifter	Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Crankset	Acid E-Crank, 38T, 175mm
Cassette	Shimano Deore SL-M5100-IR, Direct Attach, Rapidfire-Plus
Chain	Shimano Deore CS-M5100, 11-51T
Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims	Rodi Tryp 30, 32H, Disc, Tubeless Ready
Tyres	Schwalbe Smart Sam, Active, 2.6
Stem	Cube Performance Stem E-MTB, 31.8mm
Handlebar	Cube Rise Trail Bar Pro, 740mm
Grips	ACID React Pro
Seat Post	Cube Performance Post, 30.9mm
Seatclamp	Cube Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Sequence
Pedals	Acid PP MTB
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Quoted Weight	24.5kg
Maximum Rider/Bike Weight	150kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	160kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Medium (29” Wheels)	168cm (5’6”)	175cm (5’9”)
Large (29” Wheels)	175cm (5’9”)	183cm (6’0”)
X Large (29” Wheels)	183cm (6’0”)	191cm (6’3”)
XX Large (29” Wheels)	191cm (6’3”)	198cm (6’6”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	M	L	XL	XXL
Seat Tube	405	450	495	545
Top Tube Horizontal	628	628	645	672
Seat Tube Angle	74	74	74	74
Head Tube Angle	67.5	67.5	68	68
Chain Stays	460	460	460	460
Head Tube	122	122	132	149
Wheelbase	1196	1196	1208	1236
BB-Height To Hub	65	65	65	65
Standover Height	762	768	781	821
Reach	444	442	456	478
Stack	646	651	662	678
Crank Length	175	175	175	175
Max Tyre Width	67	67	67	67
Stem Length	60	60	60	60

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
