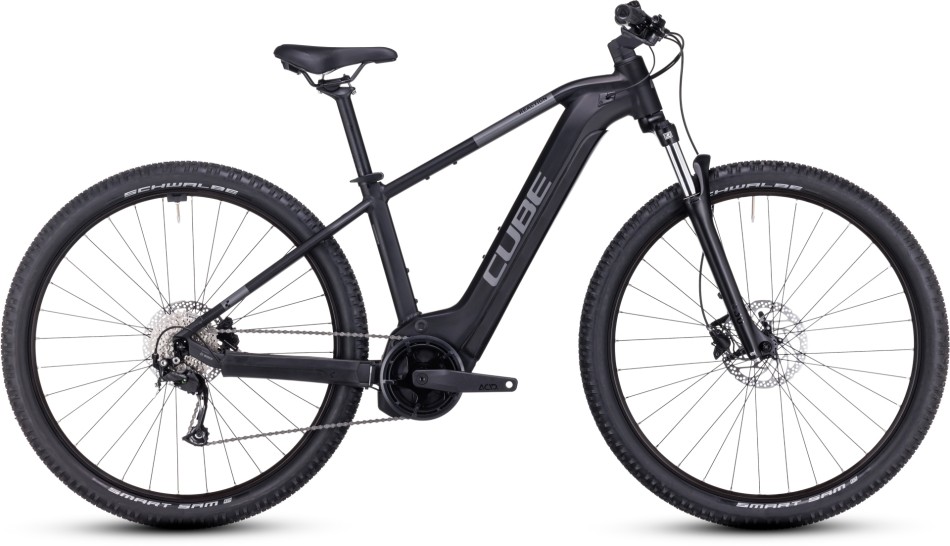

Cube Reaction Hybrid Performance 500 2024 Black/Grey eMTB
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Completely new for 2023, our versatile and rugged Reaction Hybrid Performance is built around Bosch’s quiet, powerful Performance Line motor with 75Nm torque. It’s Bosch Smart System-equipped and capable of accepting a battery up to 625Wh for worry-free longer rides.
There’s a clever flat mount for an optional kickstand, an option to add an integrated frame lock, and mounting points for a multi-tool or lock under the top tube. We even incorporated a tool into the seat clamp, and internal cable routing and a new speed sensor setup translate to clean lines and minimal maintenance. And, with a Trapeze frame option and SizeSplit, it’s easy to find the perfect fit for you.
Specification
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Fully Integrated Battery, Internal Cable Routing, Kickstand/Fender/Carrier Mounting Parts |
Wheel Size | XS and S frame sizes have 27.5” wheels – M, L, XL and XXL frame sizes have 29” wheels |
Fork | SR Suntour NVX30 Coil, 100mm |
Drive Unit | Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt) Smart System |
Battery | Bosch PowerTube 500 Smart System (battery weight 3.0kg) |
Remote | Bosch LED Remote |
Display | N/A |
Charger | Bosch 2A Smart System (1.7h 50% – 4.5h 100%) |
Brake System | Clarks M2 Hydraulic Brakes, PM/FM (180/180) |
Rear Derailleur | Shimano RD-M3100-SGS, 9-Speed |
Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
Crankset | ACID E-Crank, 175mm, 38T |
Cassette | Shimano CS-HG201, 11-36T |
Chain | KMC X9 |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Rims | Rodi Blackrock 23, 32H, Disc, Tubeless Ready |
Tyres | Schwalbe Smart Sam, Active, 2.35 |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Handlebar | CUBE Rise Trail Bar Pro, 740mm |
Grips | ACID React Pro |
Seat Post | CUBE Performance Post, 30.9mm |
Seatclamp | CUBE Varioclose, 34.9mm |
Saddle | Natural Fit Sequence |
Headset | ACROS AZF-1031 ZS56 Top ZS56 Bottom |
Pedals | CUBE PP MTB |
Quoted Weight | 23.20kg |
Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
X Small (27.5” Wheels) | 152cm (5’0”) | 158cm (5’3”) |
Small (27.5” Wheels) | 158cm (5’3”) | 168cm (5’6”) |
Medium (29” Wheels) | 168cm (5’6”) | 175cm (5’9”) |
Large (29” Wheels) | 175cm (5’9”) | 183cm (6’0”) |
X Large (29” Wheels) | 183cm (6’0”) | 191cm (6’3”) |
XX Large (29” Wheels) | 191cm (6’3”) | 198cm (6’6”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | XS | S | M | L | XL | XXL |
Seat Tube | 340 | 370 | 420 | 470 | 515 | 565 |
Top Tube Horizontal | 555 | 575 | 595 | 615 | 635 | 655 |
Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Head Tube Angle | 67.5 | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
Chainstays | 466 | 466 | 488 | 488 | 488 | 488 |
Head Tube | 110 | 110 | 110 | 120 | 140 | 155 |
Wheelbase | 1116 | 1125 | 1169.6 | 1190.5 | 1212.3 | 1233.6 |
BB-Height to Hub | 46 | 46 | 55 | 55 | 55 | 55 |
Reach | 376.5 | 395 | 407 | 424.6 | 439.1 | 455.1 |
Stack | 602.5 | 607.5 | 634 | 643 | 661.5 | 675.5 |
Seat Post Length | 350 | 350 | 350 | 350 | 350 | 350 |
Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
Stem Angle | 12 | 12 | 12 | 12 | 12 | 12 |
Crank Length | 175 | 175 | 175 | 175 | 175 | 175 |
Max Tyre Diameter | 716 | 716 | 754 | 754 | 754 | 754 |
Max Tyre Width | 60 | 60 | 60 | 60 | 60 | 60 |
Stem Length | 50 | 50 | 60 | 60 | 70 | 70 |
Handlebar Width | 740 | 740 | 740 | 740 | 740 | 740 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Cube |
---|---|
RRP | No |
