Wheels Manufacturing BSA Threaded / 30mm Axle Ceramic
For use with 30mm diameter cranks with a spindle length of at least 104mm
SKU:
WMBBBSA30CER
RRP: £129.99
Our price £110.49
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details

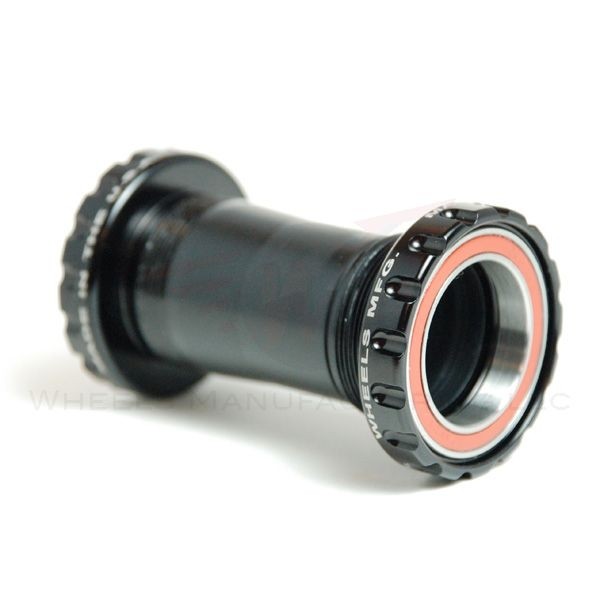

Our solution for running a 30mm axle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Ceramic Hybrid sealed bearings outboard of the bottom bracket. Fully serviceable.
For use with 30mm diameter cranks with a axle length of at least 104mm when used in a 68mm wide bottom bracket. This is the overall axle length with all spacers and adjusters removed from the axle. Measurement is taken from the inside face of the crank arm to the very end of the axle.
Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK AXLE LENGTH!
Specification
Bearings: Enduro Ceramic Hybrid
Color: Black
Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)
Bottom Bracket Width (mm): 68mm – 73mm
Bottom Bracket I.D.: 33.6-33.9 mm
Crank Axle Diameter: 30mm
Crank Axle Length: At least 104mm*
Over Bearing Width: 91.5mm in a 68mm wide shell (Includes dust shields)
Weight: 94g
Important: Will not work with crank spindles less than 104mm. PLEASE MEASURE YOUR CRANK SPINDLE LENGTH! This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
Additional Information
| Manufacturer | Wheels Manufacturing |
|---|---|
| RRP | N/A |
