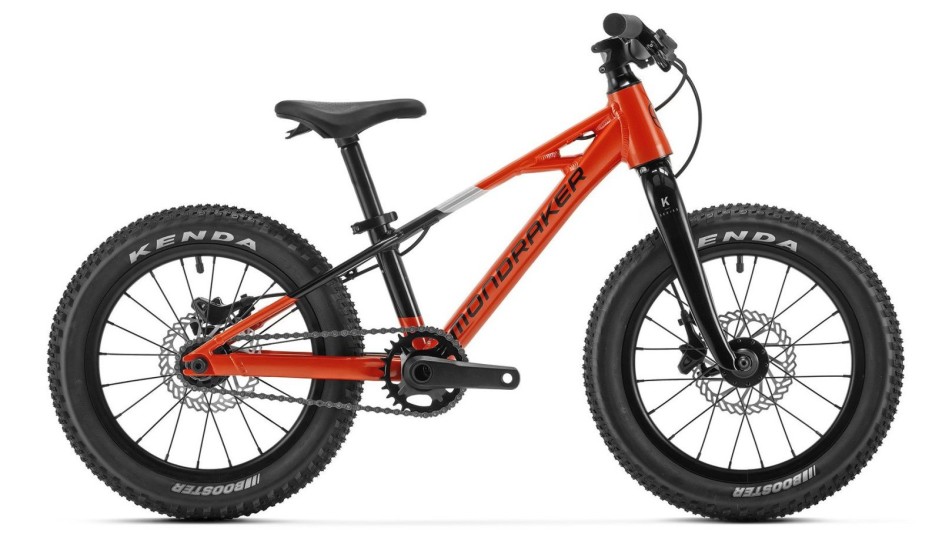

Mondraker Trick 16 2025 Red/Black 16" Kids Bike
One of our priorities in the manufacture of any bike, and more so than ever in our kid’s ranges, is to do so while keeping the weight as low as possible.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Touring Hybrid Exc 625 2023 Trapeze Red/White eBike
Starting at: £2,697.99
-
Mondraker Foxy Carbon R 2023 Trail Bike
Starting at: £2,899.99
-
Hope Pro 5 Rear Hub Bearing Kit - 6 Bolt - Shimano HG freehub
RRP: £46.00
Our price £39.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
One of our priorities in the manufacture of any bike, and more so than ever in our kid’s ranges, is to do so while keeping the weight as low as possible. If it’s important in an adult’s bike, in the KIDS range it’s crucial as the lower the weight, the easier it is for our kids to both pedal and to move the bike around.
While we’re at it we manufacture our kids’ frames with all of the latest features: internal wiring, exclusive design, quality components… All our knowledge combined so that they can enjoy themselves as much, or more even, than we do on our bikes.
Specification
| Frame | Trick 16 6061 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 3/8×135mm rear axle |
| Fork | MDK 16 Kid, Alloy stanchions, Chromoly steering tube |
| Headset | FPD Dozer tapered internal 1048AS, 1-1/8” 1-1/2 15mm top cover + TJ3 top cap |
| Stem | MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 40mm |
| Handlebar | MDK XC 1.0, 6061 alloy, rise: 19mm, width: 540mm, 9º backsweep, 5º upsweep, 25.4mm barbore |
| Grips | Onoff kids 19 100-100 mm |
| Seatpost | MDK XC, 6061 T6 alloy, diameter 27.2mm, length 200mm, offset 0mm |
| Saddle | Mondraker Leader Kids series |
| Front Brake | Clarks M2 Junior 160mm IS 6 bolts, one piece rotor |
| Rear Brake | Clarks M2 Junior 160mm IS 6 bolts, one piece rotor |
| Rims | MDK-XP1 20, 25mm internal width, 20 spokes |
| Spokes | CN round stainless steel |
| Front Hub | KT-K8QF, 9×100mm QR axle, cup & cone ball bearings |
| Rear Hub | MSR 1B4 3/8×135mm, cup & cone ball bearings |
| Front Tyre | Kenda Booster 16×2.2 single compound 30TPI, wire bead |
| Rear Tyre | Kenda Booster 16×2.2 single compound 30TPI, wire bead |
| Crankset | Prowheel DM 28, 102mm |
| Chainring | 28 Tooth |
| Bottom Brakcet | CH-52 |
| Pedals | NW-450 PP |
| Chain | KMC Z-9, 9s |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| One Size | 145cm (4’7”) | 165cm (5’4”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | One Size |
| A – Seattube Length | 350 mm |
| B – Toptube Length | 550 mm |
| C – Bottom Bracket Drop | -10 mm |
| D – Bottom Bracket Height | 320 mm |
| E – Chainstay Length | 420 mm |
| F – Seat Tube Angle | 71º |
| G – Effective Seattube Angle | 76º |
| H – Headtube Angle | 67º |
| I – Fork Offset | 41 mm |
| J – Wheelbase | 1105 mm |
| K – Headtube Length | 90 mm |
| L – Reach | 415 mm |
| M – Stack | 545 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
