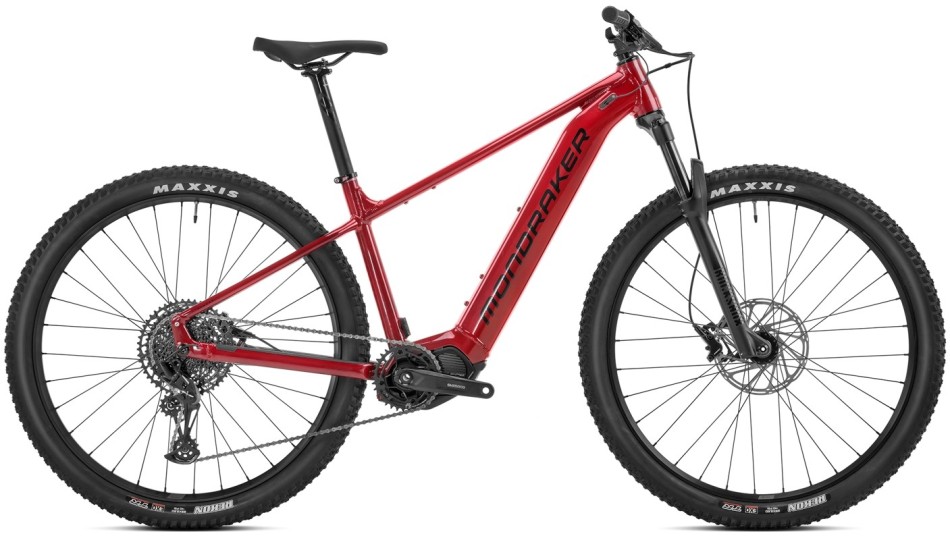

Mondraker Thundra 2023 eBike
If you want to try an e-bike and venture out into the mountains, the THUNDRA is just the bike for the job.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Marin Rift Zone E2 2024 eMTB
Starting at: £4,494.99
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
Mondraker Dusty R 2024 eGravel Bike
Starting at: £4,299.00
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
If you want to try an e-bike and venture out into the mountains, the THUNDRA is just the bike for the job.
Its STEALTH aluminium frame comes with Shimano’s new EP600 motor and a 720Wh battery which can be further augmented by a 360Wh Simplo range extender battery (optional), bumping up the power to 1,080Wh for unheard of range. That kind of power opens up whole days in the saddle and endless trails to enjoy.
What’s more it comes fitted with quality components such as RockShox’s Silver RL fork offering 120mm of travel, 29” wheels, SRAM’s Level T brakes and ONOFF components, all of which add up to guaranteed performance in any circumstances.
Specification
| Frame | Thundra 6061 Xtralite Full Butted Alloy, Forward Geometry, integrated internal non-removable battery, tapered head tube, Boost 12×148mm rear axle, integrated dropout speed sensor.*Optional external battery |
| Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15×110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| Saddle | MDK ebike black |
| Front Brake | Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Display | Shimano EN500 |
| Motor | Shimano STEPS EP600 |
| Battery | Simplo internal 720Wh |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | XS | S | M | L | XL |
| A – Seat Tube Length | 380mm | 390mm | 430mm | 470mm | 510mm |
| B – Top Tube Length | 600mm | 615mm | 645mm | 670mm | 700mm |
| C – Bottom Bracket Drop | -70mm | -70mm | -70 mm | -70mm | -70mm |
| D – Bottom Bracket Height | 308mm | 308mm | 308mm | 308mm | 308mm |
| E – Chain Stay Length | 455mm | 455mm | 455mm | 455mm | 455mm |
| F – Seat Tube Angle | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º |
| G – Effective Seat Tube Angle | 74.5º | 74.5° | 74.5° | 74.5º | 74.5° |
| H – Head Tube Angle | 70° | 70° | 70° | 70° | 70° |
| I – Fork Offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| J – Wheelbase | 1132mm | 1148mm | 1178mm | 1205mm | 1230mm |
| K – Head Tube Length | 110mm | 110mm | 110mm | 130mm | 130mm |
| L – Reach | 415mm | 430mm | 460mm | 485mm | 510mm |
| M – Stack | 630mm | 630mm | 630mm | 648mm | 648mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
