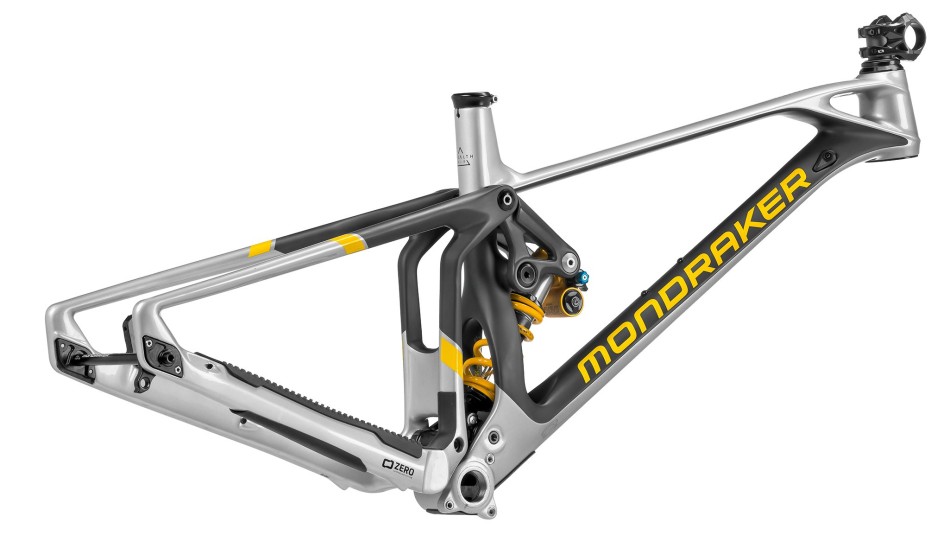

Mondraker Superfoxy Carbon RR 2023 Enduro Frameset
This mini-Summum will allow you to send it with the best, enjoying the lightness and feel provided by the STEALTH AIR FULL CARBON frame.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Sram XX Eagle Transmission Chain
RRP: £135.00
Our price £114.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
While not being a full-on DH bike, the Superfoxy Carbon RR is clearly focused on the downs with its 170mm front and 160mm rear travel. This mini-Summum will allow you to send it with the best, enjoying the lightness and feel provided by the STEALTH AIR FULL CARBON frame.
No jump, goat-track or trail will stop you from sending it flat out. Its racing DNA is self-evident in any situation, with surprising acceleration given its travel. It’s the perfect combination for those who enjoy the best descents combined with pedaling back up to the top.
Specification
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12×157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included |
| Rear Shock | Öhlins TTX 22M Coil 205×65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2×10mm bottom bushings |
| Shock Settings | C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs |
| Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5×8×45°x45°, bottom 51.9×40×8×45°x45° |
| Others | Geometry kit included: 0° headset cups and chainstay adaptor for 450mm CS length |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| B – Toptube Length | 603 mm | 626 mm | 651 mm | 675 mm |
| C – Bottom Bracket Drop | -14 mm | -14 mm | -14 mm | -14 mm |
| D – Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| E – Chainstay Length | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm |
| F – Seat tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| G – Effective Seattube Angle | 75.5 | 75.5° | 75.5° | 75.5° |
| H – Headtube Angle | 65° | 65° | 65° | 65° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1207 mm | 1230 mm | 1256 mm | 1283 mm |
| K – Headtube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| L – Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| M – Stack | 605 mm | 605 mm | 642 mm | 642 mm |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
