Mondraker Superfoxy Carbon RR 2023 Enduro Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 30 days of placing an order.

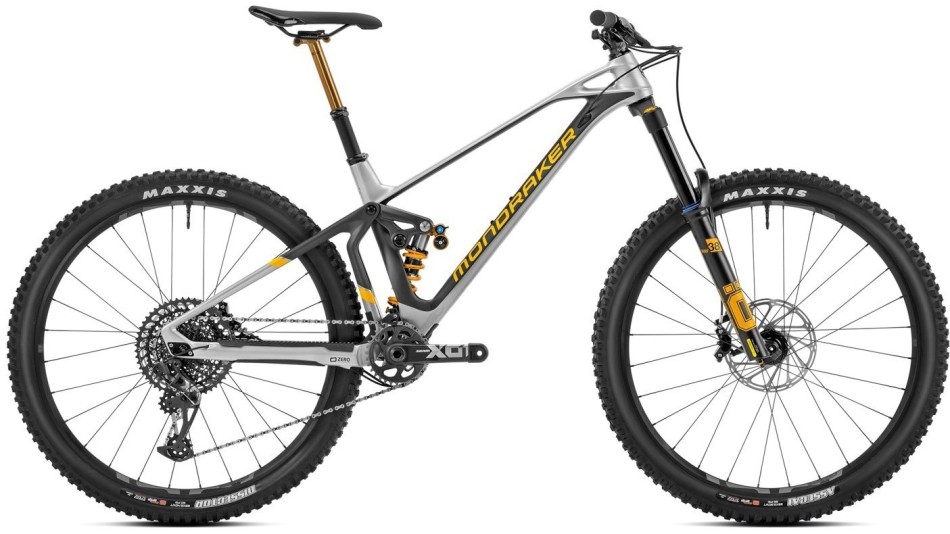

While not being a full-on DH bike, the Superfoxy Carbon RR is clearly focused on the downs with its 170mm front and 160mm rear travel. This mini-Summum will allow you to send it with the best, enjoying the lightness and feel provided by the STEALTH AIR FULL CARBON frame.
No jump, goat-track or trail will stop you from sending it flat out. Its racing DNA is self-evident in any situation, with surprising acceleration given its travel. It’s the perfect combination for those who enjoy the best descents combined with pedaling back up to the top.
What’s more, the Superfoxy Carbon RR gives you the best components on the market to take it, (and you) to the next level, highlighting the latest generation Öhlins suspension (with a coil shock at the back) and the quality of ONOFF components. A clear statement of intent.
Specification
Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12×157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included |
Rear Shock | Öhlins TTX 22M Coil 205×65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2×10mm bottom bushings |
Shock Settings | C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs |
Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15×110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5×8×45°x45°, bottom 51.9×40×8×45°x45° |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Handlebar | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
Grips | Onoff Desert, 1lock-on, 135mm |
Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5×125mm, M/L size: 418.3×150mm, XL size: 475.1×175mm |
Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
Front Brake | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads |
Rear Brake | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads |
Rims | e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
Front Hub | e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Superboost 12×157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
Front Tyre | Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead |
Rear Tyre | Maxxis Dissector 29×2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead |
Crankset | Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
Chainring | 32T, CNC-machined alloy, X-SYNC 2 |
Chain | Sram GX Eagle, 12s, Powerlock |
Rear Derrailleur | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
Shifter | Sram Trigger X01 Eagle, 12s, X-Actuation 1:1 |
Cassette | Sram XG-1275, 10-52T, 12s |
Derailleur Hanger | Mondraker M071 |
Others | Geometry kit included: 0° headset cups and chainstay adaptor for 450mm CS length |
Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
S | 165cm (5’5”) | 170cm (5’7”) |
M | 170cm (5’7”) | 180cm (5’11”) |
L | 175cm (5’9”) | 187cm (6’1”) |
XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

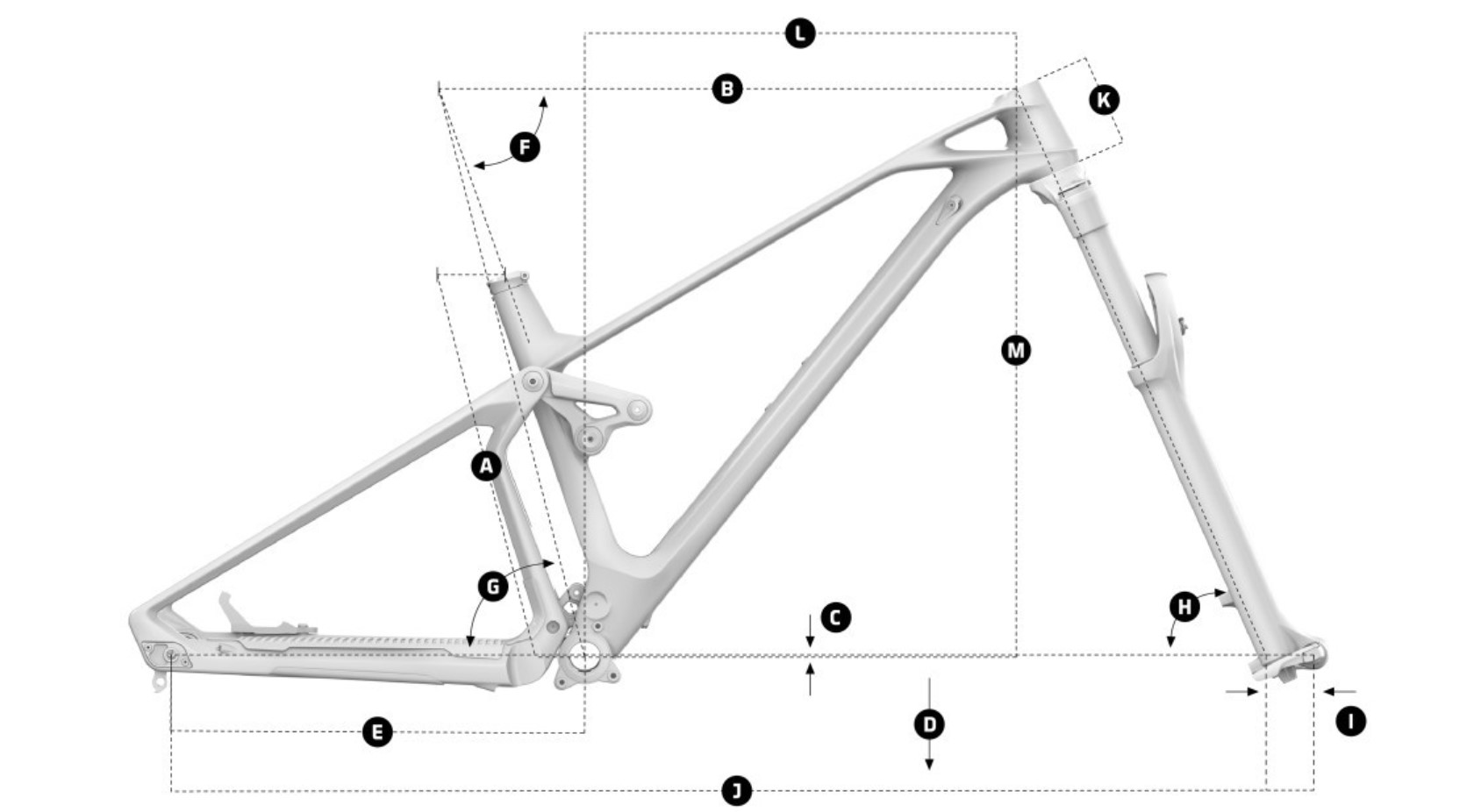

Geometry
Frame Size | S | M | L | XL |
A – Seattube Length | 380 mm | 420 mm | 470 mm | 510 mm |
B – Toptube Length | 603 mm | 626 mm | 651 mm | 675 mm |
C – Bottom Bracket Drop | -14 mm | -14 mm | -14 mm | -14 mm |
D – Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
E – Chainstay Length | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm |
F – Seat tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
G – Effective Seattube Angle | 75.5 | 75.5° | 75.5° | 75.5° |
H – Headtube Angle | 65° | 65° | 65° | 65° |
I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
J – Wheelbase | 1207 mm | 1230 mm | 1256 mm | 1283 mm |
K – Headtube Length | 90 mm | 100 mm | 115 mm | 130 mm |
L – Reach | 450 mm | 470 mm | 490 mm | 510 mm |
M – Stack | 605 mm | 605 mm | 642 mm | 642 mm |
Manufacturer | Mondraker |
---|---|
RRP | N/A |
