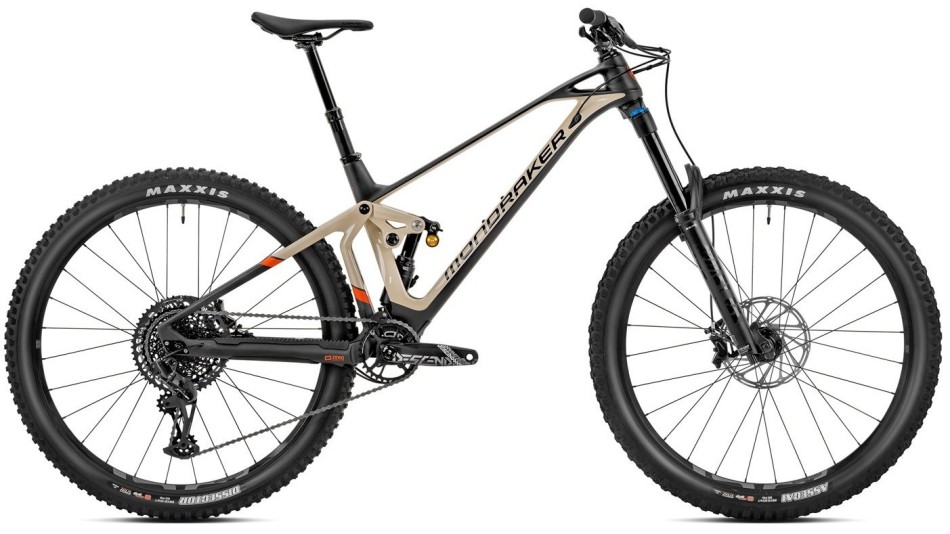

Mondraker Superfoxy Carbon R 2023 Enduro Bike
This mini-Summum will allow you to send it with the best, enjoying the lightness and feel provided by the STEALTH AIR FULL CARBON frame.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
While not being a full-on DH bike, the Superfoxy Carbon R is clearly focused on the downs with its 170mm front and 160mm rear travel. This mini-Summum will allow you to send it with the best, enjoying the lightness and feel provided by the STEALTH AIR FULL CARBON frame.
No jump, goat-track or trail will stop you from sending it flat out. Its racing DNA is self-evident in any situation, with surprising acceleration given its travel. It’s the perfect combination for those who enjoy the best descents combined with pedaling back up to the top.
Specification
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12×157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included |
| Rear Shock | Öhlins TTX Air 205×65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2×10mm bottom bushings |
| Shock Settings | C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E) |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15×110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5×8×45°x45°, bottom 51.9×40×8×45°x45° |
| Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Front Brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rims | e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12×157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Front Tyre | Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead |
| Rear Tyre | Maxxis Dissector 29×2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead |
| Crankset | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/ XL size: 175mm |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chainring | 32T, CNC-machined alloy, X-SYNC 2 |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Derailleur Hanger | Mondraker M071 |
| Others | *Optional geometry kit: 0° headset cups and chainstay adaptor for 450mm CS length |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| B – Toptube Length | 603 mm | 626 mm | 651 mm | 675 mm |
| C – Bottom Bracket Drop | -14 mm | -14 mm | -14 mm | -14 mm |
| D – Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| E – Chainstay Length | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm |
| F – Seat tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| G – Effective Seattube Angle | 75.5 | 75.5° | 75.5° | 75.5° |
| H – Headtube Angle | 65° | 65° | 65° | 65° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1207 mm | 1230 mm | 1256 mm | 1283 mm |
| K – Headtube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| L – Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| M – Stack | 605 mm | 605 mm | 642 mm | 642 mm |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
