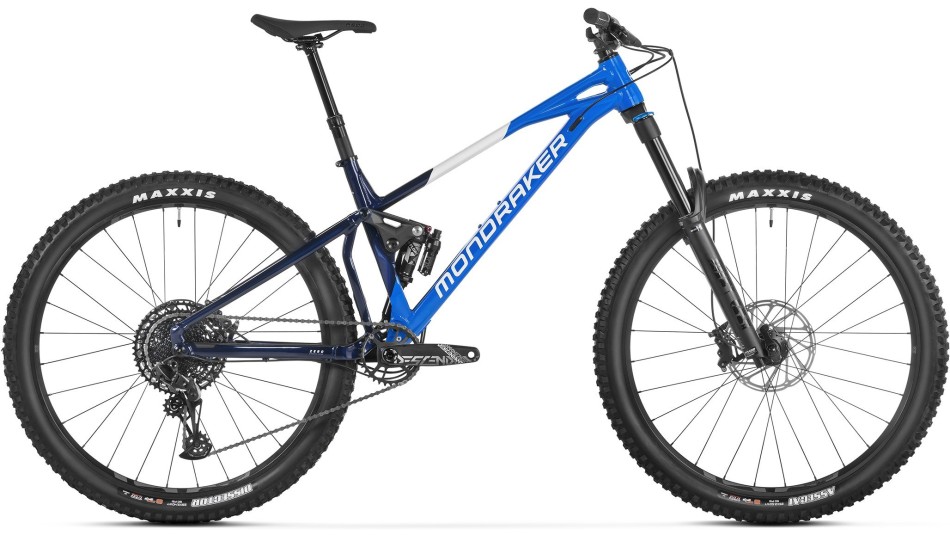

Mondraker Superfoxy 2024 Enduro Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The “baby” of the SUPERFOXY family is no toddler. Its frame is made of ultra-resistant STEALTH ALLOY aluminium, it has our unparalleled ZERO suspension system and FORWARD GEOMETRY which all add up to make you simply unstoppable.
Its 170mm of travel at the front and 160mm at the back will make you feel safe and let you thoroughly enjoy the most jaw-dropping single tracks on the map. What’s more, for the 2023 model the Superfoxy gets a tuned Fox 38 fork and a Fox Float X shock to make the bike shine in any situation.
Being the smallest of the family doesn’t mean that it’s not just as capable as its top of the range carbon big brother.
Specification
Frame | SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12×157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05 |
Rear Shock | Fox Float-X LV Performance, 205×65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2×10mm bottom bushings |
Shock Settings | Medium compression, Medium rebound, 0.2 air volume spacer |
Fork | Fox 38 29 Float GRIP RHYTHM, 170mm, tapered steerer tube, Boost 15×110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45° |
Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
Grips | Onoff Twin, 1lock-on, 135mm |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm |
Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
Front Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one piece rotor, steel-backed metal sintered pads |
Rear Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rims | e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
Front Hub | e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Superboost 12×157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
Front Tyre | Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead |
Rear Tyre | Maxxis Dissector 29×2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead |
Crankset | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/ XL size: 175mm |
Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
Chainring | 32T, CNC-machined alloy, X-SYNC 2 |
Chain | Sram SX Eagle, 12s, Powerlock |
Rear Derrailleur | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
Cassette | Sram PG-1210, 11-50T, 12s |
Derailleur Hanger | Mondraker M068 |
Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
S | 165cm (5’5”) | 170cm (5’7”) |
M | 170cm (5’7”) | 180cm (5’11”) |
L | 175cm (5’9”) | 187cm (6’1”) |
XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | S | M | L | XL |
A – Seattube Length | 380 mm | 420 mm | 470 mm | 510 mm |
B – Toptube Length | 603 mm | 626 mm | 651 mm | 675 mm |
C – Bottom Bracket Drop | -14 mm | -14 mm | -14 mm | -14 mm |
D – Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
E – Chainstay Length | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm | 440 – 450 mm |
F – Seat tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
G – Effective Seattube Angle | 75.5 | 75.5° | 75.5° | 75.5° |
H – Headtube Angle | 65° | 65° | 65° | 65° |
I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
J – Wheelbase | 1207 mm | 1230 mm | 1256 mm | 1283 mm |
K – Headtube Length | 90 mm | 100 mm | 115 mm | 130 mm |
L – Reach | 450 mm | 470 mm | 490 mm | 510 mm |
M – Stack | 605 mm | 605 mm | 642 mm | 642 mm |
