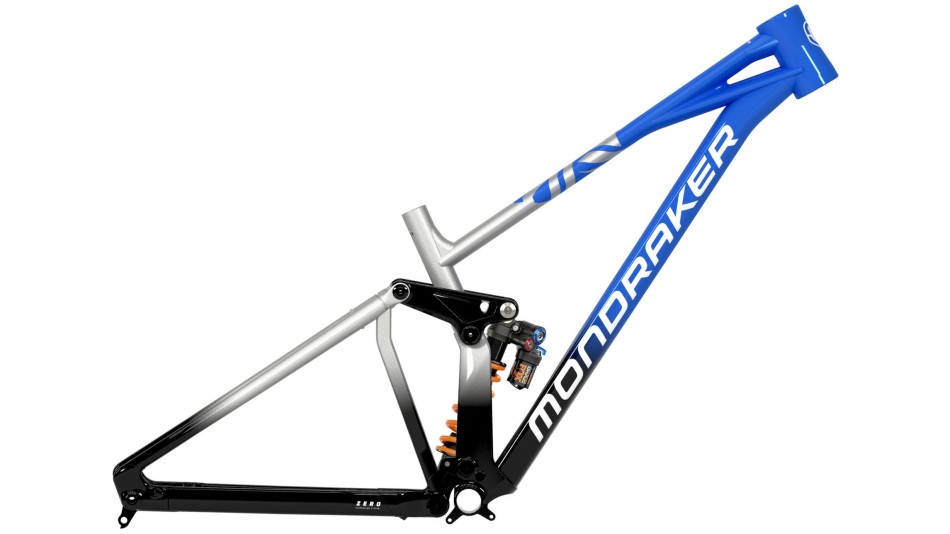

Mondraker Summum RR Mullet 2025 Downhill Frame
If you want to feel like one of our international riders this is your bike. With a frame which is new from the ground up, it’s a benchmark on the international circuit.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Shimano 105 12 Speed Cassette
Starting at: £69.99
-
Mondraker Prime G4 2025 Bronze/Grey eBike
Starting at: £2,598.99
-
Mondraker F-Play 24 2025 Kids eBike
Starting at: £2,698.99
Details
Large in stock now! Delivery in 2-3 working days. Other sizes shown available with Mondaraker Spain. Expect delivery within 8-9 working days of placing an order.
Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders.
That’s why at Mondraker we have a top-level international team: the Mondraker Factiry Racing, which includes world-class riders such as Dakotah Norton and Ronan Dunne. Our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.
Specification
| Frame | Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12×157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit |
| Rear Shock | Fox DHX2 Factory Kashima, 225×70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | CX004 compression, ECR012 rebound Rezi BX001. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs |
| Fork | |
| Headset | Onoff ZS56/ZS56, 1-1/8”, 1-1/8” steerer tube, 42×30×7×45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm |
| Stem | Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2×6mm spacer |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Small | Medium | Large | X Large |
| A – Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| B – Top Tube Length | 576 mm | 596 mm | 621 mm | 646 mm |
| C – Botom Bracket Drop | -15 mm | -15 mm | -15 mm | -15 mm |
| D – Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| E – Chainstay Length | 450 mm | 450 mm | 450 mm | 500 mm |
| F – Seat Tube Angle Actual | 69° | 69° | 69° | 69° |
| G – Seat Tube Angle Effective | 77° | 77° | 77° | 77° |
| H – Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| I – Fork Offset | 58 mm | 58 mm | 58 mm | 58 mm |
| J – Wheelbase | 1256 mm | 1270 mm | 1301 mm | 1326 mm |
| K – Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm |
| L – Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| M – Stack | 632 mm | 632 mm | 632 mm | 632 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 5 |
| Intended Use | Extreme sports |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Extreme jumps followed by landings on sloping terrain or descents on unpaved roads at speeds of more than 40 km/h or a combination thereof |
| Recommended riding skills | Extreme technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
