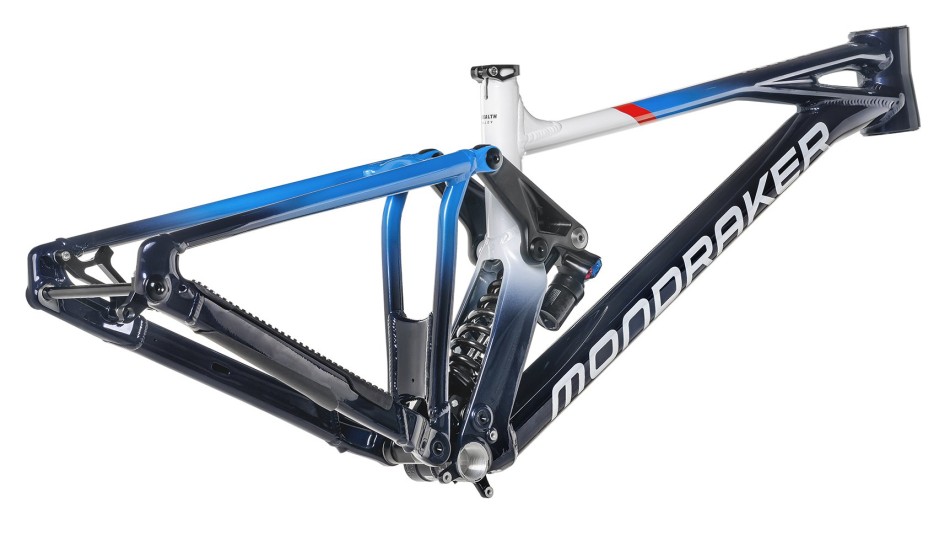

Mondraker Summum R 2024 Downhill Frame
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
If you want to feel like one of our international riders this is your bike. With a frame which is new from the ground up, it’s a benchmark on the international circuit.
It’s built using Mondraker’s groundbreaking technologies including MIND, a telemetry system which helps you give it your all thanks to the optimization of your suspension, the ZERO SUSPENSION SYSTEM.
Designed for use with 29” wheels front and back.
Specification
Frame | Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12×157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit |
Rear Shock | Fox DHX2 Performance Elite, 225×70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30×8mm bottom bushings |
Shock Settings | ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs |
Headset | ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, 41×30.15×7×45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm |
Others | *Optional geometry kit: +-1° / +-2° headset cups |
Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
S | 165cm (5’5”) | 170cm (5’7”) |
M | 170cm (5’7”) | 180cm (5’11”) |
L | 175cm (5’9”) | 187cm (6’1”) |
XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | S | M | L | XL |
A – Seat Tube Length | 400mm | 400mm | 400mm | 400mm |
B – Top Tube Length | 575mm | 595mm | 620mm | 645mm |
C – Bottom Bracket Drop | -20mm | -20mm | -2 mm | -20mm |
D – Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
E – Chain Stay Length | 455+/-5mm | 455+/-5mm | 455+/-5mm | 455+/-5mm |
F – Seat Tube Angle | 69° | 68.5º | 69° | 69° |
G – Effective Seat Tube Angle | 77° | 77° | 77° | 77° |
H – Head Tube Angle | 63º | 63.5º | 63.5º | 63.5º |
I – Fork Offset | 56mm | 56mm | 56mm | 56mm |
J – Wheelbase | 1260mm | 1270mm | 1295mm | 1320mm |
K – Head Tube Length | 110mm | 110mm | 112mm | 112mm |
L – Reach | 430mm | 450mm | 475mm | 500mm |
M – Stack | 632mm | 633mm | 632mm | 632mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Mondraker |
---|---|
RRP | No |
