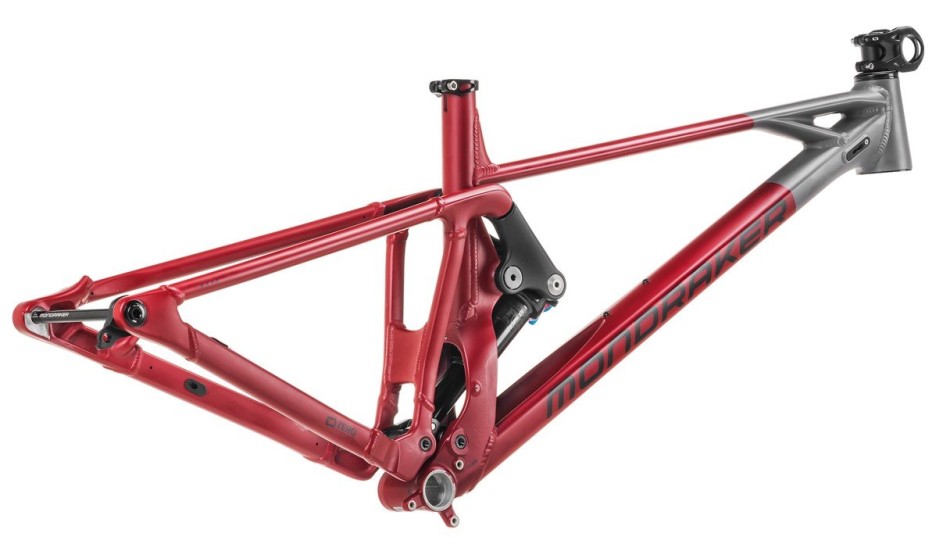

Mondraker Raze R 2024 Trail Frameset

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Our philosophy is all about having fun. We ride Mountain Bikes because we love the mountains and we want to enjoy ourselves on the best bikes available.

Raze is the much anticipated, highly innovative trail bike from Mondraker combining the best of XC with the best of Enduro to create a bike without limits.

With 150mm travel at the front and 130mm at the rear, the new Raze is not a normal trail bike. The definition of a trail bike isn’t based on suspension travel, but rather on functionality.

Regarding its geometry, Mondraker’s FORWARD GEOMETRY has been specifically adapted to the Raze, providing Trail characteristics with Enduro aspirations, thus taking into account the dimensions needed to provide an optimal stance while balancing metrics for versatility. Its 65.5º head angle and 76.5º seat tube angle combined with spacious reach figures offer the best possible dimensions when considering Trail use under all riding conditions.

Specification

Frame	Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12×148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Rear Shock	Fox Float DPS LV EVOL Performance, 205×57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30×8mm bottom bushings
Shock Settings	Light compression, light rebound, air volume spacer 0.6
Headset	Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45°
Derailleur Hanger	Sram UDH
Max System Weight	120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seat Tube Length	375mm	415mm	445mm	500mm
B – Top Tube Length	595mm	620mm	645mm	670mm
C – Bottom Bracket Drop	-30mm	-30mm	-30mm	-30mm
D – Bottom Bracket Height	343mm	343mm	343mm	343mm
E – Chain Stay Length	435mm	435mm	435mm	435mm
F – Seat Tube Angle	71°	71°	71°	71°
G – Effective Seat Tube Angle	76.5°	76.5°	76.5°	76.5°
H – Head Tube Angle	65.5°	65.5°	65.5°	65.5°
I – Fork Offset	44mm	44mm	44mm	44mm
J – Wheelbase	1193mm	1217mm	1243mm	1269mm
K – Head Tube Length	90mm	100mm	115mm	130mm
L – Reach	455mm	475mm	495mm	515mm
M – Stack	608mm	617mm	631mm 6	45mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
