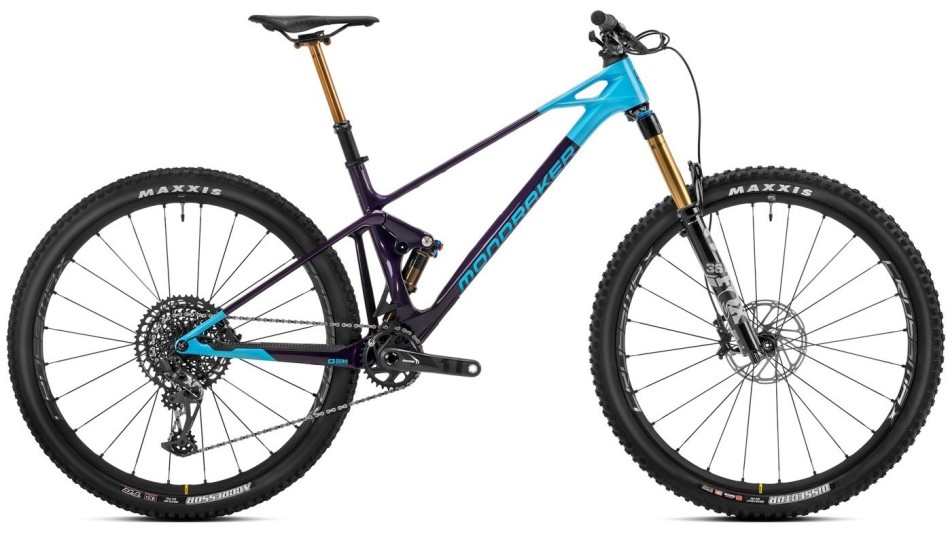

Mondraker Raze Carbon RR 2025 Trail Bike

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Our philosophy is all about having fun. We ride Mountain Bikes because we love the mountains and we want to enjoy ourselves on the best bikes available.

Raze is the much anticipated, highly innovative trail bike from Mondraker combining the best of XC with the best of Enduro to create a bike without limits.

With 150mm travel at the front and 130mm at the rear, the new Raze is not a normal trail bike. The definition of a trail bike isn’t based on suspension travel, but rather on functionality.

The new range of Raze models also comes equipped with our exclusive MIND telemetry system as standard which helps you set up your suspension in an instant and enjoy a whole new world of possibilities such as having all the info of each ride at your fingertips, seeing how both the fork and shock have performed at all times, showing you all the parameters relating to your time in the air and giving you a detailed end of ride analysis thanks to the MyMondraker app.

Regarding its geometry, Mondraker’s FORWARD GEOMETRY has been specifically adapted to the Raze, providing Trail characteristics with Enduro aspirations, thus taking into account the dimensions needed to provide an optimal stance while balancing metrics for versatility. Its 65.5º head angle and 76.5º seat tube angle combined with spacious reach figures offer the best possible dimensions when considering Trail use under all riding conditions.

Specification

Frame	Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12×148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Rear Shock	Fox Float DPS Factory Kashima evol LV, 205×57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30×8mm bottom bushings
Shock Settings	Light compression, light rebound, air volume spacer 0.6
Fork	Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset	Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem	Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar	Onoff Kripton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	Onoff Desert, 1lock-on, 135mm
Seatpost	Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5×125mm, M size: 418.3×150mm, L/XL size: 475.1×175mm
Saddle	Fizik Antares R7
Front Brake	Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake	Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims	Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes	24 straight-pull double butted spokes
Front Hub	Infinity hub, Boost 15×110mm, IS 6 bolts
Rear Hub	Infinity hub, ID360 freewheel technology, Boost 12×148mm, IS 6 bolts
Front Tyre	Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear Tyre	Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset	Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Chainring	32T, CNC-machined alloy, X-SYNC 2
Bottom Bracket	Sram DUB BSA, sealed bearings, 73mm
Chain	Sram GX Eagle, 12s, Powerlock
Rear Derailleur	Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
Shifter	Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Cassette	Sram XG-1275, 10-52T, 12s
Derailleur Hanger	Sram UDH
Max System Weight	120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seat Tube Length	375mm	415mm	445mm	500mm
B – Top Tube Length	595mm	620mm	645mm	670mm
C – Bottom Bracket Drop	-30mm	-30mm	-30mm	-30mm
D – Bottom Bracket Height	343mm	343mm	343mm	343mm
E – Chain Stay Length	435mm	435mm	435mm	435mm
F – Seat Tube Angle	71°	71°	71°	71°
G – Effective Seat Tube Angle	76.5°	76.5°	76.5°	76.5°
H – Head Tube Angle	65.5°	65.5°	65.5°	65.5°
I – Fork Offset	44mm	44mm	44mm	44mm
J – Wheelbase	1193mm	1217mm	1243mm	1269mm
K – Head Tube Length	90mm	100mm	115mm	130mm
L – Reach	455mm	475mm	495mm	515mm
M – Stack	608mm	617mm	631mm 6	45mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 3
Intended Use	Sport and competition riding with moderate technical demands of the trails
Intended Terrain	Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 60 cm
Recommended riding skills	Technical skills and practice required
Attention	Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2
