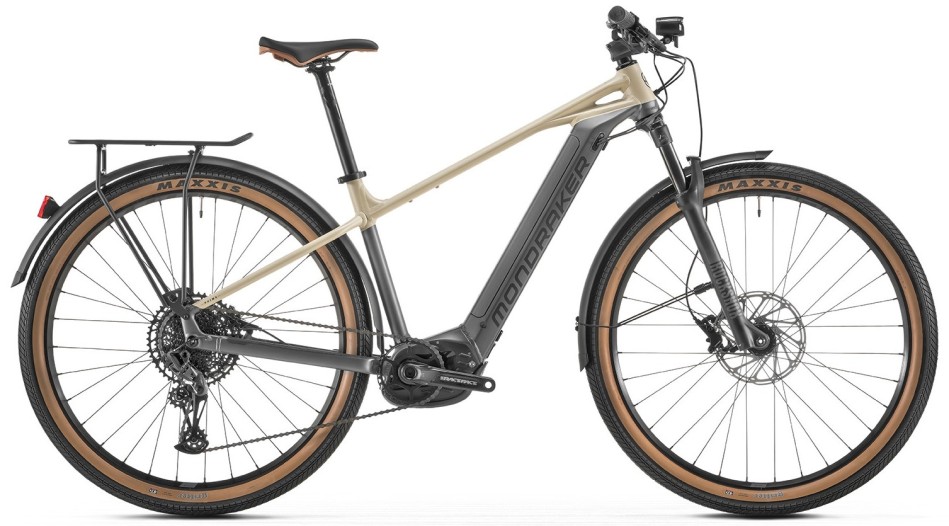

Mondraker Prime X 2022 Graphite/Gray eBike
The Prime X is our hallmark urban cross model which lets you enjoy your bike in your own style with comfort and confidence.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Reaction Hybrid Pro 800 2025 Grey/Black eMTB
Starting at: £2,799.00
-
Mondraker Chaser 2025 Orange/Grey eMTB
Starting at: £4,599.00
Details
The Prime X is our hallmark urban cross model which lets you enjoy your bike in your own style with comfort and confidence.
Whether on the road or in the countryside out in the middle of nowhere, the sensation of pedaling along and racking up the distance will put a smile on your face from ear to ear. Its 120mm travel fork, mudguards, luggage rack and lights mean you’ll be entering a world that you won’t want to come back from.
Commute to work in the morning, finish work, and then enjoy the tranquility offered by the surrounding tracks and countryside which surround you on the way home.
Its Bosch Performance Line CX G4 engine means the only limits are those set by you, and given its unique looks and personality you’ll be the envy of everyone around you.
Specification
| Frame | Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12×148mm rear axle, integrated dropout speed sensor |
| Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15×110mm axle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | MDK Urban 35mm, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | ONOFF Shaper |
| Seatpost | ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Front Brake | SRAM Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Grifter 29×2.5, single compound, 60TPI, wire bead, tanned wall |
| Rear Tyre | Maxxis Grifter 29×2.5, single compound, 60TPI, wire bead, tanned wall |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Front Light | 50LUX output DC 6-12V, waterproof Alloy cage |
| Rear Light | Fender Mount, w/ Reflective, e-bike version, 6-12V |
| Fenders | Alloy black MDK custom fenders |
| Rack | Alloy MDK rear Rack, Max loading 25kg |
| Kickstand | Massload KSA18-40 |
| Quoted Weight | 23.6kg |
| Display | Bosch Purion |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 |
| Battery | Bosch Powertube 625Wh |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | XS | S | M | L | XL |
| A – Seat Tube Length | 380mm | 390mm | 430mm | 470mm | 510mm |
| B – Top Tube Length | 600mm | 615mm | 645mm | 670mm | 700mm |
| C – Bottom Bracket Drop | -70mm | -70mm | -70 mm | -70mm | -70mm |
| D – Bottom Bracket Height | 308mm | 308mm | 308mm | 308mm | 308mm |
| E – Chain Stay Length | 455mm | 455mm | 455mm | 455mm | 455mm |
| F – Seat Tube Angle | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º |
| G – Effective Seat Tube Angle | 74.5º | 74.5° | 74.5° | 74.5º | 74.5° |
| H – Head Tube Angle | 70° | 70° | 70° | 70° | 70° |
| I – Fork Offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| J – Wheelbase | 1132 mm | 1148mm | 1178mm | 1205mm | 123 mm |
| K – Head Tube Length | 110mm | 110mm | 110mm | 130mm | 130mm |
| L – Reach | 415mm | 430mm | 460mm | 485mm | 510mm |
| M – Stack | 630mm | 630mm | 630mm | 648mm | 648mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | N/A |
