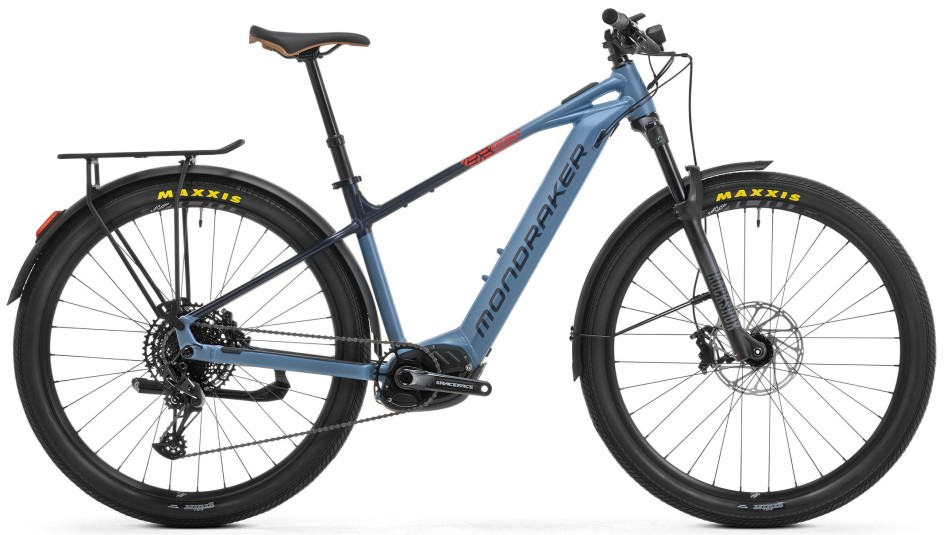

Mondraker Prime RX 2025 eBike
Prime RX keeps your tyres glued to the ground whether your thing is getting around the city hassle free or just commuting
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Shimano 105 12 Speed Cassette
Starting at: £69.99
-
Mondraker Prime G4 2025 Bronze/Grey eBike
Starting at: £2,598.99
-
Mondraker F-Play 24 2025 Kids eBike
Starting at: £2,698.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Prime RX keeps your tyres glued to the ground whether your thing is getting around the city hassle free or just commuting. That’s why we fitted Maxxis Grifter tyres. Their minimalist knobs are perfect for gripping that unforgiving, abrasive asphalt. You’ll have more than enough power with the Bosch CX motor, and range.
120mm RockShox forks soak up the unexpected awaiting you around the next corner, and the mudguards, lights and pannier rack offer you amazing versatility. Just the ticket for the city, and for your weekend family getaways too.
Disconnect from the daily grind and enjoy getting out on your bike, whether on-road or off.
Specification
| Frame | Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12×148mm rear axle, integrated dropout speed sensor |
| Fork | RockShox 35 Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, Boost 15×110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | MDK Urban 35mm, 6061 forged alloy, 31.8mm barbore |
| Handlebar | MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Grips | Onoff Shaper |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm |
| Saddle | MDK urban |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Grifter 29×2.5, single compound, 60TPI, wire bead, tanned wall |
| Rear Tyre | Maxxis Grifter 29×2.5, single compound, 60TPI, wire bead, tanned wall |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Front Light | 50LUX output DC 6-12V, waterproof Alloy cage |
| Rear Light | Fender Mount, w/ Reflective, e-bike version, 6-12V |
| Fenders | Alloy black MDK custom fenders |
| Rack | Alloy MDK rear Rack, Max loading 25kg |
| Kickstand | Massload KSA18-40 |
| Display | Bosch System Controller / Bosch Intuvia 100 |
| Remote | Bosch Mini Remote |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 |
| Battery | Bosch Powertube 750Wh Smart System |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | X Small | Small | Medium | Large | X Large |
| A – Seat Tube Length | 380 mm | 390 mm | 430 mm | 470 mm | 510 mm |
| B – Top Tube Length | 600 mm | 615 mm | 645 mm | 670 mm | 700 mm |
| C – Botom Bracket Drop | -70 mm | -70 mm | -70 mm | -70 mm | -70 mm |
| D – Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| E – Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| F – Seat Tube Angle Actual | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| G – Seat Tube Angle Effective | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| H – Head Tube Angle | 70° | 70° | 70° | 70° | 70° |
| I – Fork Offset | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| J – Wheelbase | 1132 mm | 1148 mm | 1178 mm | 1205 mm | 1235 mm |
| K – Head Tube Length | 110 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| L – Reach | 415 mm | 430 mm | 460 mm | 485 mm | 510 mm |
| M – Stack | 630 mm | 630 mm | 630 mm | 648 mm | 648 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
