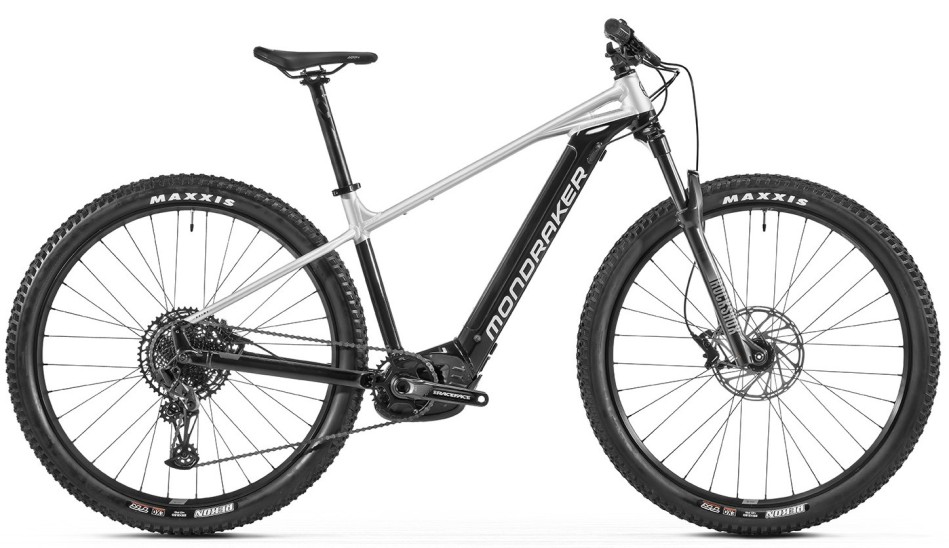

Mondraker Prime 29 2022 Silver/Black eMTB
If you want to enter the world of light ebikes equipped with powerful engines, the Prime is your bike in the Mondraker range.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Mondraker Neat RR 2024 Light eMTB
Starting at: £8,499.00
-
Maxxis Aggressor 29 x 2.50 WT 120 TPI Foldable Dual Compound TR / DD
RRP: £84.99
Our price £72.49
-
Hope Tech V4 Brake Pads Sintered
£20.00
Details
If you want to enter the world of light ebikes equipped with powerful engines, the Prime is your bike in the Mondraker range.
An optimized Bosch Performance Line CX Cruise GEN4 motor offers ideal pedaling assistance wherever you plan to ride.
We’ve adapted our FORWARD GEOMETRY to offer you limitless ways of spending as many hours as you want riding. With the option of 29” or 27.5”+ wheels, comfort and lightness are its most outstanding characteristics so you can enjoy your Prime on any terrain.
The RockShox Recon Silver RL fork with 120 mm of travel will keep you comfy while letting you face all the challenges your heart desires.
Specification
| Frame | Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12×148mm rear axle, integrated dropout speed sensor |
| Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15×110mm axle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | ONOFF Diamond, 1lock-on, 135mm |
| Seatpost | ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Front Brake | SRAM Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Display | Bosch Purion |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 |
| Battery | Bosch Powertube 625Wh |
| Quoted Weight | 22.2kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | XS | S | M | L | XL |
| A – Seat Tube Length | 380mm | 390mm | 430mm | 470mm | 510mm |
| B – Top Tube Length | 600mm | 615mm | 645mm | 670mm | 700mm |
| C – Bottom Bracket Drop | -60mm | -60mm | -60 mm | -60mm | -60mm |
| D – Bottom Bracket Height | 318mm | 318mm | 318mm | 318mm | 318mm |
| E – Chain Stay Length | 455mm | 455mm | 455mm | 455mm | 455mm |
| F – Seat Tube Angle | 73.5º | 73.5º | 73.5º | 73.5º | 73.5º |
| G – Effective Seat Tube Angle | 73.5º | 73.5° | 73.5° | 73.5º | 73.5° |
| H – Head Tube Angle | 69° | 69° | 69° | 69° | 69° |
| I – Fork Offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| J – Wheelbase | 1138mm | 1153mm | 1183mm | 1210mm | 1240mm |
| K – Head Tube Length | 110mm | 110mm | 110mm | 130mm | 130mm |
| L – Reach | 410mm | 425mm | 455mm | 480mm | 505mm |
| M – Stack | 640mm | 640mm | 640mm | 658mm | 658mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | N/A |
