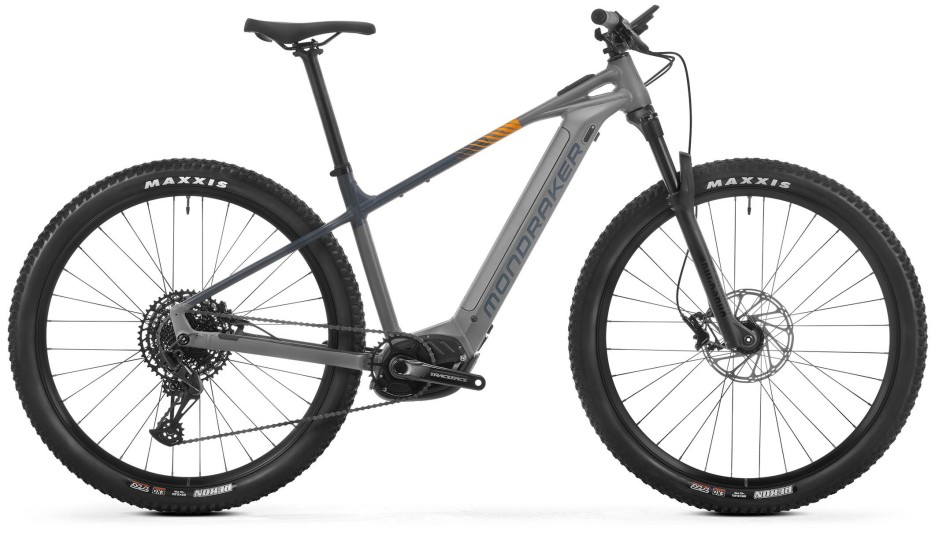

Mondraker Prime 2025 Grey/Orange eMTB
The reliability of an aluminium frame, perfectly balanced with the latest version of Bosch’s CX motor and components to instil confidence on your rides
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
Marin Rift Zone E 2025 eMTB
Starting at: £2,848.99
-
Marin Alpine Trail XR 2023 Enduro Bike
Starting at: £2,148.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
It’s easier because Prime keeps things simple. The reliability of an aluminium frame, perfectly balanced with the latest version of Bosch’s CX motor and components to instil confidence on your rides. Prime might be your first ebike but it certainly won’t be your last.
Specification
| Frame | Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12×148mm rear axle, integrated dropout speed sensor |
| Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15×110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff ZS44/ZS56, 1-1/8”, 1.5” head tube, ACB sealed bearings, top 42×30×7×45ºx45º, bottom 52×40×8×45ºx45º |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Grips | Onoff Beehive, 1lock-on, 135mm |
| Seatpost | Onoff S3 0-R, diameter 31.6mm, length 400mm |
| Saddle | MDK ebike black |
| Front Brake | Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect-R ebike, 160mm |
| Chainring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram SX Eagle,12s |
| Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 625Wh |
| Display/Remote | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Quoted Weight | 22,7 kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | X Small | Small | Medium | Large | X Large |
| A – Seat Tube Length | 380 mm | 390 mm | 430 mm | 470 mm | 510 mm |
| B – Top Tube Length | 600 mm | 615 mm | 645 mm | 670 mm | 700 mm |
| C – Botom Bracket Drop | -70 mm | -70 mm | -70 mm | -70 mm | -70 mm |
| D – Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| E – Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| F – Seat Tube Angle Actual | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| G – Seat Tube Angle Effective | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| H – Head Tube Angle | 70° | 70° | 70° | 70° | 70° |
| I – Fork Offset | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| J – Wheelbase | 1132 mm | 1148 mm | 1178 mm | 1205 mm | 1235 mm |
| K – Head Tube Length | 110 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| L – Reach | 415 mm | 430 mm | 460 mm | 485 mm | 510 mm |
| M – Stack | 630 mm | 630 mm | 630 mm | 648 mm | 648 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 3 |
| Intended Use | Sport and competition riding with moderate technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 60 cm |
| Recommended riding skills | Technical skills and practice required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
