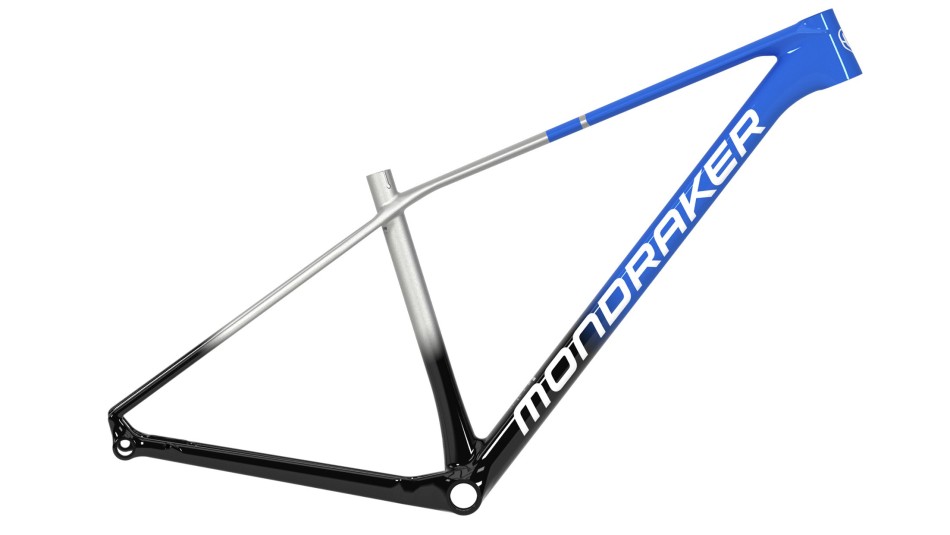

Mondraker Podium RR SL 2025 Cross Country Frameset
Our STEALTH AIR FULL CARBON technology lets us optimize every point of the frame to withstand the fatigue a first-rate hardtail needs to endure while keeping the weight as low as possible
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Stereo Hybrid One44 HPC Action Team 800 2025 Carbon/Gold eMTB
Starting at: £6,499.00
-
Cube Stereo Hybrid One55 C:68X SLT 2024 Prizm/Silver eMTB
Starting at: £5,899.99
-
Cube AMS Hybrid One44 C:68X TM 400X 2025 Grey/Purple eMTB
Starting at: £5,999.00
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Our STEALTH AIR FULL CARBON technology lets us optimize every point of the frame to withstand the fatigue a first-rate hardtail needs to endure while keeping the weight as low as possible. Not surprisingly, it’s the bike which the members of the PMX Racing Team compete on at the World Cup races when conditions do not require a full suspension bike like the F-Podium DC.
It is, without a doubt, the most effective and the lightest hardtail we have ever been able to make after more than 20 years of experience making very effective high-level bikes.
Specification
| Frame | Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12×148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, |
| Headset | Onoff IS42/IS52, 1-1/8”, 1.5” head tube, sealed bearings |
| Stem | OnOff S9 Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep, S size: 55mm length -12º rise, M size: 55mm length -12º L size: 65mm length -14º rise, XL size: 75mm length -15º rise |
| Quoted Weight | ? |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Small | Medium | Large | X Large |
| A – Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| B – Top Tube Length | 590 mm | 611 mm | 632 mm | 650 mm |
| C – Botom Bracket Drop | -65 mm | -65 mm | -65 mm | -65 mm |
| D – Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| E – Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| F – Seat Tube Angle Actual | 73° | 73° | 73° | 73° |
| G – Seat Tube Angle Effective | 74.5° | 74.5° | 74.5° | 74.5° |
| H – Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1107 mm | 1128 mm | 1150 mm | 1170 mm |
| K – Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| L – Reach | 425 mm | 444 mm | 463 mm | 477 mm |
| M – Stack | 598 mm | 602 mm | 611 mm | 625 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 3 |
| Intended Use | Sport and competition riding with moderate technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 60 cm |
| Recommended riding skills | Technical skills and practice required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
