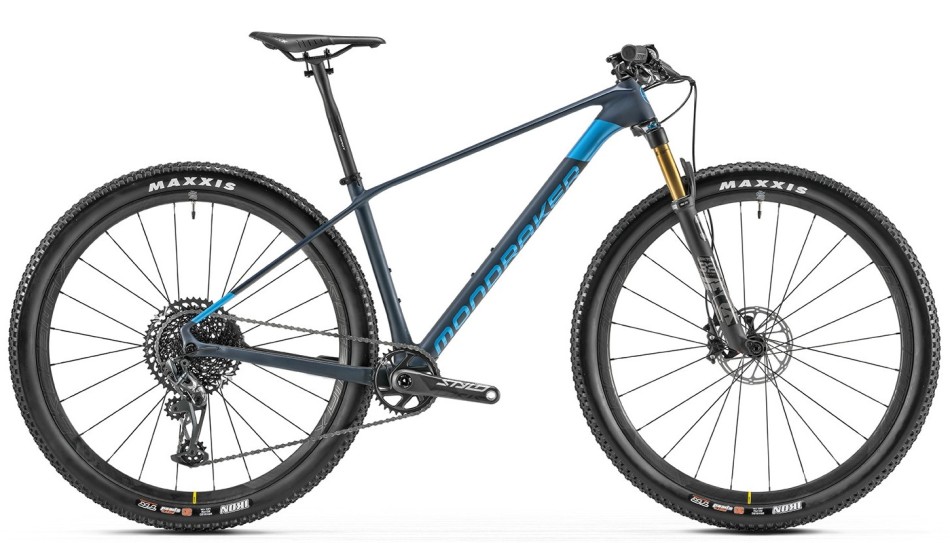

Mondraker Podium Carbon R 2022 Cross Country Bike
Podium R is the heir to the very best we’re capable of here at Mondraker
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Marin Gestalt 2025 Black Gravel Bike
Starting at: £849.00
-
Mondraker F-Podium RR SL 2024 Cross Country Bike
Starting at: £9,374.99
-
Madison Flux Men's Shorts Phantom
Starting at: £69.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 30 days of placing an order.
Podium Carbon R is the heir to the very best we’re capable of here at Mondraker
STEALTH AIR CARBON and XC FORWARD GEOMETRY adapted to the lightest production frame in the world are credentials enough to show that the Podium R is the heir to the very best we’re capable of here at Mondraker.
With an overall weight of under 9 kilos, it’s the ideal bike for anyone competitive by nature who wants to give it all they’ve got every time they go for a ride, whether that’s at a local weekend race, a UCI points event, or even in a World Cup race against the best riders on the planet!
Specification
| Frame | Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12×148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible. |
| Fork | Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15×110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload |
| Headset | ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5×8×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Fork Remote | Fox single pull |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| Handlebar | ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | ONOFF Diamond, 1lock-on, 135mm |
| Seatpost | ONOFF Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm |
| Saddle | Fizik Antares R7 |
| Front Brake | SRAM Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Wheelset | Mavic Crossmax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes |
| Front Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Rear Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Crankset | Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Cassette | SRAM XG-1275, 10-50T, 12s |
| Derailleur Hanger | SRAM UDH |
| Quoted Weight | 8.9kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 390mm | 420mm | 470mm | 510mm |
| B – Top Tube Length | 590mm | 611mm | 632mm | 650mm |
| C – Bottom Bracket Drop | -65mm | -65mm | -65mm | -65mm |
| D – Bottom Bracket Height | 300mm | 300mm | 300mm | 300mm |
| E – Chainstay Length | 430mm | 430mm | 430mm | 430mm |
| F – Seat Tube Angle | 73° | 73° | 73° | 73° |
| G – Effective Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| H – Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1107mm | 1128mm | 1150mm | 1170mm |
| K – Head Tube Length | 85mm | 90mm | 100mm | 115mm |
| L – Reach | 425mm | 444mm | 463mm | 477mm |
| M – Stack | 598mm | 602mm | 611mm | 625mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | N/A |
