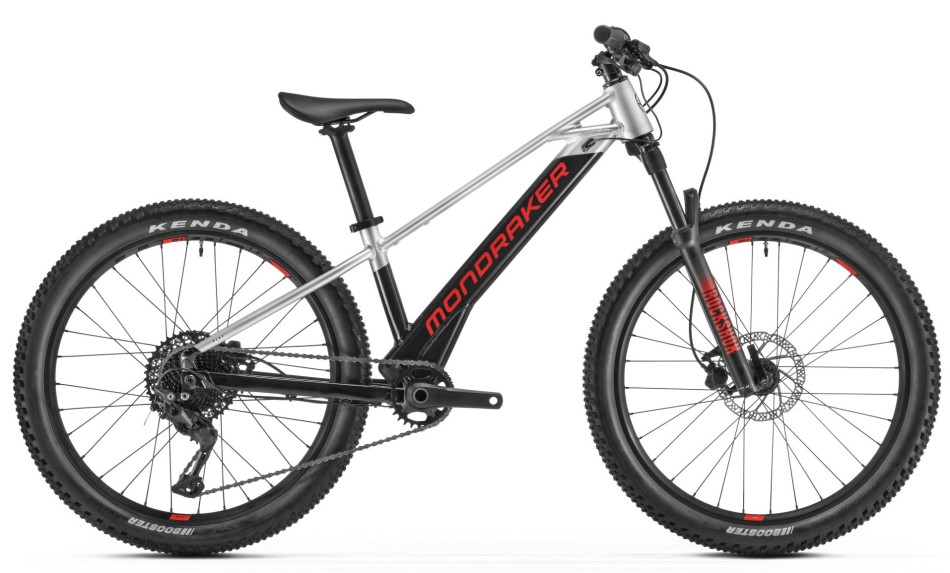

Mondraker Play 24 2022 Kids eBike

20 years manufacturing high-end bikes is what gives us the experience to say that with the play 26 your children will have the perfect bike to have mountains of fun on.

Availability: Sold out

Product Name Price

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.

Mondraker

Recently Viewed

Details

20 years manufacturing high-end bikes is what gives us the experience to say that with the play 24 your children will have the perfect bike to have mountains of fun on.

Playful like no other, its 100mm travel front suspension will allow them to enjoy both the descents and the climbs, thanks in large part to the Mahle Ebikemotion X-35 motor and a 250Wh internal battery, combining together to give you range to spare and opening the door to some fabulous adventures.

And when you finish your ride and see the smiles on their faces, you’ll be impatient for the next day to come around so you can do it all again, together. Those are the best days, the priceless days, the ones that make you both wonder just how good they’ll get.

Specification

Frame Play 24 6061 Alloy Stealth Evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Fork RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9×100mm axle, 30mm steel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º
Stem ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips ONOFF Twin, 1lock-on, 135mm
Seatpost MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm
Saddle SDG Fly JR
Front Brake SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear Brake SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Lever SRAM Level, tooled reach adjust, lever pivot bushings
Rims MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes CN round stainless steel
Front Hub Formula DC20LW, 9×100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub Mahle-Ebikemotion X-35
Front Tyre Kenda Booster 24×2.4 single compound 30TPI, wire bead
Rear Tyre Kenda Booster 24×2.4 single compound 30TPI, wire bead
Crankset Prowheel, Direct mount chain ring, 127mm
Chainring 28T, steel
Bottom Bracket Prowheel BSA, 73mm
Chain SRAM PC1110 11s, Powerlock
Rear Derailleur SRAM NX, 11s, long cage, X-actuation 1:1
Shifter SRAM trigger NX 11s, X-actuation 1:1
Cassette SRAM PG 1030 11-42T, 11s
Derailleur Hanger Mondraker M073
Weight 15.1 kg
Display Mahle-Ebikemotion
Motor Mahle-Ebikemotion X-35
Battery Mahle-Ebikemotion Internal 250Wh

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
One Size 135cm (4’5”) 155cm (5’1”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size One Size
A – Seat Tube Length 320mm
B – Top Tube Length 517mm
C – Bottom Bracket Drop -30mm
D – Bottom Bracket Height 280mm
E – Chain Stay Length 405mm
F – Seat Tube Angle 72º
G – Effective Seat Tube Angle 72º
H – Head Tube Angle 68º
I – Fork Offset 39mm
J – Wheelbase 994 mm
K – Head Tube Length 100mm
L – Reach 350mm
M – Stack 537mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Additional Information
Manufacturer Mondraker
RRP N/A
