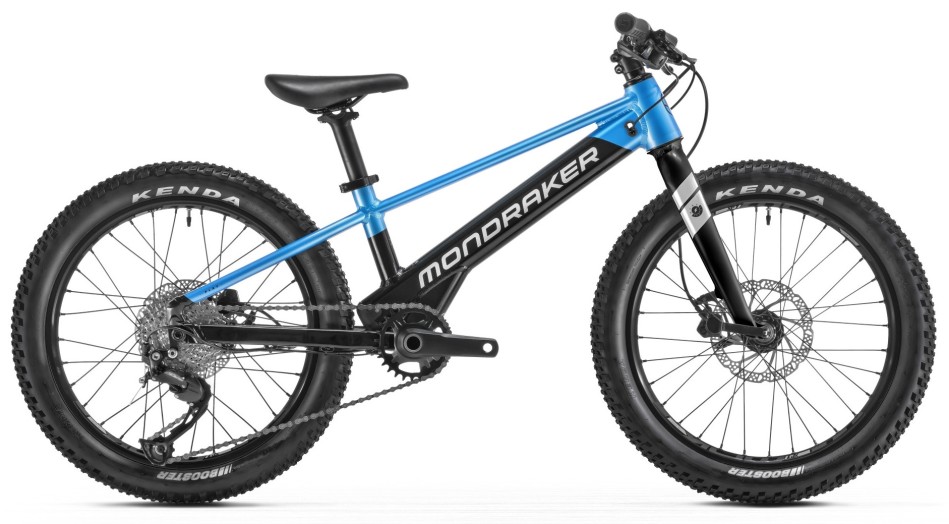

Mondraker Play 20 2022 Kids eBike
Are we crazy or what? Well maybe we are, but we love crazy stuff. Wouldn't you have wanted it for yourselves when you were a kid?
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Marin Gestalt 2025 Black Gravel Bike
Starting at: £849.00
-
Mondraker F-Podium RR SL 2024 Cross Country Bike
Starting at: £9,374.99
-
Madison Flux Men's Shorts Phantom
Starting at: £69.99
Details
Are we crazy or what? Well maybe we are, but we love crazy stuff. Wouldn’t you have wanted it for yourselves when you were a kid?
That’s what we thought! If you already have a small rider at home, the Play 20 is ideal to get them started on their way to being a future champion.
Best of all, it has the same motor and battery as its older siblings: the Mahle Ebikemotion X-35 motor with a 250Wh battery to give you plenty of range.
Can you imagine how many kilometres of fun together you have waiting ahead of you?
Specification
| Frame | Play 20 6061 Alloy Stealth Evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
| Fork | MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Kids |
| Seatpost | MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm |
| Saddle | SDG Fly JR |
| Front Brake | SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-XP1 20 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC20LW, 9×100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35 |
| Front Tyre | Kenda Booster 20×2.4 single compound 30TPI, wire bead |
| Rear Tyre | Kenda Booster 20×2.4 single compound 30TPI, wire bead |
| Crankset | Prowheel, Direct mount chain ring, 114mm |
| Chainring | 28T, steel |
| Bottom Bracket | Prowheel BSA, 73mm |
| Chain | SRAM PC951 9s, Powerlock |
| Rear Derailleur | Microshift M26S, 9s, short cage |
| Shifter | Microshift Mezzo TS39-9, 9s |
| Cassette | Microshift Mezzo 11-34T, 9s |
| Derailleur Hanger | Mondraker M073 |
| Display | Mahle-Ebikemotion |
| Motor | Mahle-Ebikemotion X-35 |
| Battery | Mahle-Ebikemotion Internal 250Wh |
| Quoted Weight | 12.9 kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| One Size | 120cm (3’11”) | 135cm (4’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | One Size |
| A – Seat Tube Length | 260mm |
| B – Top Tube Length | 475mm |
| C – Bottom Bracket Drop | -15mm |
| D – Bottom Bracket Height | 240mm |
| E – Chain Stay Length | 355mm |
| F – Seat Tube Angle | 72º |
| G – Effective Seat Tube Angle | 72º |
| H – Head Tube Angle | 68º |
| I – Fork Offset | 45mm |
| J – Wheelbase | 903mm |
| K – Head Tube Length | 100mm |
| L – Reach | 340mm |
| M – Stack | 387mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | N/A |
