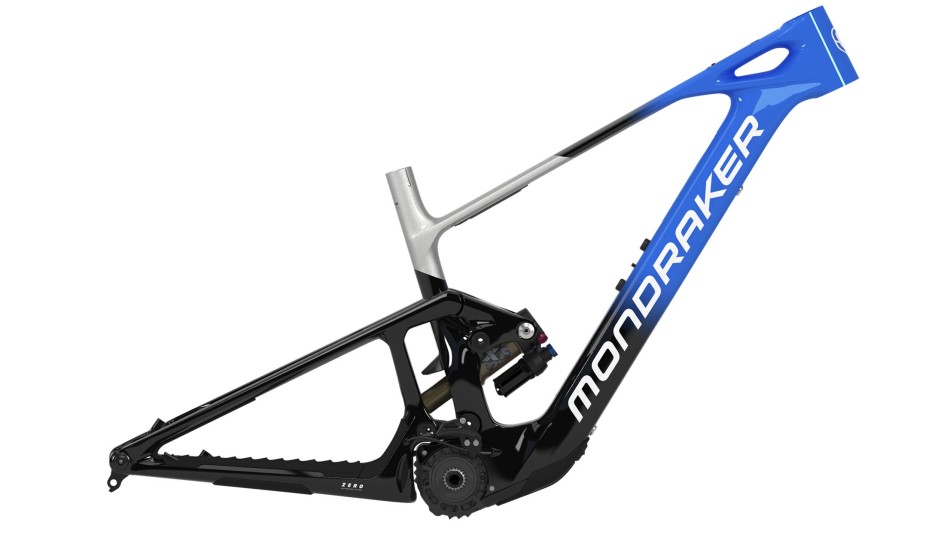

Mondraker Neat RR SL 2025 Powered Frameset

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader. Please everyone, stand up and welcome the NEAT.

Three years ago, we started a project with a mission. Just one. To create a new generation of ebikes that would redefine the current concept of mountain biking. A new category which would enhance the very best version of yourself as a rider, to make you faster, everywhere. Powerful yet silent. Stable yet agile. A mission we dubbed NEAT and which has led to the first Light e-MTB in our history.

With this model we’re opening the doors to a new category with the TQ-HPR50 motor, an integrated removable 360W battery, a full carbon fibre frame and a ready to roll weight of under 18kg. Mission accomplished. Now it’s your turn. Mondraker NEAT. A NEW CYCLE.

Specification

Frame	Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear Shock	Fox Float X Factory Kashima EVOL, 185×55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings
Shock Settings	CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Headset	Acros custom IS52/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock
Stem	Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Motor	TQ HPR-50
Battery	TQ HPR-50 360Wh integrated and removable
Display/Remote	TQ HPR display V01
Quoted Weight	————-
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seattube Length	380mm	420mm	450mm	490mm
B – Toptube Length	595mm	615mm	640mm	660mm
C – Bottom Bracket Drop	-25mm	-25mm	-25mm	-25mm
D – Bottom Bracket Height	348mm	348mm	348mm	348mm
E – Chainstay Length	450mm	450mm	450mm	450mm
F – Seat Tube Angle	72,6º	72,6º	72,6º	72,6º
G – Effective Seattube Angle	76.5°	76.5°	76.5°	76.5°
H – Headtube Angle	64.5º	64.5º	64.5º	64.5º
I – Fork Offset	44mm	44mm	44mm	44mm
J – Wheelbase	1235mm	1255mm	1275mm	1295mm
K – Headtube Length	110mm	110mm	130mm	140mm
L – Reach	450mm	470mm	495mm	515mm
M – Stack	626mm	626mm	642mm	650mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification	Category 4
Intended Use	Sport and competition riding with very challenging technical demands of the trails
Intended Terrain	Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm
Recommended riding skills	Technical skills, practice and bike control required
Attention	Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2
