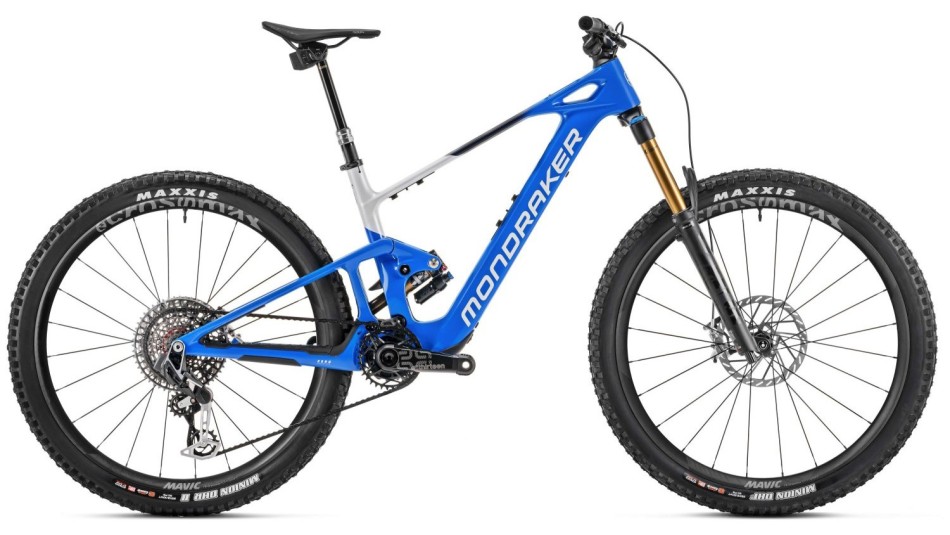

Mondraker Neat RR SL 2024 Light eMTB

Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before

Availability: In stock

Product Name Price Qty
Mondraker Neat RR SL 2024 Small Light eMTB

RRP: £10,499.00

Our price £7,499.99

Mondraker Neat RR SL 2024 X Large Light eMTB

RRP: £10,499.00

Our price £7,499.99

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.

Mondraker

Details

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader. Please everyone, stand up and welcome the NEAT.

Three years ago, we started a project with a mission. Just one. To create a new generation of ebikes that would redefine the current concept of mountain biking. A new category which would enhance the very best version of yourself as a rider, to make you faster, everywhere. Powerful yet silent. Stable yet agile. A mission we dubbed NEAT and which has led to the first Light e-MTB in our history.

With this model we’re opening the doors to a new category with the TQ-HPR50 motor, an integrated removable 360W battery, a full carbon fibre frame and a ready to roll weight of under 18kg. Mission accomplished. Now it’s your turn. Mondraker NEAT. A NEW CYCLE.

Video

Specification

Frame Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry,
internal & removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock
upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles,
integrated dropout speed sensor, exclusive plastic motor covers.
Rear Shock Fox Float X Factory Kashima EVOL, 185×55mm. Settings: 2-position compression (Open/Firm),
rebound, air preload. Trunnion top mount, 30×8mm bottom bushings
Shock Settings Medium compression, medium rebound, air volume spacer 0.4
Fork Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15×110mm Kabolt axle,
44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips Onoff Desert, 1lock-on, 135mm
Seatpost RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340×125mm M size: 390×150mm L size:
440×170mm XL size: 440×170mm
Saddle Fizik Terra Aidon Slim X5
Front Brake Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed
organic pads
Rear Brake Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed
organic pads
Rims Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Front Hub Mavic Infinity hub, Boost 15×110mm, IS 6 bolts
Rear Hub Mavic Infinity hub, ID360 freewheel technology, Boost 12×148mm, IS 6 bolts XD freehub
Front Tyre Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear Tyre Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Chainring Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Pedals N/A
Chain Sram X0 Eagle T-Type, 12s, Powerlock
Rear Derrailleur Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1×12s
Shifter Sram Eagle AXS Pod MMX, 12s
Cassette Sram XG-1295, 10-52T, T-Type, 12s
Motor TQ HPR-50
Battery TQ HPR-50 360Wh integrated and removable
Charger TQ
Display TQ HPR display V01
Remote Bosch Mini Remote
Derailleur Hanger -
Quoted Weight 17.9kg
Extras Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version
Max System Weight 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
S 165cm (5’5”) 170cm (5’7”)
M 170cm (5’7”) 180cm (5’11”)
L 175cm (5’9”) 187cm (6’1”)
XL 185cm (6’1”) 195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size S M L XL
A – Seattube Length 380mm 420mm 450mm 490mm
B – Toptube Length 595mm 615mm 640mm 660mm
C – Bottom Bracket Drop -25mm -25mm -25mm -25mm
D – Bottom Bracket Height 348mm 348mm 348mm 348mm
E – Chainstay Length 450mm 450mm 450mm 450mm
F – Seat Tube Angle 72,6º 72,6º 72,6º 72,6º
G – Effective Seattube Angle 76.5° 76.5° 76.5° 76.5°
H – Headtube Angle 64.5º 64.5º 64.5º 64.5º
I – Fork Offset 44mm 44mm 44mm 44mm
J – Wheelbase 1235mm 1255mm 1275mm 1295mm
K – Headtube Length 110mm 110mm 130mm 140mm
L – Reach 450mm 470mm 495mm 515mm
M – Stack 626mm 626mm 642mm 650mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Additional Information
Manufacturer Mondraker
RRP No
