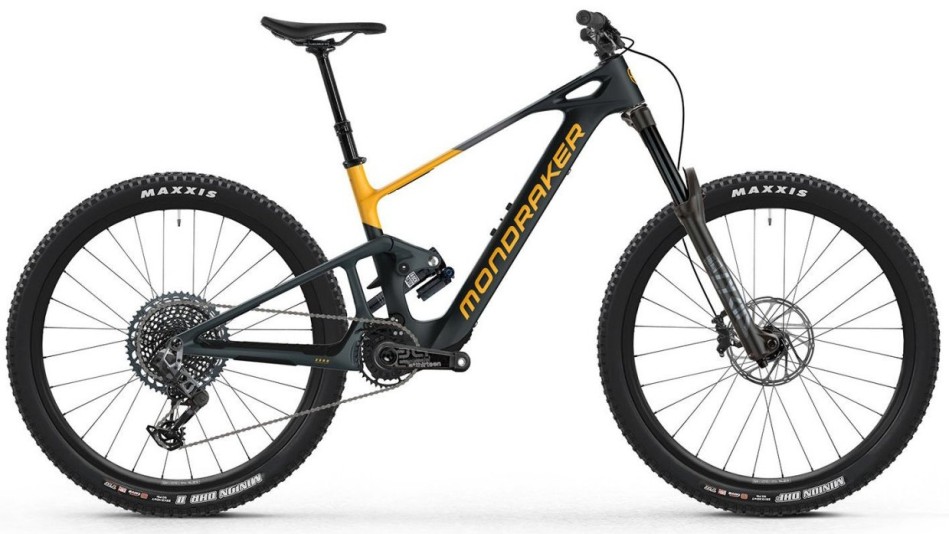

Mondraker Neat R 2025 Light eMTB
The first model in the line-up is the NEAT R, with a Fox 36 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM G2 R brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size) and Mavic E-Crossride 29 wheels.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Reaction Pro 2025 Teal/Holo Cross Country Bike
Starting at: £999.00
-
Pro Missile Clip-On Tri-Bend 31.8mm
RRP: £129.99
Our price £110.49
-
M-Part Rack Mount Seat Clamp 34.9mm
£9.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The first model in the line-up is the NEAT R, with a Fox 36 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM G2 R brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size) and Mavic E-Crossride 29 wheels.
Specification
| Frame | Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Rear Shock | Rock Shox Super Deluxe Select, 185×55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | C37 compression, R85 rebound, X4 lock tune, 4 tokens |
| Fork | RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload |
| Headset | Acros custom IS52/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Grips | Onoff Forest, CNC lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
| Saddle | Fizik Terra Aidon Slim X5 |
| Front Brake | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead |
| Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
| Chainring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Rear Derrailleur | Sram S1000 Eagle AXS T-Type, 12s |
| Shifter | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1270, 10-52T, T-Type, 12s |
| Motor | TQ HPR-50 |
| Battery | TQ HPR-50 360Wh integrated and removable |
| Display/Remote | TQ HPR display V01 |
| Quoted Weight | 18,9 kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 380mm | 420mm | 450mm | 490mm |
| B – Toptube Length | 595mm | 615mm | 640mm | 660mm |
| C – Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D – Bottom Bracket Height | 348mm | 348mm | 348mm | 348mm |
| E – Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| F – Seat Tube Angle | 72,6º | 72,6º | 72,6º | 72,6º |
| G – Effective Seattube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| H – Headtube Angle | 64.5º | 64.5º | 64.5º | 64.5º |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1235mm | 1255mm | 1275mm | 1295mm |
| K – Headtube Length | 110mm | 110mm | 130mm | 140mm |
| L – Reach | 450mm | 470mm | 495mm | 515mm |
| M – Stack | 626mm | 626mm | 642mm | 650mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
