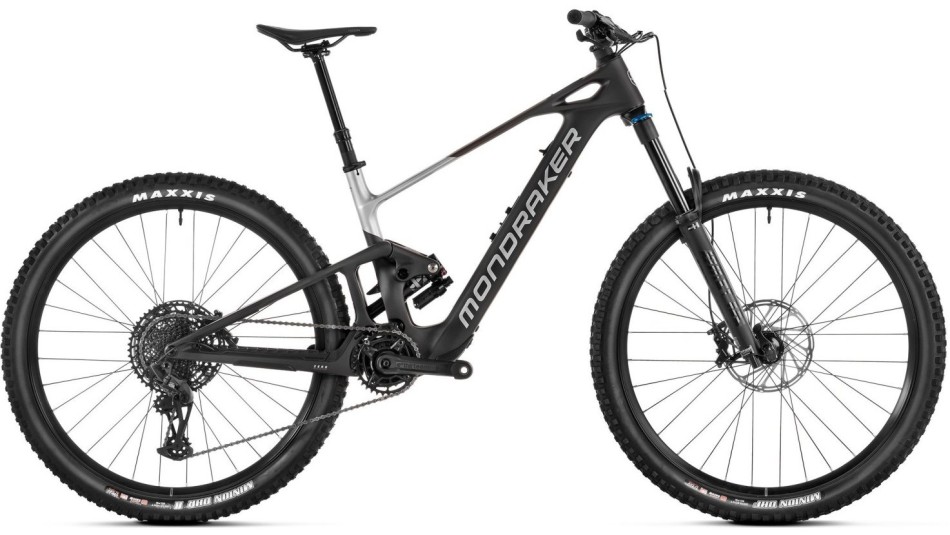

Mondraker Neat R 2024 Light eMTB

Medium in stock now! Delivery in 2-3 working days. Other sizes shown available with Mondaraker Spain. Expect delivery within 8-9 working days of placing an order.

A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader. Please everyone, stand up and welcome the NEAT.

Three years ago, we started a project with a mission. Just one. To create a new generation of ebikes that would redefine the current concept of mountain biking. A new category which would enhance the very best version of yourself as a rider, to make you faster, everywhere. Powerful yet silent. Stable yet agile. A mission we dubbed NEAT and which has led to the first Light e-MTB in our history.

With this model we’re opening the doors to a new category with the TQ-HPR50 motor, an integrated removable 360W battery, a full carbon fibre frame and a ready to roll weight of under 18kg. Mission accomplished. Now it’s your turn. Mondraker NEAT. A NEW CYCLE.

Video

Specification

Frame	Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. MIND System V2
Rear Shock	Fox Float X Performance EVOL, 185×55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings
Shock Settings	Medium compression, medium rebound, air volume spacer 0.4
Fork	Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset	Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem	Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar	Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	Onoff Desert, 1lock-on, 135mm
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
Saddle	Fizik Terra Aidon Slim X5
Front Brake	Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake	Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims	Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Front Hub	Mavic, Boost 15×110mm, IS 6 bolts
Rear Hub	Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front Tyre	Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset	E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Chainring	Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Pedals	N/A
Chain	Sram NX Eagle, 12s, Powerlock
Rear Derrailleur	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
Shifter	Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette	Sram PG-1230, 11-50T, 12s
Motor	TQ HPR-50
Battery	TQ HPR-50 360Wh integrated and removable
Charger	TQ
Display	TQ HPR display V01
Remote	Bosch Mini Remote
Derailleur Hanger	Sram UDH
Quoted Weight	18.9kg
Measured Weight	19.86kg – Measured by Freeborn – Size Large no pedals, with inner tubes
Extras	Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seattube Length	380mm	420mm	450mm	490mm
B – Toptube Length	595mm	615mm	640mm	660mm
C – Bottom Bracket Drop	-25mm	-25mm	-25mm	-25mm
D – Bottom Bracket Height	348mm	348mm	348mm	348mm
E – Chainstay Length	450mm	450mm	450mm	450mm
F – Seat Tube Angle	72,6º	72,6º	72,6º	72,6º
G – Effective Seattube Angle	76.5°	76.5°	76.5°	76.5°
H – Headtube Angle	64.5º	64.5º	64.5º	64.5º
I – Fork Offset	44mm	44mm	44mm	44mm
J – Wheelbase	1235mm	1255mm	1275mm	1295mm
K – Headtube Length	110mm	110mm	130mm	140mm
L – Reach	450mm	470mm	495mm	515mm
M – Stack	626mm	626mm	642mm	650mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
