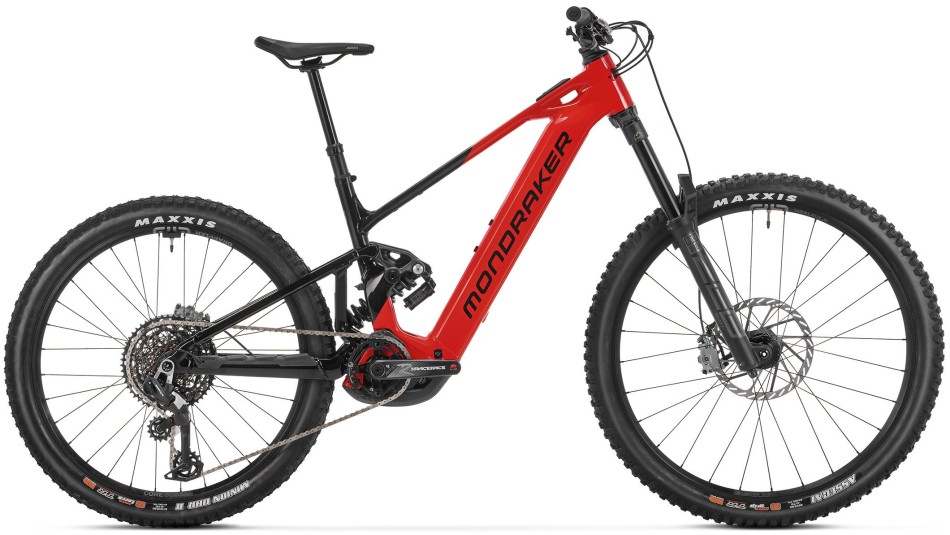

Mondraker Level R 2026 eMTB
Designed for the most demanding of descents possible on a bike with the added benefit of lightning fast climbing, the Level RR is quite possibly the most fun possible on two wheels
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Medium, Medium/Large and Large in stock now! Delivery in 2-3 working days. Other sizes shown available with Mondaraker Spain. Expect delivery within 8-9 working days of placing an order.
The Level R is your ticket to another level of enduro. As the most accessible model in the new range, it features the fifth-generation Bosch Performance Line CX motor, now delivering up to 750W and 100Nm of torque (with the latest software update), paired with a massive 800Wh battery, which is easily removable via the sleek carbon access panel on the downtube. Key spec highlights include:
RockShox ZEB RC fork
SRAM Maven Bronze brakes
SRAM 90 Eagle T-Type drivetrain (10-52T, 34T chainring)
Maxxis Assegai 29”×2.6” WT (front) / Minion DHR II 27.5”×2.6” WT (rear)
Specification
| Frame | Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers |
| Rear Shock | RockShox Vivid Coil base, 205×65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs |
| Fork | RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload |
| Headset | Onoff ZS44/ZS56, 1-1/8”, 1.5” head tube, ACB sealed bearings, top 42×30×7×45ºx45º, bottom 52×40×8×45ºx45º |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Front Brake | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rims | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27’‘5 rear |
| Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12×148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub |
| Front Tyre | Maxxis Assegai 29×2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120×2TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 27’5×2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120×2TPI, folding bead |
| Crankset | Race Face Aeffect ebike, All sizes: 160mm |
| Chainring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain | Sram 70 Eagle T-Type, 12s, Powerlock |
| Rear Derailleur | Sram 90 Eagle T-Type, 12s |
| Shifter | Sram 90 Eagle, 12s, T-Type Actuation, single click |
| Cassette | Sram XS-1270, 10-52T, T-Type, 12s |
| Display | Purion 400 / Bosch / Bosch System Controller |
| Remote | Mini Remote |
| Motor | Bosch Performance Line CX GEN 5(25Km/h) SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 800Wh |
| Quoted Weight | 26.7kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 160cm (5’3”) | 165cm (5’5”) |
| M | 165cm (5’5”) | 177cm (5’9”) |
| M/L | 177cm (5’9”) | 185cm (6’1”) |
| L | 183cm (5’9”) | 193cm (6’4”) |
| XL | 190cm (6’3”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Standard Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 576 mm | 598 mm | 620 mm | 642 mm | 664 mm |
| C – Botom Bracket Drop | -2 mm | -2 mm | -2 mm | - 2 mm | -2 mm |
| D – Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm | 353 mm |
| E – Chainstay Length | 445 mm | 445 mm | 445 mm | 455 mm | 455 mm |
| F – Seat Tube Angle Actual | 75.3° | 75.3° | 75.3° | 75.3° | 75.3° |
| G – Seat Tube Angle Effective | 78° | 78° | 78° | 78° | 78° |
| H – Head Tube Angle | 64.0° | 64.0° | 64.0° | 64.0° | 64.0° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1236 mm | 1260 mm | 1284 mm | 1319 mm | 1343 mm |
| K – Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M – Stack | 640 mm | 649 mm | 658 mm | 667 mm | 676 mm |
Low Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 577 mm | 599 mm | 621 mm | 643 mm | 665 mm |
| C – Botom Bracket Drop | -7 mm | -7 mm | -7 mm | -7 mm | -7 mm |
| D – Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| E – Chainstay Length | 446 mm | 446 mm | 446 mm | 456 mm | 456 mm |
| F – Seat Tube Angle Actual | 74.95° | 74.95° | 74.95° | 74.95° | 74.95° |
| G – Seat Tube Angle Effective | 77.65° | 77.65° | 77.65° | 77.65° | 77.65° |
| H – Head Tube Angle | 63.65° | 63.65° | 63.65° | 63.65° | 63.65° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1237 mm | 1261 mm | 1285 mm | 1320 mm | 1344 mm |
| K – Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 436 mm | 456 mm | 476 mm | 496 mm | 516 mm |
| M – Stack | 643 mm | 652 mm | 661 mm | 670 mm | 679 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
