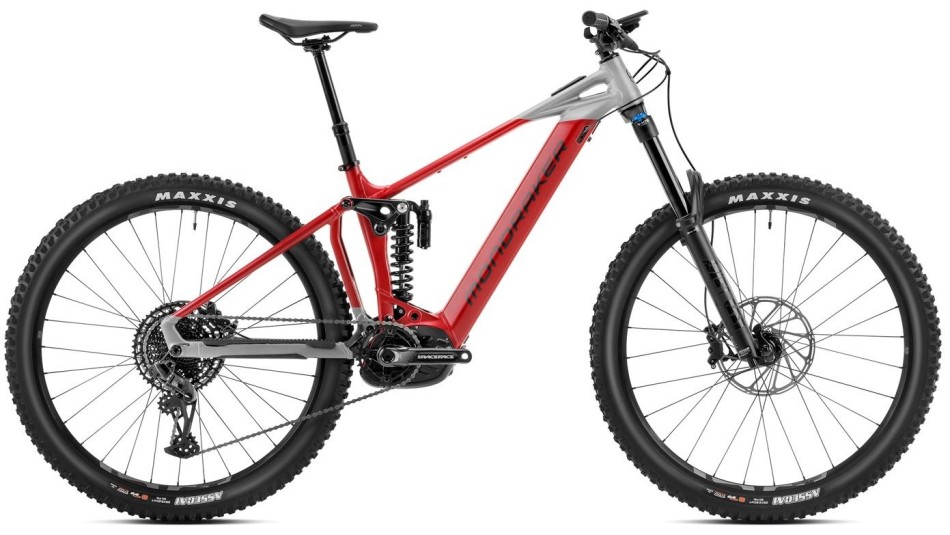

Mondraker Level R 2023 eMTB

Freeborn’s Take

Designed for the most demanding of descents possible on a bike with the added benefit of lightning fast climbing, the Level R is quite possibly the most fun possible on two wheels

The all aluminium frame set and sealed MAX cartridge bearing pivots are designed to be able to shrug off the worst the trails have to offer. Mondraker’s Forward geometry has a roomy reach, short stem, and steep seat tube angle giving it amazing stability when descending and great manners when climbing.

Mondraker’s Zero Suspension system is supported by a Fox DHX Performance 2P rear coil shock delivering 170mm of supple, progressive travel. Combined with a 180mm Fox 38 Grip Rhythm, you will be able to plow through the chunkiest of rock gardens.

Equipped with the new Bosch Smart motor system. A 750Wh battery concealed in the frame will give you the most amount of trail shredding possible. The Bosch Gen4 CX is the benchmark for ebike motors giving 85nm of ultra reliable performance. The new toptube mounted System Controller display and wireless Mini Remote really helps to tidy up the cockpit.

Stopping duties are taken care of by Sram’s new ultra relaible DB8 4 piston brakes. 220mm rotors back and front help to keep things cool and consistent.

A Sram Eagle drivetrain gives you a wide 10-50 tooth range which will allow to keep your cadence up on even the steepest of climbs keeping the motor delivering power when you need it most.

eThirteen’s Bombproof 29” IW30 wheel set comes with sealed cartridge bearings throughout giving consistent all weather performance and simple servicing. Clad with Maxxis Assegai Maxx Grip DH casing tyres, this bike is ready to get gnarly straight out the box.

Finishing off the specification is Mondraker’s Onoff 800mm wide bar, lock on grips and 30mm stem give all the control you will ever need. A Fizik Terra Aidon saddle will give you hours of in saddle comfort.

Specification

Frame	Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery with integrated alloy cover, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Rear Shock	Fox DHX Performance 2P, 225×75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25×10mm bottom bushings
Shock Settings	Medium compression, medium rebound. Spring rate: S/M size 300 lbs, L size 350 lbs, XL size 400 lbs
Fork	Fox 38 29 Float GRIP EVOL Rhythm, 180mm, e-bike tuned, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset	Onoff Saturn ZS44/ZS56 tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45°
Stem	Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
Handlebar	Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips	Onoff Twin, 1lock-on, 135mm
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, S size: 387×125mm, M size: 425×150mm, L/XL size: 465×170mm
Saddle	Fizik Terra Aidon X5 145mm
Front Brake	Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake	Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rims	e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes
Spokes	e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub	e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Boost 12×148mm, triple-sealed, fully machined aluminum w/6 degree engagement, IS 6 bolts
Front Tyre	Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead
Rear Tyre	Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead
Crankset	Race Face Affect ebike, 165mm
Chain Ring	Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals	N/A
Rear Derailleur	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
Shifter	Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette	Sram PG-1210, 11-50T, 12s
Chain	Sram SX Eagle, 12s, Powerlock
Motor	Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery	Bosch Powertube 750Wh (battery weight 4.4kg)
Charger	Bosch 4A (2.1h 50% – 6h 100%)
Display	Bosch System Controller / Bosch Kiox 300
Remote	Bosch Mini Remote
Quoted Weight	26.9kg
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seat Tube Length	380 mm	420 mm	450 mm	490 mm
B – Top Tube Length	602 mm	622 mm	647 mm	667 mm
C – Bottom Bracket Drop	-15 mm	-15 mm	-15 mm	-15 mm
D – Bottom Bracket Height	357 mm	357 mm	357 mm	357 mm
E – Chainstay Length	455 mm	455 mm	455 mm	455 mm
F – Seat Tube Angle, Actual	73.5°	73.5°	73.5°	73.5°
G – Seat Tube Angle, Effective	76.5°	76.5°	76.5°	76.5°
H – Head Tube Angle	65°	65°	65°	65°
I – Fork Offset	44 mm	44 mm	44 mm	44 mm
J – Wheelbase	1250 mm	1270 mm	1290 mm	1310 mm
K – Head Tube Length	110 mm	110 mm	130 mm	130 mm
L – Reach	450 mm	470 mm	490 mm	510 mm
M – Stack	632 mm	632 mm	652 mm	652 mm
