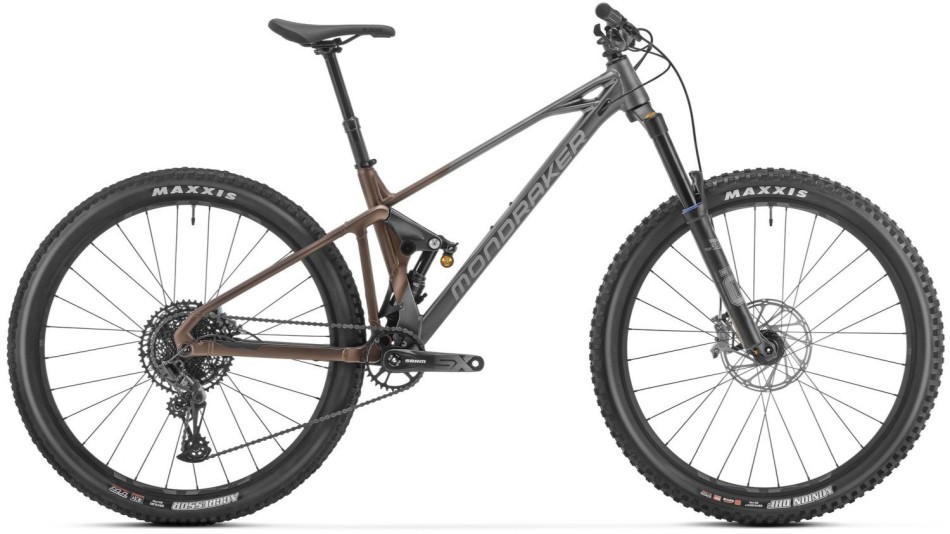

Mondraker Foxy R 2024 Trail Bike
The Foxy is one of our best-selling bikes. With its 6061 Stealth Evo aluminium frame you get to enjoy the same exclusive and prestigious technologies as found on our other Foxys such as Forward Geometry
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Shimano 105 12 Speed Cassette
Starting at: £69.99
-
Mondraker Prime G4 2025 Bronze/Grey eBike
Starting at: £2,598.99
-
Mondraker F-Play 24 2025 Kids eBike
Starting at: £2,698.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The FOXY is one of our best-selling bikes. With its 6061 STEALTH EVO aluminium frame you get to enjoy the same exclusive and prestigious technologies as found on our other FOXYs such as FORWARD GEOMETRY and the ZERO SUSPENSION SYSTEM. Adding into the mix its excellent value for money, it’s a strong candidate to be the enduro bike of the season.
Assembled with sure-bet components it comes as stock with Fox suspension, SRAM NX/SX Eagle transmission, e*thirteen LG1 Plus Enduro wheels, SRAM Code Bronze brakes and ONOFF components. Travel is 160mm front and 150mm rear.
Specification
| Frame | Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12×148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05 |
| Rear Shock | Öhlins TTX Air 205×65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25×8mm bottom bushings |
| Shock Settings | C20 compression, R35 rebound |
| Fork | Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15×110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40 |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45° |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Front Brake | Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked organic pads |
| Rear Brake | Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steelbacked organic pads |
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12×148mm, triple-sealed, fully machined aluminum w/6 degree engagement, IS 6 bolts, Shimano freehub |
| Front Tyre | Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Crankset | Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Chainring | 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Rear Derailleur | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | Sram XG-1230, 11-50T, 12s |
| Derailleur Hanger | Sram UDH |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 375mm | 415mm | 445mm | 500mm |
| B – Top Tube Length | 600mm | 620mm | 650mm | 670mm |
| C – Bottom Bracket Drop | -20mm | -20mm | -20mm | -20mm |
| D – Bottom Bracket Height | 354mm | 354mm | 354mm | 354mm |
| E – Chain Stay Length | 435mm | 435mm | 435mm | 435mm |
| F – Seat Tube Angle | 70.2° | 70.2° | 70.2° | 70.2° |
| G – Effective Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| H – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| I – Fork Offset | 44 mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1208mm | 1231mm | 1257mm | 1283mm |
| K – Head Tube Length | 90mm | 100mm | 115mm | 130mm |
| L – Reach | 445mm | 465mm | 485mm | 505mm |
| M – Stack | 617mm | 627mm | 641mm | 655mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
