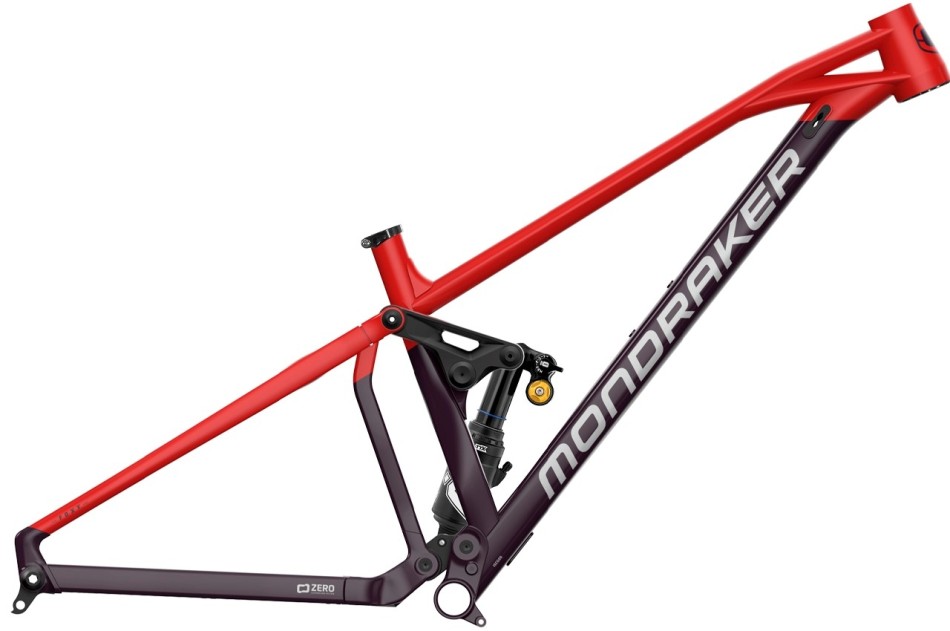

Mondraker Foxy R 2022 Trail Frameset
160mm of travel at the front and 150mm at the rear let you know what type of party you’ve been invited to.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
DT Swiss X 1900 29" Boost Rear Wheel Sram XD Freehub
RRP: £269.99
Our price £229.49
-
Cube Touring Hybrid One 625 2024 Green/Green eBike
Starting at: £1,938.99
Details
160mm of travel at the front and 150mm at the rear let you know what type of party you’ve been invited to.
Specification
| Frame | Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12×148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05 |
| Rear Shock | Öhlins TTX Air 205×62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2×10mm bottom bushings |
| Shock Settings | C20 compression, R35 rebound |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45° |
| Derailleur Hanger | Mondraker M068 |
| Others | *Optional Geometry kit: steering cups: +/- 1º |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 375mm | 415mm | 445mm | 500mm |
| B – Top Tube Length | 600mm | 620mm | 650mm | 670mm |
| C – Bottom Bracket Drop | -20mm | -20mm | -20mm | -20mm |
| D – Bottom Bracket Height | 354mm | 354mm | 354mm | 354mm |
| E – Chain Stay Length | 435mm | 435mm | 435mm | 435mm |
| F – Seat Tube Angle | 70.2° | 70.2° | 70.2° | 70.2° |
| G – Effective Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| H – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| I – Fork Offset | 44 mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1208mm | 1231mm | 1257mm | 1283mm |
| K – Head Tube Length | 90mm | 100mm | 115mm | 130mm |
| L – Reach | 445mm | 465mm | 485mm | 505mm |
| M – Stack | 617mm | 627mm | 641mm | 655mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
