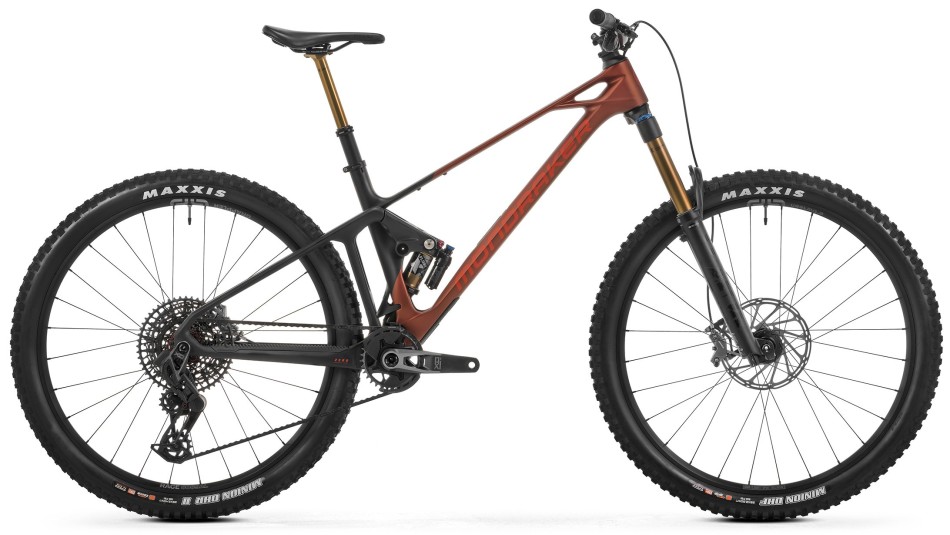

Mondraker Foxy Carbon RR 2025 Trail Bike

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

If you’re a rider who enjoys going up, but what you really love is the ride back down and that feeling of flow as you rip along the sweetest trails in your area then you’re one of us, and one of our enduro bikes was made for you.

We’d bet that you love pushing your limits as far as you can, and when you get to the bottom you can’t help but tell your mates about that berm you railed or that jump that you’d been wanting to send forever and finally launched… then without a doubt you’ve got Mondraker DNA built-in. And we love that. That’s why our enduro bikes have FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and some of them even have MIND; technology that lets you set up your suspension like a pro mechanic but without having to be one.

And best of all, whichever model you choose, you’ll feel like the luckiest rider on the planet.

Specification

Frame	Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12×148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. MIND System V2
Rear Shock	Fox Float X Factory Kashima EVOL, 205×65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings
Shock Settings	Light compression, light rebound, air volume spacer 0.6
Fork	Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Black, 160mm, tapered steerer tube, Boost 15×110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset	Acros custom IS52/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock
Stem	Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar	Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips	Onoff Forest, CNC lock-on, 135mm
Seatpost	Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle	SDG BEL-AIR 3.0, LPU foam, steel rails
Front Brake	Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake	Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims	e*thirteen Grappler Race, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes	e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Hub	e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Boost 12×148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front Tyre	Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset	Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
Chainring	32T, CNC-machined alloy, T-Type
Chain	Sram X0 Eagle T-Type, 12s, Powerlock
Rear Derrailleur	Sram X0 Eagle AXS T-Type,12s
Shifter	Sram Eagle AXS Pod, 12s
Cassette	Sram XS-1295, 10-52T, T-Type 12s
Quoted Weight	14,4 kg
Max System Weight	120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Standard Geo

Frame Size	Small	Medium	Large	X Large
A – Seat Tube Length	375 mm	415 mm	445 mm	500 mm
B – Top Tube Length	600 mm	620 mm	650 mm	670 mm
C – Botom Bracket Drop	-23	-23	-23	-23
D – Bottom Bracket Height	350 mm	350 mm	350 mm	350 mm
E – Chainstay Length	435 mm	435 mm	435 mm	435 mm
F – Seat Tube Angle Actual	70.5°	70.5°	70.5°	70.5°
G – Seat Tube Angle Effective	76°	76°	76°	76°
H – Head Tube Angle	65°	65°	65°	65°
I – Fork Offset	44 mm	44 mm	44 mm	44 mm
J – Wheelbase	1203 mm	1227 mm	1253 mm	1279 mm
K – Head Tube Length	90 mm	100 mm	115 mm	130 mm
L – Reach	445 mm	465 mm	485 mm	505 mm
M – Stack	615 mm	623 mm	637 mm	651 mm

Low Geo

Frame Size	Small	Medium	Large	X Large
A – Seat Tube Length	375 mm	415 mm	445 mm	500 mm
B – Top Tube Length	600 mm	622 mm	647 mm	670 mm
C – Botom Bracket Drop	-27 mm	-27 mm	-27 mm	-27 mm
D – Bottom Bracket Height	345 mm	345 mm	345 mm	345 mm
E – Chainstay Length	445 mm	445 mm	445 mm	445 mm
F – Seat Tube Angle Actual	70.5°	70.5°	70.5°	70.5°
G – Seat Tube Angle Effective	76.5°	76.5°	76.5°	76.5°
H – Head Tube Angle	64°	64°	64°	64°
I – Fork Offset	44 mm	44 mm	44 mm	44 mm
J – Wheelbase	1216 mm	1239 mm	1267 mm	1292 mm
K – Head Tube Length	100 mm	100 mm	120 mm	120 mm
L – Reach	440 mm	460 mm	480 mm	500 mm
M – Stack	617 mm	617 mm	647 mm	647 mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification	Category 4
Intended Use	Sport and competition riding with very challenging technical demands of the trails
Intended Terrain	Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm
Recommended riding skills	Technical skills, practice and bike control required
Attention	Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2
