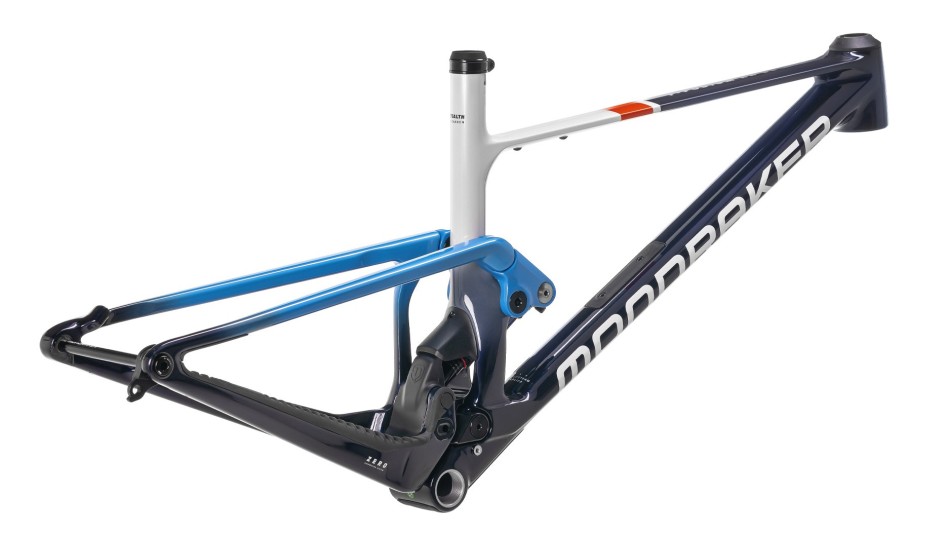

Mondraker F-Podium RR SL 2024 Cross Country Frameset
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The F-Podium RR SL is the ultimate expression of a full suspension cross country bike.
With 110mm of travel front and rear it’s as efficient as a hardtail, but when the trail points downwards you’ve got just enough suspension to keep your wheels firmly on the ground.
Thanks to its ZERO SUSPENSION SYSTEM, traction is one of its biggest strengths. If we then add our FORWARD GEOMETRY technology and a frame made of STEALTH AIR FULL CARBON, you’re looking at an XC event winning bike.
Specification
Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12×148mm rear axle, shock mudguard, postmount rear brake mount. |
Rear Shock | Rockshox SID Luxe Ultimate 3P Remote in Pull DebonAir, 165×45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
Shock Settings | Medium compression, medium rebound, Lockout 430, 1 Token |
Headset | Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing |
Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
S | 165cm (5’5”) | 170cm (5’7”) |
M | 170cm (5’7”) | 180cm (5’11”) |
L | 175cm (5’9”) | 187cm (6’1”) |
XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | S | M | L | XL |
A – Seat Tube Length | 375mm | 415mm | 445mm | 500mm |
B – Top Tube Length | 600mm | 620mm | 650mm | 670mm |
C – Bottom Bracket Drop | -20mm | -20mm | -20mm | -20mm |
D – Bottom Bracket Height | 354mm | 354mm | 354mm | 354mm |
E – Chain Stay Length | 435mm | 435mm | 435mm | 435mm |
F – Seat Tube Angle | 70.2° | 70.2° | 70.2° | 70.2° |
G – Effective Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
H – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
I – Fork Offset | 44 mm | 44mm | 44mm | 44mm |
J – Wheelbase | 1208mm | 1231mm | 1257mm | 1283mm |
K – Head Tube Length | 90mm | 100mm | 115mm | 130mm |
L – Reach | 445mm | 465mm | 485mm | 505mm |
M – Stack | 617mm | 627mm | 641mm | 655mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Mondraker |
---|---|
RRP | No |
