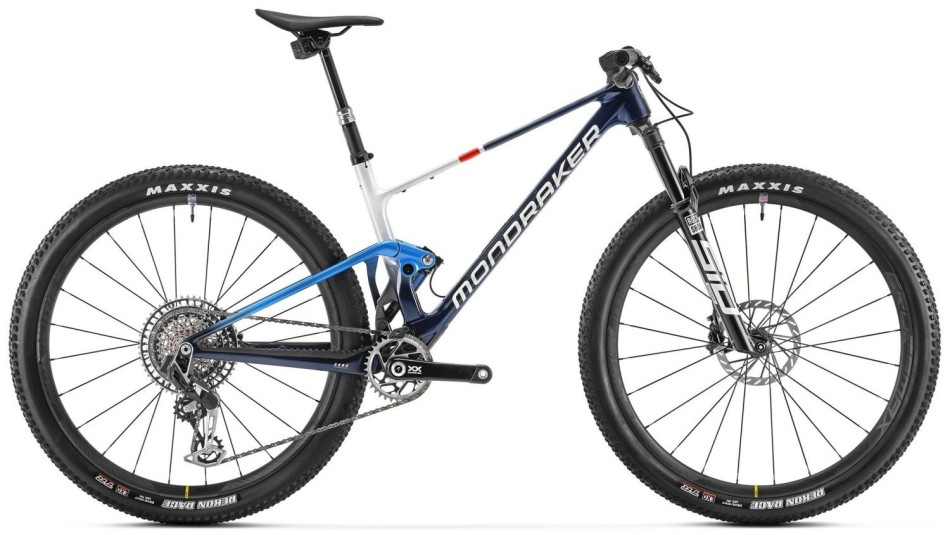

Mondraker F-Podium RR SL 2024 Cross Country Bike
The F-Podium RR SL is the ultimate expression of a full suspension cross country bike.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The F-Podium RR SL is the ultimate expression of a full suspension cross country bike.
With 110mm of travel front and rear it’s as efficient as a hardtail, but when the trail points downwards you’ve got just enough suspension to keep your wheels firmly on the ground.
Thanks to its ZERO SUSPENSION SYSTEM, traction is one of its biggest strengths. If we then add our FORWARD GEOMETRY technology and a frame made of STEALTH AIR FULL CARBON, you’re looking at an XC event winning bike.
Specification
| Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12×148mm rear axle, shock mudguard, postmount rear brake mount. |
| Rear Shock | Rockshox SID Luxe Ultimate 3P Remote in Pull DebonAir, 165×45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | Medium compression, medium rebound, Lockout 430, 1 Token |
| Fork | Rockshox SID Ultimate 3P Remote 29, 120mm, Charger Race day, tapered steerer tube, Boost 15×110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload |
| Fork Remote | RockShox TwistLoc Ultimate FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock |
| Headset | Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing |
| Bar/Stem | OnOff Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep, S size: 55mm length, -12º rise, M size: 65mm length, -14º, L size: 75mm length, -15º rise, XL size: 75mm length, -15º rise |
| Grips | Rock Shox Twistloc grips |
| Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340×100mm M size: 390×125mm L size: 440×150mm XL size: 440×170mm |
| Saddle | Fizik Vento Argo X5 |
| Front Brake | Sram Level Ultimate 2P Stealth, 2 piece caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level Ultimate 2P Stealth, 2 piece caliper, HS2 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic CrossMax Carbon SL Ultimate 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic 24 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12×148mm, IS 6 bolts, XD freehub |
| Front Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Rear Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Crankset | Sram XX SL Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55 |
| Chainring | 34T, CNC-machined alloy, T-Type |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | Sram XX SL Eagle T-Type, 12s, Powerlock |
| Rear Derrailleur | Sram XX SL Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1×12s |
| Shifter | Sram Eagle AXS Pod Ultimate, 12s |
| Cassette | Sram XS-1299, 10-52T, T-Type, 12s |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat tube length | 410mm | 440mm | 470mm | 500mm |
| B – Top tube length | 576mm | 601mm | 629.4mm | 657.8mm |
| C – Bottom bracket drop | -40 | -40 | -40 | -40 |
| D – Bottom bracket height | 335mm | 335mm | 335mm | 335mm |
| E – Chainstay length | 435mm | 435mm | 435mm | 435mm |
| F – Seat tube angle | 72.5° | 72.9° | 73.2° | 73.5° |
| G – Effective seat tube angle | 76.2° | 76.2° | 76.2° | 76.2° |
| H – Head tube angle | 66.5° | 66.5° | 66.5° | 66.5° |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1152mm | 1177mm | 1208mm | 1239mm |
| K – Head tube length | 90mm | 90mm | 105mm | 120mm |
| L – Reach | 430mm | 455 mm | 480mm | 505mm |
| M – Stack | 594.6mm | 594.6mm | 608.3mm | 622.1mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
