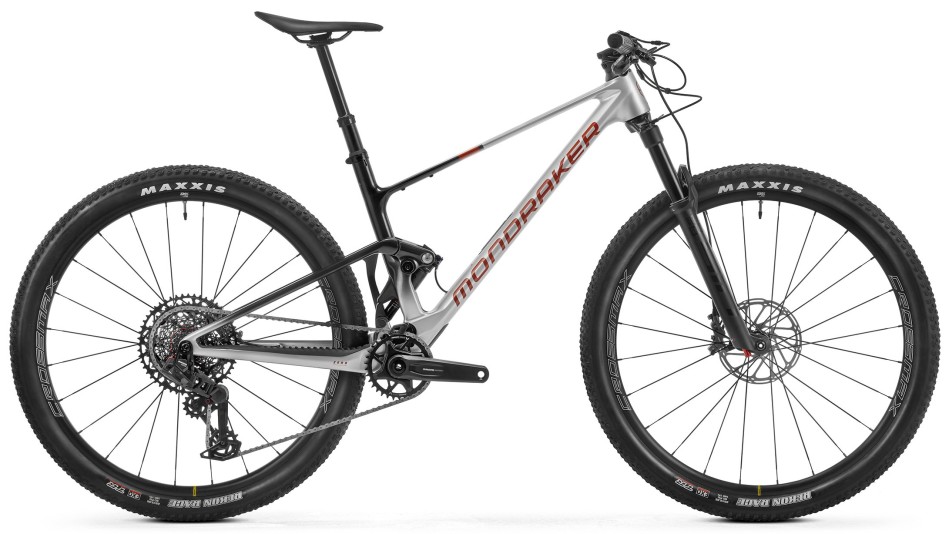

Mondraker F-Podium R 2025 Cross Country Bike
The F-Podium R is the ultimate expression of a full suspension cross country bike.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The F-Podium R is the ultimate expression of a full suspension cross country bike.
With 110mm of travel front and rear it’s as efficient as a hardtail, but when the trail points downwards you’ve got just enough suspension to keep your wheels firmly on the ground.
Thanks to its ZERO SUSPENSION SYSTEM, traction is one of its biggest strengths. If we then add our FORWARD GEOMETRY technology and a frame made of STEALTH AIR FULL CARBON, you’re looking at an XC event winning bike.
Specification
| Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12×148mm rear axle, shock mudguard, postmount rear brake mount. |
| Rear Shock | Rockshox SID Luxe 3P Remote in Pull DebonAir, 165×45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | R57 rebound, C33 compression, 1 Token |
| Fork | Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15×110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload |
| Headset | Acros custom IS52/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs with blocklock |
| Stem | Onoff S3 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Handlebar | Onoff S3 6061 0.2, rise: 5mm, width: 760mm, 8º backsweep, 4º upsweep, 31.8mm barbore |
| Grips | Rock Shox Twistloc grips |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
| Saddle | Fizik Vento Argo X5 |
| Front Brake | Sram Level Bronze 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level Bronze 4P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic straight-pull double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Rear Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Crankset | Sram 1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55 |
| Chainring | 34T, CNC-machined alloy, T-Type |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Rear Derrailleur | Sram 1000 Eagle AXS T-Type, Drag Spring Cage Damper, cage lock, 1×12s |
| Shifter | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1270, 10-52T, T-Type 12s |
| Quoted Weight | ? |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Small | Medium | Large | X Large |
| A – Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| B – Top Tube Length | 576 mm | 601 mm | 629 mm | 658 mm |
| C – Botom Bracket Drop | -40 mm | -40 mm | -40 mm | -40 mm |
| D – Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| E – Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| F – Seat Tube Angle Actual | 72.5° | 73° | 73° | 73.5° |
| G – Seat Tube Angle Effective | 76° | 76° | 76° | 76° |
| H – Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1152 mm | 1177 mm | 1208 mm | 1239 mm |
| K – Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| L – Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| M – Stack | 595 mm | 595 mm | 608 mm | 622 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 3 |
| Intended Use | Sport and competition riding with moderate technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 60 cm |
| Recommended riding skills | Technical skills and practice required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
