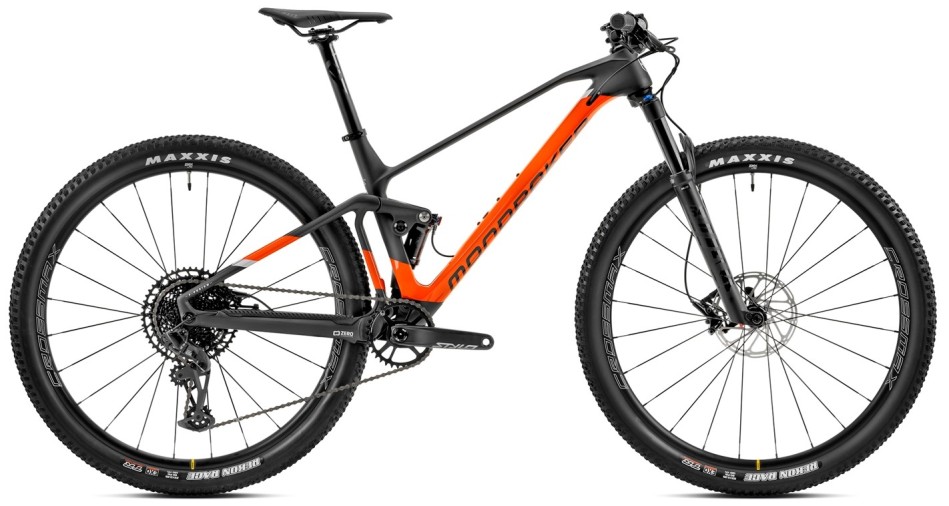

Mondraker F-Podium Carbon 2023 Cross Country Bike
The F-Podium is the ultimate expression of a full suspension cross country bike.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Marin Rift Zone E2 2024 eMTB
Starting at: £4,494.99
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
Mondraker Dusty R 2024 eGravel Bike
Starting at: £4,299.00
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The F-Podium is the ultimate expression of a full suspension cross country bike.
With 100mm of rear wheel travel and 110mm at the front it’s as efficient as a hardtail, but when the trail points downwards you’ve got just enough suspension to keep your wheels firmly on the ground.
Thanks to its ZERO SUSPENSION SYSTEM, traction is one of its biggest strengths. If we then add our FORWARD GEOMETRY technology and a frame made of STEALTH AIR FULL CARBON, you’re looking at an XC bike halfway between the F-PODIUM DC that competes in the World Cup, and the Podium which is our benchmark hardtail.
Specification
| Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost |
| Rear Shock | Fox Float DPS SV Performance Elite, 185×47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2×10mm bottom bushings |
| Shock Settings | Firm compression, light rebound, air volume spacer 0.2 |
| Fork | Fox 34 Step Cast Float Grip Evol Performance, 110mm, tapered steerer tube,15×110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, rebound, air preload |
| Headset | Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom |
| Fork Remote | Fox dual pull |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm |
| Handlebar | Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Helium Carbon 0-R, diameter 31.6mm, length 400mm |
| Saddle | Fizik Antares R7 |
| Front Brake | SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic straightpull duble butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Front Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Rear Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Crankset | Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Chainring | 34T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | SRAM PG-1230, 11-50T, 12s |
| Derailleur Hanger | SRAM UDH |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 390 mm | 420 mm 4 | 70 mm | 510 mm |
| B – Toptube Length | 580 mm | 600 mm | 625 mm | 650 mm |
| C – Bottom Bracket Drop | -35 mm | -35 mm | -35 mm | -35 mm |
| D – Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| E – Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| F – Seat Tube Angle | 71.3º | 71.3º | 71.3º | 71.3º |
| G – Effective Seattube Angle | 75.8º | 75.8º | 75.8º | 75.8º |
| H – Headtube Angle | 67.3º | 67.3º | 67.3º | 67.3º |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1138mm | 1159 mm | 1183 mm | 1209 mm |
| K – Headtube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| L – Reach | 437 mm | 453 mm | 473 mm | 493 mm |
| M – Stack | 570 mm | 575 mm | 584 mm | 598 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
