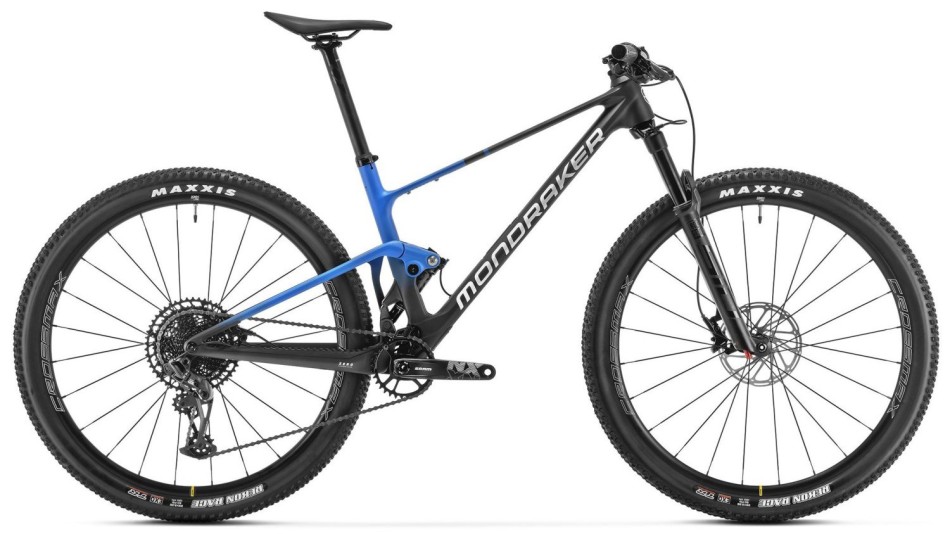

Mondraker F-Podium 2025 Cross Country Bike
The F-Podium is the ultimate expression of a full suspension cross country bike.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The F-Podium is the ultimate expression of a full suspension cross country bike.
With 110mm of travel front and rear it’s as efficient as a hardtail, but when the trail points downwards you’ve got just enough suspension to keep your wheels firmly on the ground.
Thanks to its ZERO SUSPENSION SYSTEM, traction is one of its biggest strengths. If we then add our FORWARD GEOMETRY technology and a frame made of STEALTH AIR FULL CARBON, you’re looking at an XC event winning bike.
Specification
| Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12×148mm rear axle, shock mudguard, postmount rear brake mount. |
| Rear Shock | Rockshox SID Luxe 3P Remote in Pull DebonAir, 165×45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | Medium compression, medium rebound, Lockout 430, 1 Token |
| Fork | Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15×110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload |
| Fork Remote | RockShox TwistLoc Base FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock |
| Headset | Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Rock Shox Twistloc grips |
| Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| Saddle | Fizik Vento Argo X5 |
| Front Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic straight-pull double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Rear Tyre | Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| Crankset | Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55 |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Deraileur Hanger | Sram UDH |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat tube length | 410mm | 440mm | 470mm | 500mm |
| B – Top tube length | 576mm | 601mm | 629.4mm | 657.8mm |
| C – Bottom bracket drop | -40 | -40 | -40 | -40 |
| D – Bottom bracket height | 335mm | 335mm | 335mm | 335mm |
| E – Chainstay length | 435mm | 435mm | 435mm | 435mm |
| F – Seat tube angle | 72.5° | 72.9° | 73.2° | 73.5° |
| G – Effective seat tube angle | 76.2° | 76.2° | 76.2° | 76.2° |
| H – Head tube angle | 66.5° | 66.5° | 66.5° | 66.5° |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1152mm | 1177mm | 1208mm | 1239mm |
| K – Head tube length | 90mm | 90mm | 105mm | 120mm |
| L – Reach | 430mm | 455 mm | 480mm | 505mm |
| M – Stack | 594.6mm | 594.6mm | 608.3mm | 622.1mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
