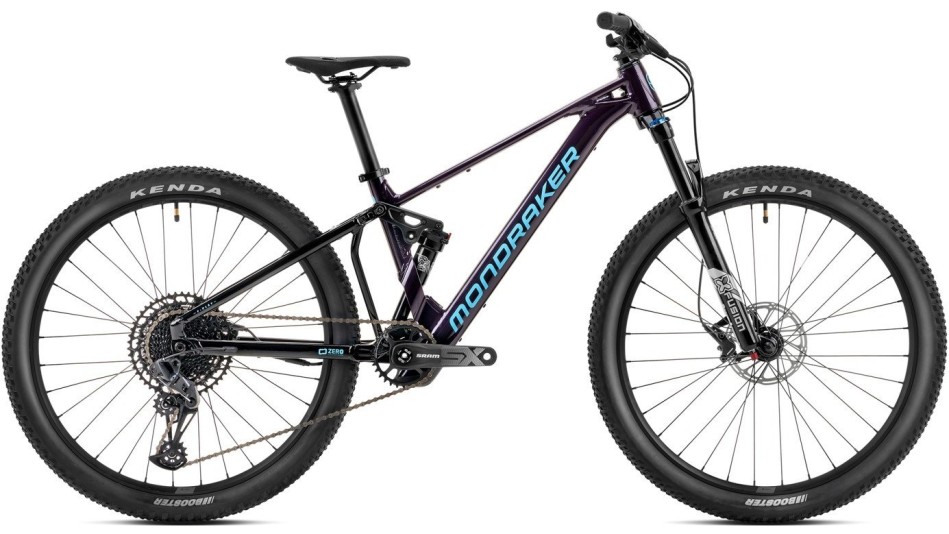

Mondraker F-Play 26 2024 Kids eBike

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

The F-Play 26 is a bike with all of Mondraker’s DNA and is more than worth its salt when compared to of any of our adult bikes.

With its aluminium STEALTH EVO and ZERO SUSPENSION SYSTEM frame specifically designed for it, you’ll find it hard to keep up with any kid who takes it for a spin, whether they’re going uphill or down.

With 120mm of suspension travel on hand, your kids’ll become the riding buddies you always wanted them to be, as at last they’ll have a bike that helps them when it counts.

They’ll be the ones who will get you out of bed first thing in the morning to go riding. And who wouldn’t want that? Getting to share our sport with our little ones is beyond cool.

Specification

Frame	F-Play 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Rear Shock	X-Fusion 02PRO R, 210×55mm. Settings: low-speed rebound, air preload. 45×8mm top and bottom bushings
Fork	X-Fusion Velvet RL 26, 120mm, Air Sprung, Tapered Steerer Tube, 9×100mm axle, 32mm Aluminium stanction, 41mm Offset. Settings: Lockout, Rebound, Air Pressure
Headset	Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º
Stem	Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar	MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	Onoff Twin, 1lock-on
Seatpost	MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
Saddle	SDG Fly JR
Front Brake	SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear Brake	SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rims	MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes	CN round stainless steel
Front Hub	Formula DC20LW, 9×100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub	Mahle-Ebikemotion X-35
Front Tyre	Kenda Booster 26×2.4 single compound 30TPI, wire bead
Rear Tyre	Kenda Booster 26×2.4 single compound 30TPI, wire bead
Crankset	Sram SX Eagle, DUB Axle, Direct Mount Chainring, 155mm
Chainring	30 Tooth, X-Sync
Bottom Bracket	Sram DUB BSA, 73mm
Chain	Sram SX Eagle, 12-Speed, Powerlock
Rear Derailleur	Sram SX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1×12, X-Actuation 1:1
Shifter	Sram Trigger SX Eagle, 12-Speed, X-Actuation 1:1
Cassette	Sram XG-1230, 11-50Z, 12-Speed
Derailleur Hanger	Mondraker M073
Quoted Weight	16.4kg
Display	Mahle Ebikemotion
Motor	Mahle Ebikemotion X-35
Battery	Mahle Ebikemotion 250Wh, Intergrated

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
One Size	145cm (4’7”)	165cm (5’4”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	One Size
A – Seat Tube Length	350mm
B – Top Tube Length	550mm
C – Bottom Bracket Drop	-10mm
D – Bottom Bracket Height	320mm
E – Chainstay Length	420mm
F – Seat Tube Angle	71º
G – Effective Seat Tube Angle	76º
H – Head Tube Angle	67º
I – Fork Offset	39mm
J – Wheelbase	1104mm
K – Head Tube Length	90mm
L – Reach	415mm
M – Stack	545mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
