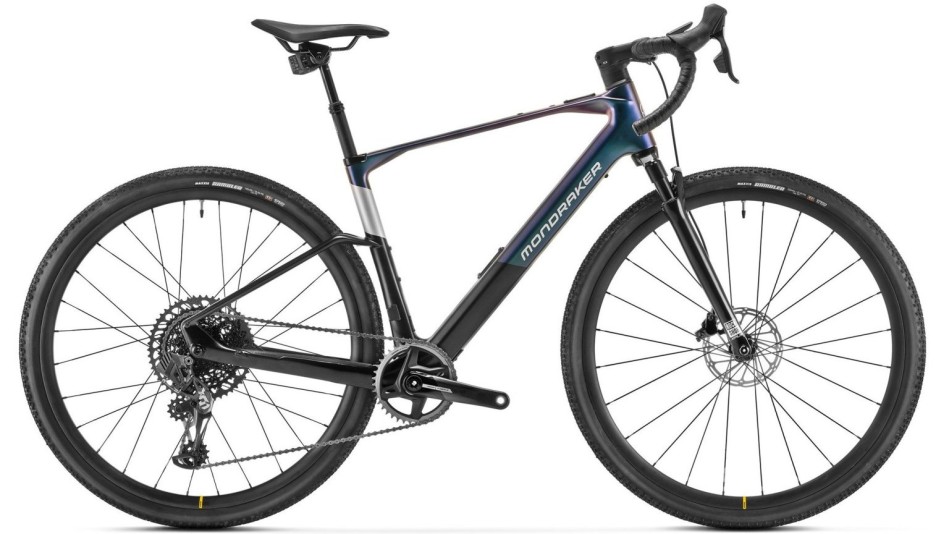

Mondraker Dusty XR 2024 eGravel Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Dusty XR, our top-of-the-range model, features an SRAM FORCE ETAP AXS 1×12 drivetrain, Mavic Allroad Pro Carbon SL carbon wheels, 45mm Maxxis Rambler EXO tires, a 40mm-travel RockShox Rudy Ultimate fork, and a RockShox Reverb XPLR AXS seatpost offering 75mm of drop.
Specification
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12×142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor |
| Fork | RockShox Rudy Ultimate, 40mm travel, 12×100mm maxle stealth, 45mm offset |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45° |
| Stem | Mondraker e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 70mm, size L: 80mm XL: 90mm |
| Handlebar | OnOff Barium gravel 18° bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
| Bartape | Barium gravel dark grey |
| Seatpost | RockShox Reverb XPLR AXS 75mm wireless 27.2×400mm dropper post |
| Saddle | Fizik Terra Argo X7 150mm |
| Front Brake | Sram Force Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one piece rotor, steel-backed organic pad |
| Rear Brake | Sram Force Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic Allroad Pro Carbon SL Disc, UST, 23mm internal width, hookless, infinity hubs, 24 spokes |
| Spokes | Steel double butted flat spokes |
| Front Hub | Mavic, 12×100mm, IS 6 bolts |
| Rear Hub | Mavic X20, 12×142mm, XD-R ID360 Ratchet system, IS 6 bolts |
| Front Tyre | Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tyre | Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Crankset | Sram Force 1 Carbon GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm |
| Chainring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Bottom Bracket | Mahle DUB pressfit, sealed bearings |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Rear Derraileur | Sram X01 Eagle AXS, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | Sram Force Etap AXS 12s, X-Actuation 1:1, single click |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh |
| Display | Pulsar One Wireless |
| Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 440 mm | 460 mm | 500 mm | 530 mm |
| B – Top Tube Length | 550 mm | 570 mm | 595 mm | 620 mm |
| C – Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| D – Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| E – Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| F – Seat Tube Angle | 74º | 74º | 74º | 74º |
| G – Effective Seat Tube Angle | 74º | 74º | 74º | 74º |
| H – Head Tube Angle | 70º | 70º | 70º | 70º |
| I – Fork Offset | 45 mm | 45 mm | 45 mm | 45 mm |
| J – Wheelbase | 1034 mm | 1056 mm | 1082 mm | 1110 mm |
| K – Head Tube Length | 125 mm | 150 mm | 175 mm | 210 mm |
| L – Reach | 393 mm | 405 mm | 424mm | 440 mm |
| M – Stack | 548 mm | 576 mm | 595 mm | 628 mm |
| N – Stem Length | 60 mm | 60 mm | 80 mm | 90 mm |
| O – Fork Height | 420 mm | 420 mm | 420 mm | 420 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
