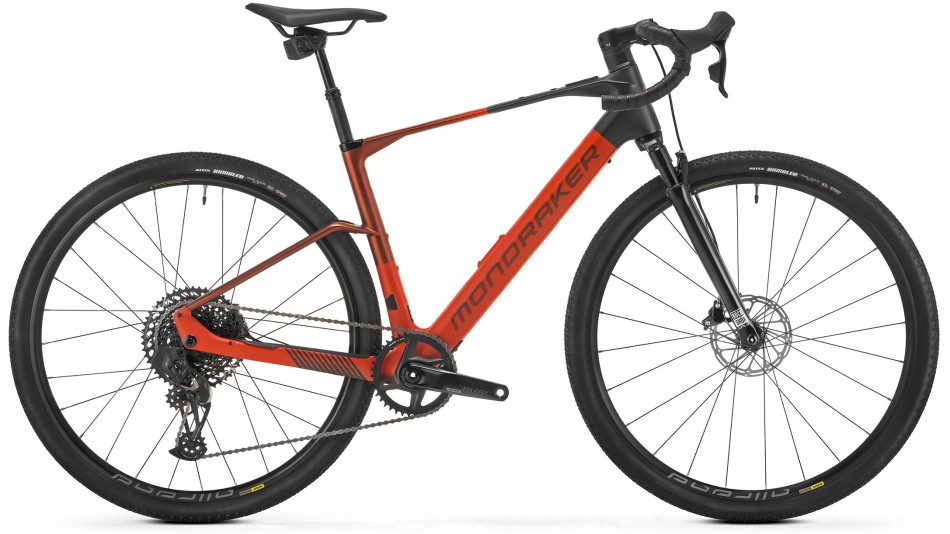

Mondraker Dusty RR 2025 eGravel Bike
Our top-of-the-line DUSTY RR comes fitted with a 40mm RockShox Rudy fork, and a 75mm Reverb XPLR AXS dropper post so you can take your DUSTY where logic tells you that you really shouldn’t.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Gravel riding on more technical terrain. We’ve designed the seatstays to offer unparalleled damping, providing significant comfort and control over technical terrain. And if that isn’t enough for you our top-of-the-line DUSTY RR comes fitted with a 40mm RockShox Rudy fork, and a 75mm Reverb XPLR AXS dropper post so you can take your DUSTY where logic tells you that you really shouldn’t.
Specification
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12×142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | RockShox Rudy Ultimate, 40mm travel, 12×100mm maxle stealth, 45mm offset |
| Headset | Onoff IS52/IS52, 1-1/8”, 1.5” head tube, sealed bearings, Internal cable routing. |
| Stem | OnOff S3 GR 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Handlebar | OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Grips | OnOff HEX Bartape |
| Seatpost | RockShox Reverb XPLR AXS 75mm wireless 27.2×400mm dropper post |
| Saddle | FIZIK Terra Argo X7 150mm |
| Front Brake | SRAM Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear |
| Spokes | Mavic Steel double butted flat spokes |
| Front Hub | Mavic, 12×100mm, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, XDR freehub |
| Front Tyre | Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tyre | Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Crankset | SRAM Rival 1 GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm |
| Chainring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide, |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram X1 Eagle AXS,12s, |
| Shifter | Sram Rival Etap AXS 12s, single click |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh |
| Display/Remote | Pulsar One Wireless |
| Quoted Weight | 14,4 kg |
| Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’4”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 460 mm | 500 mm | 530 mm | 440 mm |
| B – Top Tube Length | 570 mm | 595 mm | 620 mm | 550 mm |
| C – Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| D – Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| E – Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| F – Seat Tube Angle | 74º | 74º | 74º | 74º |
| G – Effective Seat Tube Angle | 74º | 74º | 74º | 74º |
| H – Head Tube Angle | 70º | 70º | 70º | 70º |
| I – Fork Offset | 45 mm | 45 mm | 45 mm | 45 mm |
| J – Wheelbase | 1056 mm | 1082 mm | 1110 mm | 1034 mm |
| K – Head Tube Length | 150 mm | 175 mm | 210 mm | 125 mm |
| L – Reach | 405 mm | 424 mm | 440mm | 393 mm |
| M – Stack | 576 mm | 595 mm | 628 mm | 548 mm |
| N – Stem Length | 60 mm | 70 mm | 80 mm | 60 mm |
| O – Fork Height | 420 mm | 420 mm | 420 mm | 420 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 2 |
| Intended Use | Leisure riding and trekking under moderate effort |
| Intended Terrain | Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less |
| Recommended riding skills | No special riding skills required |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
