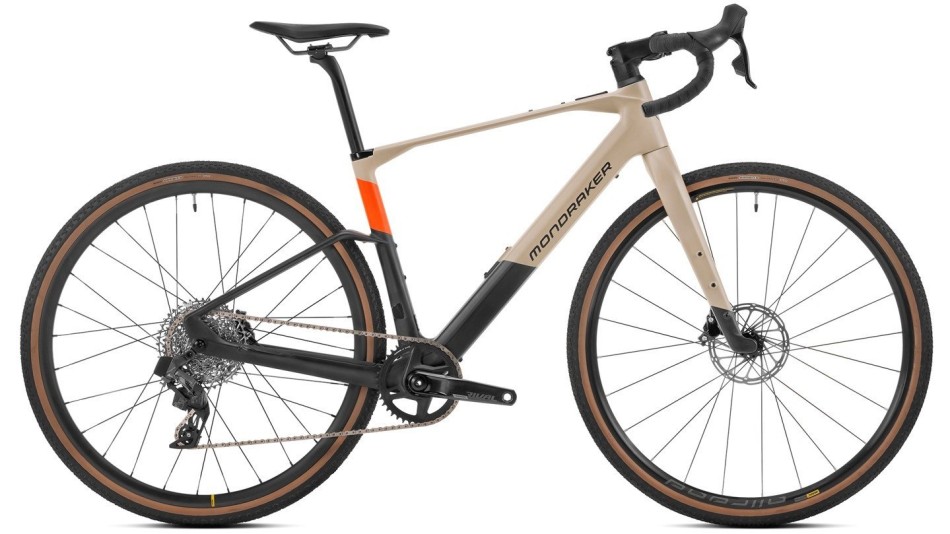

Mondraker Dusty R 2023 eGravel Bike
Dusty R comes equipped with an SRAM Rival 1x11 drivetrain, MDK-XG1 wheels, Maxxis Rambler EXO 40mm tires, and ONOFF components.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
DUSTY R comes equipped with an SRAM Rival 1×11 drivetrain, MDK-XG1 wheels, Maxxis Rambler EXO 40mm tires, and ONOFF components.
Specification
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12×142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45° |
| Stem | Mondraker e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 70mm, size L: 80mm XL: 90mm |
| Handlebar | OnOff Barium gravel 18° bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
| Bartape | Barium gravel dark grey |
| Seatpost | OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm |
| Saddle | Fizik Terra Argo X7 150mm |
| Front Brake | Sram Rival 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Rival 22, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-XG1, 23mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Fron Hub | Novatec D041, Boost 12×100mm, sealed bearings, IS 6 bolts |
| Rear Hub | Mahle X20 12×142mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Rambler 700×40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall |
| Rear Tyre | Maxxis Rambler 700×40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall |
| Crankset | Sram Rival 1 DUB GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm |
| Chainring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Bottom Bracket | Mahle DUB pressfit, sealed bearings |
| Chain | Sram PC-1110, 11s, Powerlock |
| Rear Derraileur | Sram Rival 1 11s |
| Shifter | Sram Rival 1 11s, X-Actuation 1:1, single click |
| Cassette | Sram XG-1150 10-42T, 11s |
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh |
| Display | Pulsar One Wireless |
| Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | M | L | XL | S |
| A – Seat Tube Length | 460 mm | 500 mm | 530 mm | 440 mm |
| B – Top Tube Length | 570 mm | 595 mm | 620 mm | 550 mm |
| C – Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| D – Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| E – Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| F – Seat Tube Angle | 74º | 74º | 74º | 74º |
| G – Effective Seat Tube Angle | 74º | 74º | 74º | 74º |
| H – Head Tube Angle | 70º | 70º | 70º | 70º |
| I – Fork Offset | 45 mm | 45 mm | 45 mm | 45 mm |
| J – Wheelbase | 1056 mm | 1082 mm | 1110 mm | 1034 mm |
| K – Head Tube Length | 150 mm | 175 mm | 210 mm | 125 mm |
| L – Reach | 405 mm | 424 mm | 440mm | 393 mm |
| M – Stack | 576 mm | 595 mm | 628 mm | 548 mm |
| N – Stem Length | 60 mm | 70 mm | 80 mm | 60 mm |
| O – Fork Height | 420 mm | 420 mm | 420 mm | 420 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
