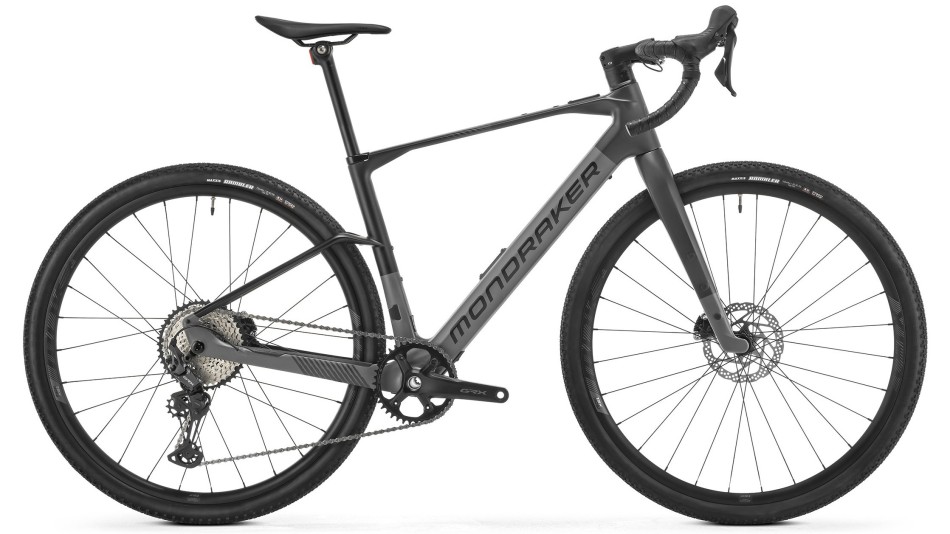

Mondraker Dusty 2025 eGravel Bike
Dusty comes equipped with an Shimano GRX 1x12 drivetrain, MDK-XG1 wheels, Maxxis Rambler EXO 45mm tires, and ONOFF components.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Medium and Large in stock now! Delivery in 2-3 working days. Other sizes shown available with Mondaraker Spain. Expect delivery within 8-9 working days of placing an order.
Dusty comes equipped with an Shimano GRX 1×12 drivetrain, MDK-XG1 wheels, Maxxis Rambler EXO 45mm tires, and ONOFF components.
Specification
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12×142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Headset | Onoff IS52/IS52, 1-1/8”, 1.5” head tube, sealed bearings, Internal cable routing. |
| Stem | OnOff S3 GR 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Handlebar | OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Grips | OnOff HEX Bartape |
| Seatpost | Onoff S3 0-R, diameter 31.6mm, length 400mm |
| Saddle | FIZIK Terra Argo X7 150mm |
| Front Brake | Shimano GRX RX-610, RX-400 caliper, RT56 IS 6 bolt rotor, resin pad |
| Rear Brake | Shimano GRX RX-610, RX-400 caliper, RT56 IS 6 bolt rotor, resin pad |
| Rims | MDK-XG1, 25mm internal width, tubeless ready, 28 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Novatec D041, Boost 12×100mm, sealed bearings, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, MS freehub |
| Front Tyre | Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tyre | Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Crankset | Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7 |
| Chainring | Shimano 40T, direct mount, steel |
| Chain | Shimano SLX M7100, Quick link |
| Rear Derrailleur | Shimano GRX RX-822-GS, 12s |
| Shifter | Shimano GRX RX-610 dual control, alloy lever |
| Cassette | Shimano SLX M7100, hiperglide+,10-45, 12s |
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh |
| Display/Remote | Pulsar One Wireless |
| Quoted Weight | 13,9 kg |
| Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’4”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 460 mm | 500 mm | 530 mm | 440 mm |
| B – Top Tube Length | 570 mm | 595 mm | 620 mm | 550 mm |
| C – Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| D – Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| E – Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| F – Seat Tube Angle | 74º | 74º | 74º | 74º |
| G – Effective Seat Tube Angle | 74º | 74º | 74º | 74º |
| H – Head Tube Angle | 70º | 70º | 70º | 70º |
| I – Fork Offset | 45 mm | 45 mm | 45 mm | 45 mm |
| J – Wheelbase | 1056 mm | 1082 mm | 1110 mm | 1034 mm |
| K – Head Tube Length | 150 mm | 175 mm | 210 mm | 125 mm |
| L – Reach | 405 mm | 424 mm | 440mm | 393 mm |
| M – Stack | 576 mm | 595 mm | 628 mm | 548 mm |
| N – Stem Length | 60 mm | 70 mm | 80 mm | 60 mm |
| O – Fork Height | 420 mm | 420 mm | 420 mm | 420 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 2 |
| Intended Use | Leisure riding and trekking under moderate effort |
| Intended Terrain | Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less |
| Recommended riding skills | No special riding skills required |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
