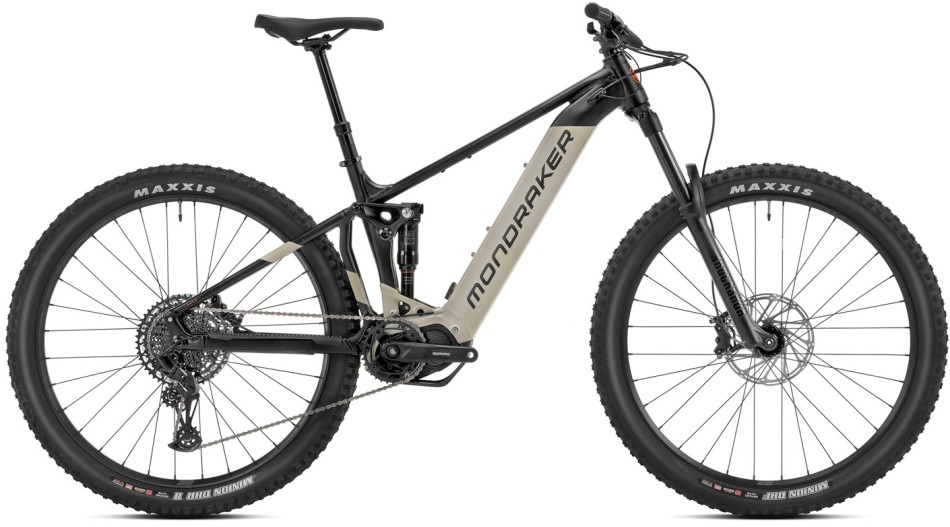

Mondraker Dusk 2023 eMTB
Descending, climbing and endless hours of singletrack, the Dusk makes it all possible.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The DUSK debuts Shimano’s all new STEPS EP600 motor offering 85Nm of torque. Fitted with a 720Wh Simplo battery and the possibility of customizing the 3 assistance modes via Shimano’s E-Tube Project app, you can optimize battery use to enjoy the longest of rides.
If you’re seriously into exploring, you can add an (optional) extra 360Wh with our range-extender battery which fits in the bottle cage, taking you up to a simply mind-blowing 1080Wh. You could pedal from sunrise to sunset on the most gorgeous tracks and trails imaginable (that’s what our enduro ebikes are for) enjoying our market leading technologies such as ZERO SUSPENSION SYSTEM and FORWARD GEOMETRY, and in this case with 160mm of suspension travel at the front and 150mm at the rear.
Freeborn’s Take
With 150mm out back and 160mm up front the new Dusk R is ready to take on whatever you can throw at it. Descending, climbing and endless hours of singletrack, the Dusk R makes it all possible.
The all aluminium frame set and sealed MAX cartridge bearing pivots are designed to be able to shrug off the worst the trails have to offer. Mondraker’s Forward geometry has a roomy reach, short stem, and steep seat tube angle giving it amazing stability when descending and great manners when climbing.
Mondraker’s Zero Suspension system is supported by a Fox DPS Performance rear air shock delivering 150mm of supple, progressive travel. Combined with a 160mm Fox 36 Rhythm, you have the capability needed for almost anything.
Equipped with the the light and powerful Shimano EP8 Motor delivering up to 85nm of torque. A 630Wh Shimano internal battery will keep you out for all but the longest rides. But if you need an extra bit of juice you can always add the optional 360Wh external battery bumping up your total capacity to 990Wh, putting even more peaks in your sights.
Braking is taken care of by Sram’s light and powerful G2 R 4 piston brakes front and rear coupled with 200mm rotors.
A Sram Eagle drivetrain gives you a wide 11-50 tooth range which will allow to keep your cadence up on even the steepest of climbs keeping the motor delivering power when you need it most.
Sealed cartridge bearing Formula Boost hubs front and rear built onto 30mm wide tubeless ready rims are clad with Maxxis DHF and DHR Exo+ tyres to keep to stuck to the trail.
Specification
| Frame | Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.*Optional external battery |
| Rear Shock | RockShox Deluxe Select R DebonAir, 205×65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | DebonAir Progressive, Light compression, Linear rebound, 1 Token |
| Fork | RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15×110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff Saturn ZS44/ZS56 tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 387×125mm, M size: 425×150mm, L/XL size: 465×170mm |
| Saddle | MDK ebike black |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Crankset | Shimano, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Others | *Optional external battery: Simplo 360Wh |
| Display | Shimano EN600 |
| Motor | Shimano STEPS EP600 |
| Battery | Simplo internal 720Wh |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Dimension | S | M | L | XL |
| A | Seat tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| B | Toptube Length | 605 mm | 625 mm | 650 mm | 670 mm |
| C | Bottom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm |
| D | Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| E | Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| F | Seat Tube Angle | 73,5° | 73,5° | 73,5° | 73,5° |
| G | Effective Seat tube Angle | 76° | 76° | 76° | 76° |
| H | Head tube Angle | 65,5° | 65,5° | 65,5° | 65,5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1225 mm | 1245 mm | 1265 mm | 1285 mm |
| K | Head tube Length | 110mm | 110mm | 130mm | 130 mm |
| L | Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| M | Stack | 622 mm | 622 mm | 640 mm | 640 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
