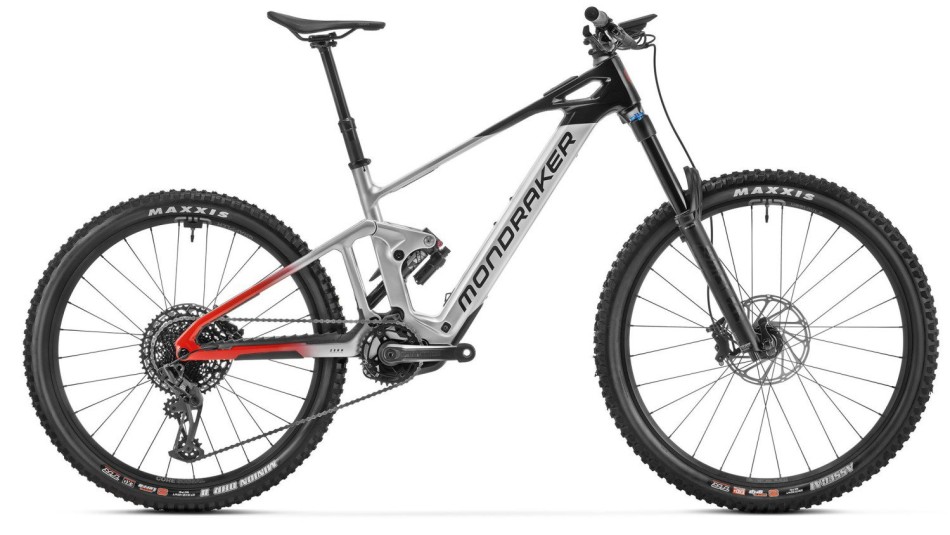

Mondraker Dune R 2024 Silver/Red Light eMTB

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

The entry level DUNE R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.

To get the absolute best out of this long travel eMTB we honed the kinematics to get the progression we were looking for throughout the shock’s stroke, while never losing track of the anti-squat and anti-rise values we needed to make the bike as dynamic and efficient as desired.

DUNE has been designed around our Forward Geometry philosophy, with generous reach figures providing greater stability and confidence at high speed so you can get on with planning your next line. Both the DUNE R and DUNE RR have a 64° head angle (which drops to 63.6° on the DUNE XR), steeper effective seat angles to keep your weight centred on the climbs and 445mm chainstays to strike the right balance between stability and agility when combined with a mixed wheel setup.

Video

Specification

Frame	Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock	Fox Float X Performance EVOL, 505×65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings
Shock Settings	Medium compression, medium rebound, air volume spacer 0.4
Fork	FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset	Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem	Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar	Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	Onoff Desert, 1lock-on, 135mm
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
Saddle	Fizik Terra Aidon Slim X5
Front Brake	Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake	Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rims	e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27’‘5 rear
Front Hub	e*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Boost 12×148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Front Tyre	Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60×2TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 27’5×2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2×120TPI, folding bead
Crankset	E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Chainring	Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals	N/A
Chain	Sram NX Eagle, 12s, Powerlock
Rear Derrailleur	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
Shifter	Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette	Sram PG-1230, 11-50T, 12s
Motor	Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery	Bosch Compact Powertube 400Wh
Charger	Bosch Smart System
Display	Bosch System Controller / Bosch Kiox 500
Remote	Bosch Mini Remote
Derailleur Hanger	Sram UDH
Quoted Weight	19.9kg
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A Seat Tube Length	380mm	420mm	450mm	490mm
B Top Tube Length	600mm	620mm	645mm	665mm
C Bottom Bracket Drop	-21/0mm	-21/0mm	-21/0mm	-21/0mm
D Bottom Bracket Height	352mm	352mm	352mm	352mm
E Chainstay Length	445mm	445 mm	445mm	445mm
F Seat Tube Angle	74,0º	74,0º	74,0º	74,0º
G Effective Seat Tube Angle	77,5°	77,5°	77,5°	77,5°
H Headtube Angle	64º	64º	64º	64º
I Fork Offset	44mm	44mm	44mm	44mm
J Wheelbase	1232mm	1260mm	1285mm	1309mm
K Head Tube Length	100mm	110mm	130mm	140mm
L Reach	445mm	465mm	485mm	505mm
M Stack	621mm	630mm	648mm	658mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
