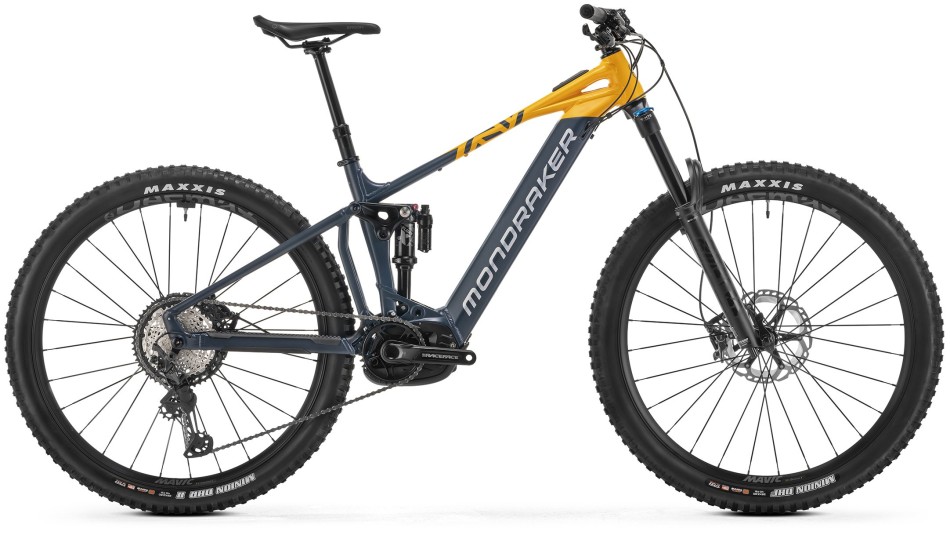

Mondraker Crafty Race 2025 eMTB
Descending, climbing and endless hours of singletrack, the Crafty Race makes it all possible.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Touring Hybrid Pro 625 2024 Easy Entry Black/Metal eBike
Starting at: £1,999.99
-
Quarq Shockwiz Suspension Tuning System
RRP: £331.00
Our price £284.99
-
Wheels Manufacturing Replaceable Derailleur Hanger / Dropout 13
RRP: £38.99
Our price £2.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Available in three different colors, the CRAFTY Race rocks our ZERO suspension system kinematics which provides a super supple suspension action while at the same time not wasting any energy in the process.
It’s one of our priorities when it comes to our bikes. What’s more, the bike’s really agile on the trail which is much-needed in an eMTB. It all adds up to maximum fun and excellent value for money.
It comes complete with Bosch’s Performance CX Race motor, the all-new Mini Remote control and integrated System Controller. The CRAFTY Race is the most competitive total enduro ebike out there.
Specification
| Frame | Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Rear Shock | Fox Float-X LV Performance, 205×65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | medium compression, medium rebound, air volume spacer 0.2 |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm |
| Saddle | Ergon SM-10 |
| Front Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Rear Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, MS freehub |
| Front Tyre | Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Crankset | Race Face Aeffect-R ebike, 160mm |
| Chainring | Race Face, 34T, steel, direct mount |
| Chain | Shimano XT M8100, 12s |
| Rear Derrailleur | Shimano XT M8100, SGS, Shadow+ |
| Shifter | Shimano XT M8100, Rapid Fire Plus, 12s |
| Cassette | Shimano XT M8100 10-51T Hyperglide+, 12s |
| Motor | Bosch Performance Line CX-Race (25Km/h) GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 750Wh |
| Display/Remote | Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Quoted Weight | 25,2 kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| B – Toptube Length | 605mm | 625mm | 650mm | 670mm |
| C – Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D – Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E – Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| F – Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G – Effective Seat Tube angle | 76° | 76° | 76° | 76° |
| H – Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K – Headtube length | 110mm | 110mm | 130mm | 130mm |
| L – Reach | 450mm | 470mm | 490mm | 510mm |
| M – Stack | 622mm | 622mm | 640mm | 640mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
